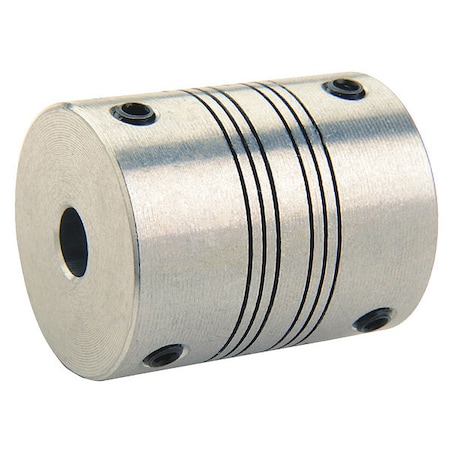

MWS25-9-8-A, 9mm x 8mm Four Beam Coupling, Aluminum | Ruland

Ruland . MWS25-9-8-A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute009 mm
Attribute018 mm
Attribute02, Attribute0311.7 mm
Attribute0425.0 mm
Attribute05+0.025 mm / -0.000 mm
Attribute0624.0 mm
Attribute07+0.000 mm / -0.013 mm
Attribute08M4
Attribute09Alloy Steel
Attribute102.0 mm
Attribute11Black Oxide
Attribute121.76 Nm
Attribute134 ea
Attribute140.78 Nm
Attribute153.0°
Attribute161.55 Nm
Attribute170.38 mm
Attribute183.10 Nm
Attribute190.25 mm
Attribute201.75 Deg/Nm
Attribute212.955 x10
Attribute226,000 RPM
Attribute23, Attribute24Yes
Attribute277075-T651 Extruded and Drawn Aluminum Bar
Attribute28-40°F to 225°F (-40°C to 107°C)
Attribute29Bright, No Plating
Attribute30Ruland Manufacturing
Attribute31USA
Attribute32, Weight0.055400
Attribute33634529130834
Attribute348483.60.8000
Attribute3531163003
Attribute36Torque ratings are at maximum misalignment.
Attribute37Performance ratings are for guidance only. The user must determine suitability for a particular application.
Attribute38Torque ratings for the couplings are based on the physical limitations/failure point of the machined beams. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the machined beams. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the machined beams. Please consult technical support for more assistance.
AttributeKey00Bore (B1)
AttributeKey01Small Bore (B2)
AttributeKey02B1 Max Shaft Penetration
AttributeKey03B2 Max Shaft Penetration
AttributeKey04, height_Attrib, width_AttribOuter Diameter (OD)
AttributeKey05Bore Tolerance
AttributeKey06, length_AttribLength (L)
AttributeKey07Recommended Shaft Tolerance
AttributeKey08Forged Set Screw
AttributeKey09Screw Material
AttributeKey10Hex Wrench Size
AttributeKey11Screw Finish
AttributeKey12Seating Torque
AttributeKey13Number of Screws
AttributeKey14Dynamic Torque Reversing
AttributeKey15Angular Misalignment
AttributeKey16Dynamic Torque Non-Reversing
AttributeKey17Parallel Misalignment
AttributeKey18Static Torque
AttributeKey19Axial Motion
AttributeKey20Torsional Stiffness
AttributeKey21Moment of Inertia
AttributeKey22Maximum Speed
AttributeKey23Full Bearing Support Required?
AttributeKey24Zero-Backlash?
AttributeKey25Torque Wrench
AttributeKey26Recommended Hex Key
AttributeKey27Material Specification
AttributeKey28Temperature
AttributeKey29Finish Specification
AttributeKey30Manufacturer
AttributeKey31Country of Origin
AttributeKey32, Weight_AttribWeight (lbs)
AttributeKey33UPC
AttributeKey34Tariff Code
AttributeKey35UNSPC
AttributeKey36Note 1
AttributeKey37Note 2
AttributeKey38Note 3
AttributeKey39Prop 65
DimensionUnitmm
Extra Product NameMWS25-9-8-A, 9mm x 8mm Four Beam Coupling, Aluminum | Ruland
WeightUnitlbs
diameter, height, width25.0
keywordsMWS25-9-8-A, Beam Coupling, Four Beam Coupling
length24.0
moq, multiple, tierMinQty11
MPN, SKUMWS25-9-8-A
qtyInStock0
snippetRuland part number MWS25-9-8-A is an aluminum four beam coupling with 9mm x 8mm bores. Download a 2D/3D CAD file or purchase the MWS25-9-8-A directly from the manufacturer.
tierMinQty210
tierMinQty325
tierMinQty450
tierPrice151.55
tierPrice246.86
tierPrice339.06
tierPrice435.14

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandMWS25-9-8-A111 @ $51.55, 10 @ $46.86, 25 @ $39.06, 50 @ $35.14
cbtcompany.comMWS25-9-8-A11
ZoroG7087512111 @ $40.00
Applied Industrial11082228411
Digi-Key1359875311011 @ $70.35
motionindustries.com06264081111 @ $69.24
