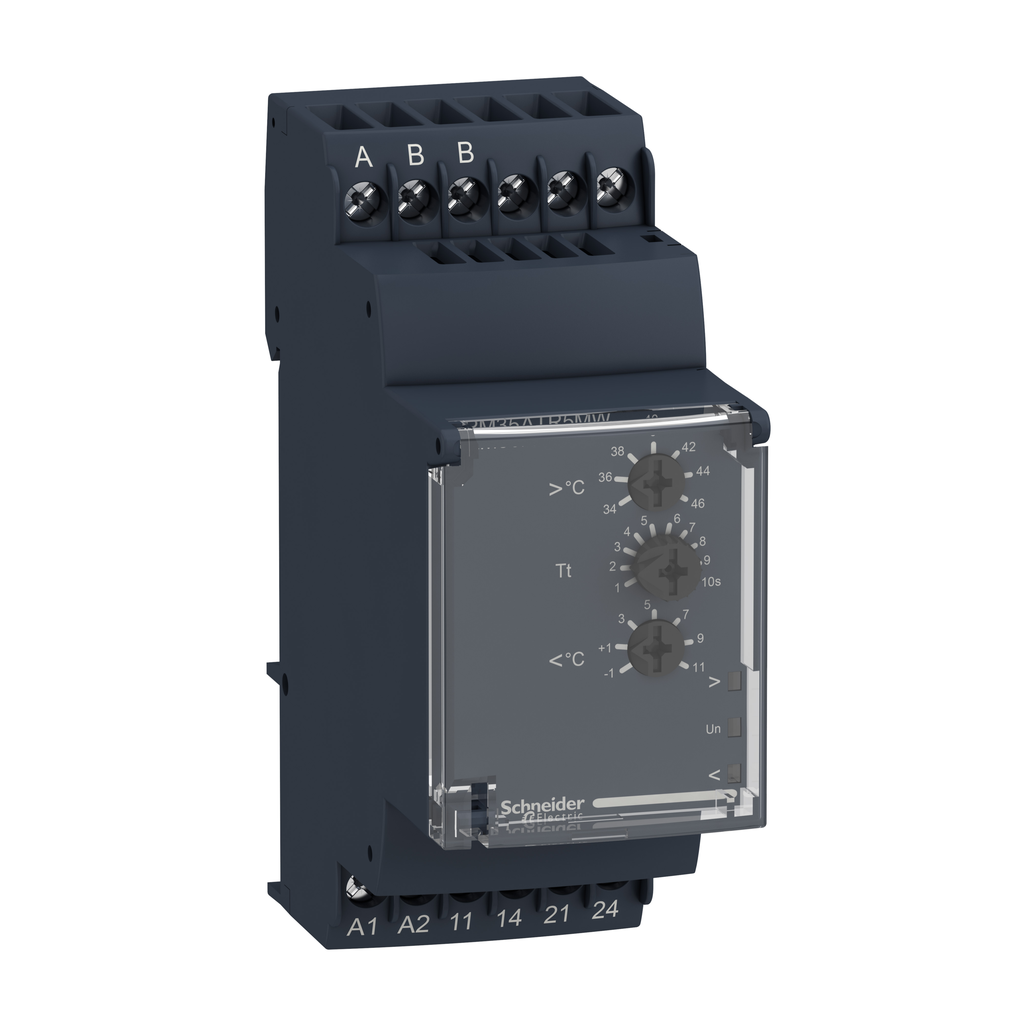

Harmony, Modular temperature control relay, 5 A , 2 NO, 24..240 V AC/DC | Mayer Electric

Mayer Electric Supply . RM35ATR5MW

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Attribute0010 mA 5 V DC
Attribute01Harmony Control Relays
Attribute021250 VA
Attribute03temperature control relay
Attribute04AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Attribute05RM35AT
Attribute060.1...10 s adjustable 0...10 % of the full scale value)
Attribute07temperature control relays
Attribute08for elevator machine rooms and 3-phase supplies
Attribute09-1...11?C
Attribute103.5 VA AC
Attribute1118 months
Attribute12Pt 100 - 3-wire
Attribute13> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Attribute1424...240 V AC/DC
Attribute151 LED Green power ON || 1 LED Yellow correct temperature (high R1) || 1 LED Yellow correct temperature (low R2)
Attribute162 NO
Attribute17cadmium free
Attribute188 s
Attribute1973/23/EEC
Attribute20any position without derating
Attribute21250 V AC/DC
Attribute22screw terminals, 1 x 0.5...1 x 4 mm? AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm? AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm? AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm? AWG 24...AWG 16) flexible with cable end
Attribute23250 V IEC 60664-1
Attribute24III IEC 60664-1
Attribute25galvanic insulation between supply and measurement
Attribute2620.4-264 V AC || 21.6-264 V DC
Attribute2735 mm symmetrical DIN rail conforming to EN/IEC 60715
Attribute285 A
Attribute2930000000 cycles
Attribute30self-extinguishing plastic
Attribute311.33 kOhm temperature
Attribute3210 % + 10 % Un DC || - 15 % + 10 % Un AC
Attribute33+/- 2 ?C
Attribute3435 mm
Attribute350.6-1 N.m IEC 60947-1
Attribute360.6 W DC
Attribute37100000 cycles
Attribute380.2 s
Attribute3950/60 Hz +/- 10 %
Attribute40, Attribute41Yes
Attribute42ENVPEP1504008EN
Attribute43Green Premium product
Attribute44Reference contains Substances of Very High Concern above the threshold
Attribute45Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute46The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute47X
Attribute48ENVEOLI1504008EN
Attribute49Pro-active compliance (Product out of EU RoHS legal scope)
Attribute50GL || GOST || C-tick || CSA || UL
Attribute51-20-50 ?C
Attribute52IEC 60255-6 || NF EN 60255-6
Attribute5310 ms
Attribute542 kV AC 50 Hz, 1 min
Attribute55emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Attribute5615 gn 11 ms IEC 60255-21-1
Attribute570.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Attribute58IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Attribute593 IEC 60664-1
Attribute60-40-70 ?C
Attribute614 kV
AttributeKey00Minimum Switching Current
AttributeKey01Range Of Product
AttributeKey02Switching Capacity In Va
AttributeKey03Product Or Component Type
AttributeKey04Utilisation Category
AttributeKey05Relay Name
AttributeKey06Time Delay Range
AttributeKey07Relay Type
AttributeKey08Product Specific Application
AttributeKey09Relay Monitored Parameters : overtemperature: 34...46?C || undertemperature
AttributeKey10Maximum Power Consumption In Va
AttributeKey11Warranty
AttributeKey12Temperature Probe Type
AttributeKey13Insulation Resistance
AttributeKey14[Us] Rated Supply Voltage
AttributeKey15Status Led
AttributeKey16Output Contacts
AttributeKey17Contacts Material
AttributeKey18Reset Time
AttributeKey19Marking : CE : EMC 89/336/EEC || CE
AttributeKey20Operating Position
AttributeKey21Maximum Switching Voltage
AttributeKey22Connections - Terminals
AttributeKey23[Ui] Rated Insulation Voltage
AttributeKey24Overvoltage Category
AttributeKey25Insulation
AttributeKey26Supply Voltage Limits
AttributeKey27Mounting Support
AttributeKey28Nominal Output Current
AttributeKey29Mechanical Durability
AttributeKey30Housing Material
AttributeKey31Resistance Across Terminals
AttributeKey32Control Circuit Voltage Limits
AttributeKey33Measurement Accuracy
AttributeKey34, width_AttribWidth
AttributeKey35Tightening Torque
AttributeKey36Maximum Power Consumption In W
AttributeKey37Electrical Durability
AttributeKey38Run-Up Delay At Power-Up
AttributeKey39Supply Frequency
AttributeKey40Rohs Exemption Information
AttributeKey41Mercury Free
AttributeKey42Environmental Disclosure
AttributeKey43Sustainable Offer Status
AttributeKey44Reach Regulation
AttributeKey45California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey46Weee
AttributeKey47China Rohs Regulation
AttributeKey48Circularity Profile
AttributeKey49Eu Rohs Directive
AttributeKey50Product Certifications
AttributeKey51Ambient Air Temperature For Operation
AttributeKey52Standards
AttributeKey53Immunity To Microbreaks
AttributeKey54Dielectric Test Voltage
AttributeKey55Electromagnetic Compatibility
AttributeKey56Shock Resistance
AttributeKey57Vibration Resistance
AttributeKey58Ip Degree Of Protection
AttributeKey59Pollution Degree
AttributeKey60Ambient Air Temperature For Storage
AttributeKey61Non-Dissipating Shock Wave
DimensionUnitmm
Extra Product NameHarmony, Modular temperature control relay, 5 A , 2 NO, 24..240 V AC/DC | Mayer Electric
UPC785901505440
jsonUrlData/Product/SQUARE-D-Temperature-control-relay-RM35-A-24-240-V-AC-DC-2-NO-785901505440
jsonUrlData2c8a2d358-fe07-406e-8cd4-abde00f808b5
moq, multiple, tierMinQty11
MPNRM35ATR5MW
qtyInStock0
SKUSQDRM35ATR5MW
tierPrice1155.63
width35.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDRM35ATR5MW111 @ $155.63
