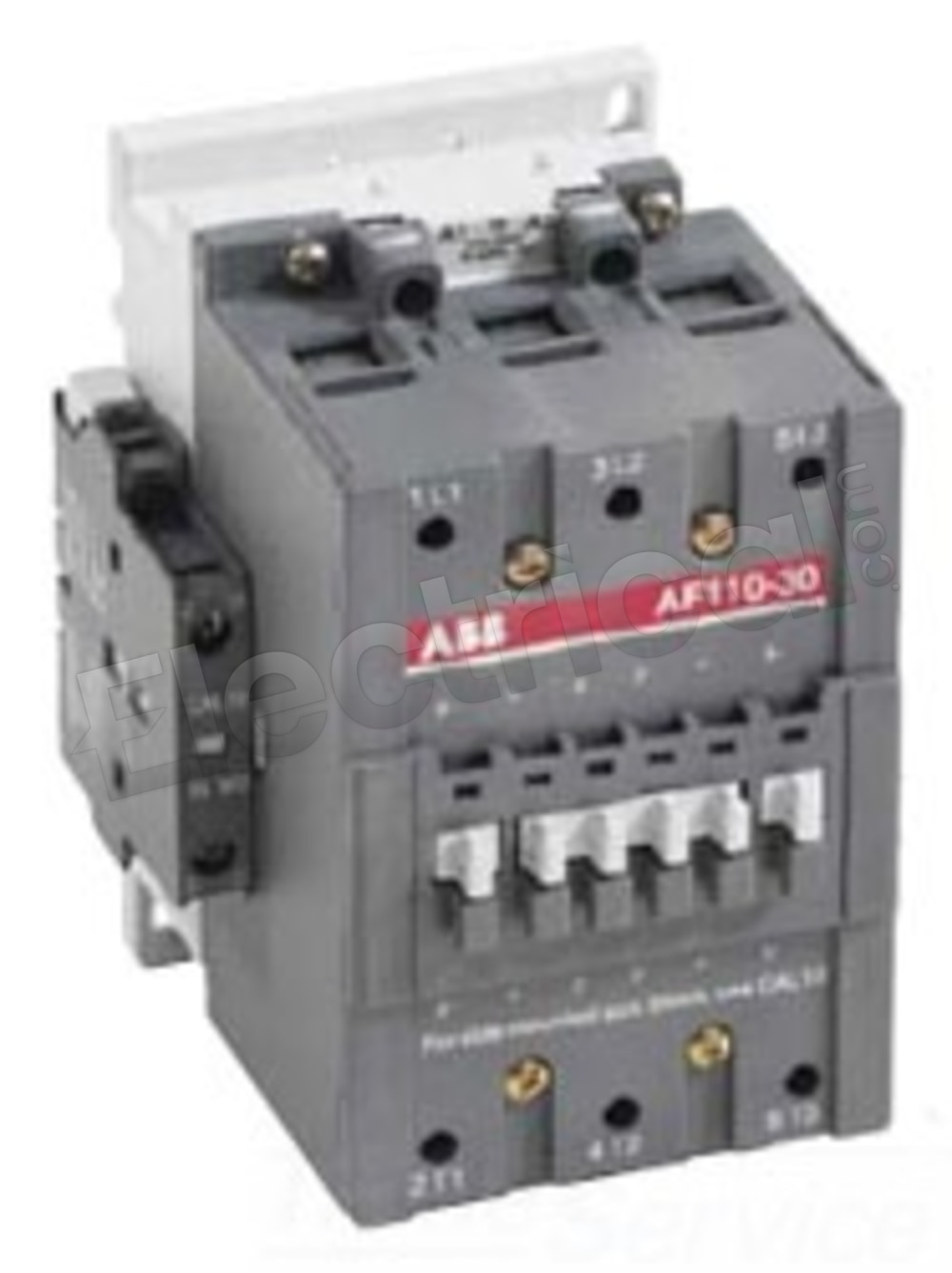

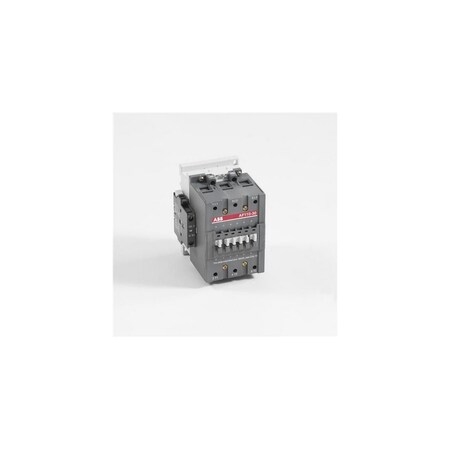

ABB - AF110-30-11-70 - Contactor, Non-Reversing, 100-240VAC/VDC Coil, 110A, 1NO/1NC Aux., AF110 Series - RS

ABB AF110-30-11-70 A LINE, (95-300), 3-POLE AF110,3PH CONTR,100-250V AC/DC

ABB A-Line non-reversing 3-pole contactor has 100 - 250 VAC/VDC coil voltage and 110 A load current with a power rating of 30 hp at 208 VAC 3-phase. Brand Name|ABB#MFR Part Number|AF110-30-11-70#UPC|662019870786#UNSPSC|39121529#Item|Contactor#Type|Non-Reversing#Series|A-Line, AF110#Coil Voltage|100 - 250 VAC/VDC#Full Load Current|110 A at 3-Phase, 140 A at 1-Phase#Power Rating|30 hp at 208 VAC 3-Phase, 40 hp at 240 VAC 3-Phase, 75 hp at 480 VAC 3-Phase, 100 hp at 575/600 VAC 3-Phase#Number of Poles|3#Frequency Rating|50/60 Hz#Contact Form|1 NO - 1 NC#Terminal Type|Screw#Enclosure Type|NEMA 4, 8#Mounting Type|Snap-On DIN-Rail#Dimensions|5.83 in Height x 4.02 in Width x 4.86 in Depth#Standard/Approvals|CE Certified, CSA LR19700, IEC Approved, UL E79416#Application|For controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC

Part Number: 662019870786 <br> Part: ABB AF110-30-11-70 Contactor, 150A, 3P, 100-250v AC/DC <br> 150 Amp, 3 Pole, Non-reversing Across the Line Contactor With 100-250v Ac/dc Coil With 1 No And 1 Nc Auxiliary Contacts <br> Family / Style: A-Line <br> Type: Contactor, IEC, Non-Reversing <br> Volts AC Control Range: 100 - 250 <br> Volts DC Control Range: 100 - 250 <br> Also known as: 662019870786, ABBAF110301170, ABB, AF110-30-11-70, DC Operating IEC Contactors, NEMA & IEC Contactors, Starters & Contactors, Control, Automation <br> Equivalent to: <ul></ul>
