IDVSNM3665T 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0643M, TENV, F1

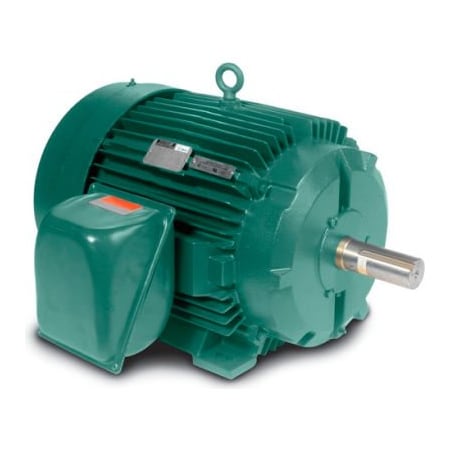

Baldor Electric, IDVSNM3665T, 5HP, 1750RPM, 3PH, 460V;230V, 184TC Frame, C-Face Flange, Foot Mount, TENV, Inverter Duty Motor

Baldor IDVSNM3665T5HP1755RPM3PH60HZ184TCTENVFOOT

<p><b>Specifications: </b><ul><li>Motor Category:-Inverter Duty Motor </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-5.00 hp, 5 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-230/460 V </li><li> Frame Size:-184TC </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed </li><li> Thermal Protection:-Thermostat </li><li> Full Load Current:-6.40 A </li><li> Full Load Efficiency:-89.50 % </li><li> Amps @ Voltage:-6.6 A @ 460 V; 13.2 A @ 230 V </li><li> Volts @ Frequency:-230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-1.13 in </li><li> Overall Length (C-Dimension):-17.85 in </li><li> Service Factor:-1.00 </li><li> Frame Material:-Cast Iron </li><li> Insulation Class:-F </li><li> Standards Met:-UR, CSA </li><li> Harmonization Code:-8501.52.4000 </li><li> Weight:-146.00 lbs </li><li> Applications:-Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range. </li><li> Additional Details:-Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required. Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing. Meets NEMA MG 1, Part 31. Continuous constant torque to zero speed. </li></ul></p>

THIS LISTING IS FOR (1) PIECE: IDVSNM3665T 5HP,1750RPM,3PH,60HZ,184TC,0642M,TENV,F1 ABB - BALDOR UPC- 781568465578 - FACTORY NEW!
