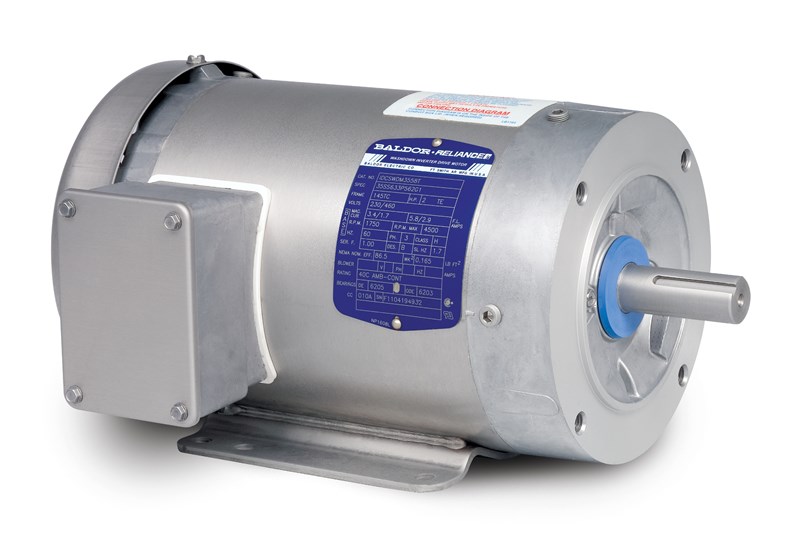

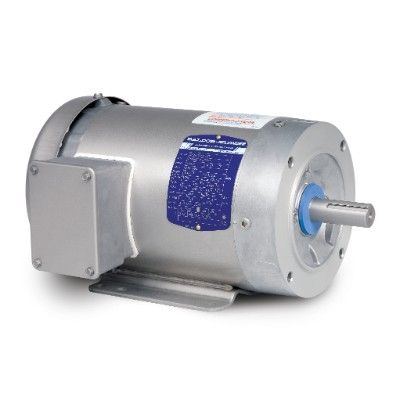

Baldor, IDCSWDM3611T, 3HP, Washdown Vector Duty Motor

230/460 Volts3.00 hp Output1800 RPMThree PhaseTEFC Enclosure182TC Frame Size4.00 A FL Amps89.5 % FL EfficiencyC-Face Drive End Flange TypeMounting: Foot Mounted

Baldor Electric, IDCSWDM3611T, 3HP, 1760RPM, 3PH, 460V;230V, 182TC Frame, C-Face Flange, Foot Mount, TEFC, Washdown Vector Duty Motor

Baldor IDCSWDM3611T3HP 1760RPM 3PH 60HZ 182TC 3628MTEFC F1

BALDOR-RELIANCE WASHDOWN MOTOR IDCSWDM3611T, 3 PHASE, 3 HP, 1760 RPM, 230/460 VOLTS, TENV, 182TC FR BALDOR-RELIANCE'S WASHDOWN DUTY MOTORS ARE AVAILABLE FROM STOCK IN SINGLE AND THREE PHASE AC AND IN DC DESIGNS. HORSEPOWERS RANGE FROM 1/2 TO 20. DESIGN

<p><ul><li>Includes all the advantages of our standard \&q;Paint Free\&q; washdown duty motors<li>Specifically designed and built for use on variable frequency drives<li>Meets NEMA MG 1, Part 31<li>Standard efficiency<li>Applications: Conveyors, Pumps and other equipment in food processing and other severe environments where motors are \&q;washed\&q; on a regular basis. For adjustable speed applications not requiring full torque at zero speed</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Category:-Inverter Duty Motor (Paint Free) <li> Motor Phase:-3 ph <li> Motor Horsepower:-3.00 hp, 3 hp <li> Synchronous RPM:-1800 rpm <li> Motor Supply Voltage:-230/460 V <li> Frame Size:-182TC <li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) <li> Frequency Rating:-60 Hz <li> Duty / Condition Type:-Continuous Duty <li> Mounting Type:-Footed/C-Face Flange <li> Full Load Current:-4.00 A <li> Full Load Efficiency:-89.50 % <li> Amps @ Voltage:-8.8 A @ 208 V; 8.4 A @ 230 V; 4.2 A @ 460 V <li> Volts @ Frequency:-230 V @ 60 Hz; 460 V @ 60 Hz <li> Shaft Diameter:-1.13 in <li> Overall Length (C-Dimension):-18.06 in <li> Service Factor:-1.00 <li> Frame Material:-Stainless Steel <li> Insulation Class:-H <li> IP Rating:-55 <li> Standards Met:-UL, UR, CSA EEV, CE, CSA, CCSA US <li> Harmonization Code:-8501.52.4000 <li> Weight:-74.00 lbs <li> Applications:-Conveyors, pumps and other equipment in food processing and severe environments where motors receive washdown on a regular basis. <li> Additional Details:-Includes all the advantages of our standard “Paint Free” washdown duty motors. Specifically designed and built for use on adjustable speed drives. For adjustable speed applications not requiring full torque at zero speed. Not encoder adaptable. 1.00 Service Factor. Class “H” insulated. 2700 RPM constant Hp speed. Includes phase insulation and thermostats. </li></ul></p>
