Order GFC77A-VFN2-A0-3ME-60-SS by Aalborg GFC Thermal Mass Flow Controller - US Mega Store

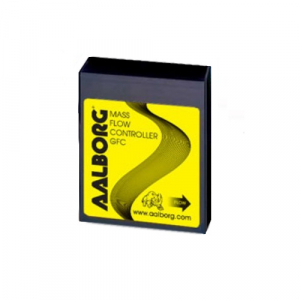

Aalborg . GFC77A-VFN2-A0-3ME-60-SS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAalborg
Attribute00, Attribute18EN 55011 class 1, class B; EN50082-1
Attribute01, Attribute19Circuit boards have built-in polarity reversal protection. Resettable fuses provide power input protection
Attribute02, Attribute20No greater than +15 degree rotation from horizontal to vertical calibration is in horizontal position
Attribute03, Attribute2140:1
Attribute04, Attribute2225 psig (1.73 bars)
Attribute05, Attribute230.01% of full scale / psi (0.07 bar)
Attribute06, Attribute240.15% of full scale / °C
Attribute07, Attribute25Generally 2 seconds to within ±2% of actual flow rate over 25 to 100% of full scale
Attribute08, Attribute26±0.25% of full scale
Attribute09, Attribute27Performed at standard conditions [14.7 psia (101.4 kPa) and 70 °F (21.1 °C)]
Attribute10, Attribute28Aluminum
Attribute11, Attribute29Viton-A
Attribute12, Attribute303/4" FNPT
Attribute13, Attribute31No Display
Attribute14, Attribute3212 VDC
Attribute15, Attribute33Local 0-5 VDC
Attribute16, Attribute34None
Attribute17, Attribute35Methyl Chloride CH3Cl
AttributeKey00, AttributeKey18CE Compliant
AttributeKey01, AttributeKey19Circuit Protection
AttributeKey02, AttributeKey20Attitude Sensitivity
AttributeKey03, AttributeKey21Turndown Ratio
AttributeKey04, AttributeKey22Optimum Gas Pressure
AttributeKey05, AttributeKey23Pressure Coefficient
AttributeKey06, AttributeKey24Temperature Coefficient
AttributeKey07, AttributeKey25Response Time
AttributeKey08, AttributeKey26Repeatability
AttributeKey09, AttributeKey27Calibrations
AttributeKey10, AttributeKey28Material
AttributeKey11, AttributeKey29Seals
AttributeKey12, AttributeKey30Fittings
AttributeKey13, AttributeKey31Display
AttributeKey14, AttributeKey32Power
AttributeKey15, AttributeKey33Input/Output Signal
AttributeKey16, AttributeKey34Digital Interface
AttributeKey17, AttributeKey35Gas
CategoryL1Process Control & Automation
CategoryL2Controllers
CategoryL3Flow
CategoryL4Aalborg GFC77A-VFN2-A0-3ME-60-SS
ConditionNEW
Extra Product NameOrder GFC77A-VFN2-A0-3ME-60-SS by Aalborg GFC Thermal Mass Flow Controller - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUGFC77A-VFN2-A0-3ME-60-SS
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Aalborg, GFC77A-VFN2-A0-3ME-60-SS, GFC Thermal Mass Flow Controller Aluminum, Viton-A Seals, 3/4" FNPT, No Display, 12 VDC Power, Local 0-5 VDC Input/Output Signal, Methyl Chloride CH3Cl 0-500, L/Min, 14.7 psia Metering Pressure, 21.1 Deg C / 70 Deg F Temperature </p> </strong> <p><strong>GFC mass flow controller </strong> </p> <p>Model GFC thermal Mass Flow Controllers are designed to indicate and control set flow rates of gases. The GFC combines the characteristics, and accuracy of conventional mass flow devices into a unique compact design at low costs previously unattainable. Zero and span adjustments are accessible from the outside of transmitters. </p> <p><strong>Principles of Operation </strong> </p> <p>Metered gases are divided into two laminar flow paths, one through the primary flow conduit, and the other through a capillary sensor tube. Both flow conduits are designed to ensure laminar flows and therefore the ratio of their flow rates is constant. Two precision temperature sensing windings on the sensor tube are heated, and when flow takes place, gas carries heat from the upstream to the downstream windings. The resultant temperature differential is proportional to the change in resistance of the sensor windings. A Wheatstone bridge design is used to monitor the temperature dependent resistance gradient on the sensor windings which is linearly proportional to the instantaneous rate of flow. The closed loop control circuit continuously monitors the mass flow output and maintains it at the set flow rate. Flow rates are unaffected by temperature and pressure variations within stated limitations. </p> <p><strong>General Description </strong> </p> <p>Compact, self contained GFC mass flow controller is designed to indicate and control flow rates of gases. The rugged design coupled with instrumentation grade accuracy provides versatile and economical means of flow control. The valve is normally closed as a safety feature to ensure that gas flow is shut off in case of a power outage. These controllers may be used as benchtop units or mounted by means of screws in the base. Transducer power supply ports are fuse and polarity protected. </p>
tierPrice12071

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comGFC77A-VFN2-A0-3ME-60-SS12 Weeks Factory Lead Time11 @ $2071.00
MegadepotGFC77A-VFN2-A0-3ME-60-SS111 @ $2071.00
heavydutydepot.comGFC77A-VFN2-A0-3ME-60-SS111 @ $2071.00
