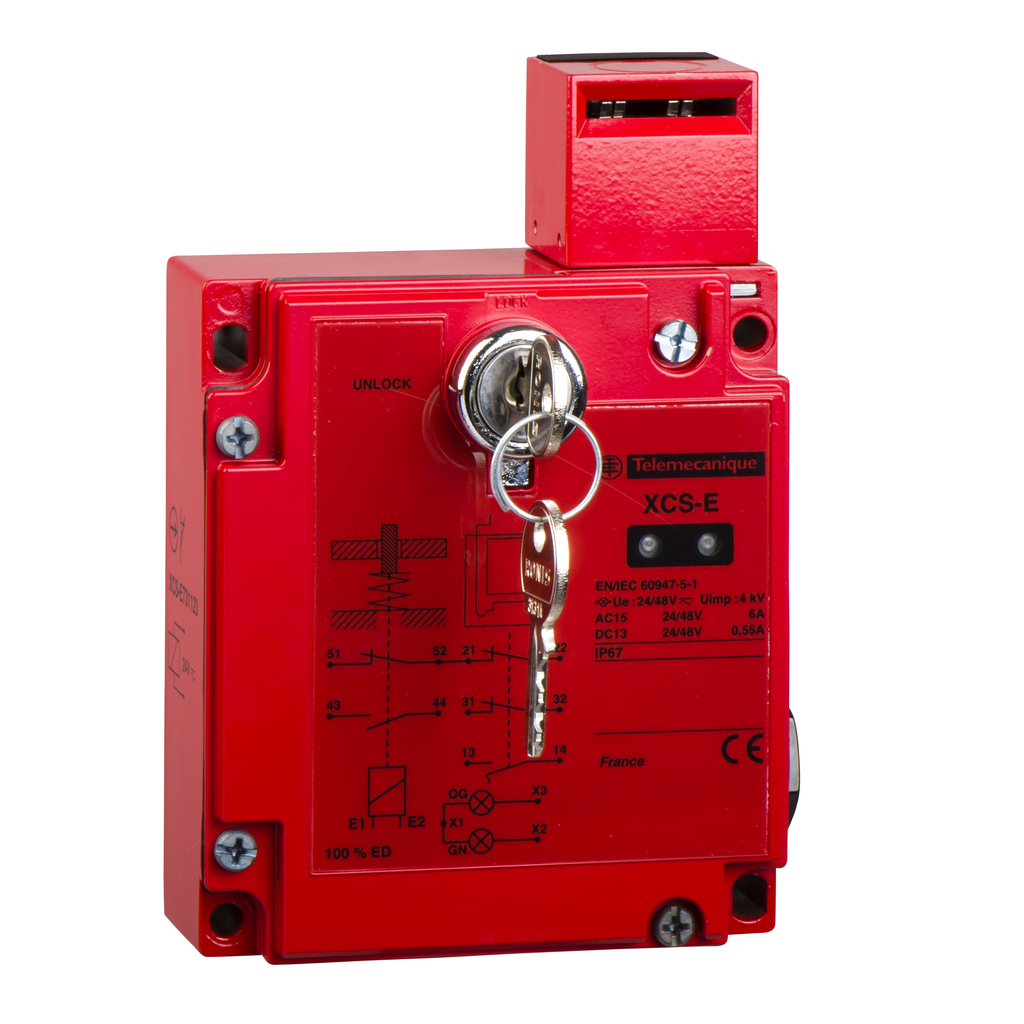

Safety switch, Telemecanique Safety switches XCS, interlock 240 VAC 5 A t XCS special | Mayer Electric

SQUARE D . XCSEREQ3492G2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00220/240 V - 20...10 %
Attribute013 NC
Attribute02Telemecanique Safety switches XCS
Attribute032 entries tapped 1/2" NPT
Attribute04terminal 1 x 0.5...2 x 1.5 mm? with or without cable end
Attribute05with interlocking, locking by solenoid
Attribute06slow-break, simultaneous
Attribute07for guard open/guard closed and locked 2 LEDs (green or orange)
Attribute081 NC + 1 NO slow-break, simultaneous)
Attribute09locking on energisation and unlocking on de-energisation of solenoid
Attribute10safety switch
Attribute11110/240 V 95...264 V)
Attribute12XCSE
Attribute13metal
Attribute14rectangular
Attribute153
Attribute16key operated turret head
Attribute17146-146 mm
Attribute1810 cyc/mn for maximum durability
Attribute19250 VEN/IEC 60947-1 signalling circuit
Attribute2010 A cartridge fuse gG (gl)
Attribute21with NC contact
Attribute22, moq, multiple, tierMinQty11
Attribute230.01 m/s
Attribute240.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
Attribute257 mA
Attribute2620 N
Attribute271000000 cycles
Attribute280.5 m/s
Attribute29, Attribute37zamak
Attribute306 A
Attribute31B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Attribute3210 VA inrush || 10 VA sealed
Attribute33AC/DC
Attribute3498 mm
Attribute352000 N
Attribute3644 mm
Attribute38AC
Attribute39overvoltage protection signalling circuit
Attribute401.14 kg
Attribute416 kV EN/IEC 60947-5-1
Attribute4250/60 Hz
Attribute43can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Attribute44ENVEOLI110903EN
Attribute45ENVPEP110916EN
Attribute46Not applicable, out of EU RoHS legal scope
Attribute47Reference contains Substances of Very High Concern above the threshold
Attribute48Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute49UL || CSA
Attribute50-25-40 ?C
Attribute51-40-70 ?C
Attribute52EN 1088/ISO 14119 || EN/IEC 60204-1 || EN/ISO 12100 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14
Attribute53class I EN/IEC 61140
Attribute5410 gn 11 ms IEC 60068-2-27
Attribute555 gn 10-500 Hz)IEC 60068-2-6
Attribute56TC
Attribute57IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
AttributeKey00[Us] Rated Supply Voltage
AttributeKey01Contacts Type And Composition
AttributeKey02Range Of Product
AttributeKey03Cable Entry
AttributeKey04Electrical Connection
AttributeKey05Locking Options Description
AttributeKey06Contact Operation
AttributeKey07Local Signalling
AttributeKey08Solenoid Contacts Type And Composition
AttributeKey09Electromagnet Interlocking
AttributeKey10Product Or Component Type
AttributeKey11Signalling Circuit Voltage
AttributeKey12Component Name
AttributeKey13Material
AttributeKey14Design
AttributeKey15Number Of Poles
AttributeKey16Head Type
AttributeKey17, height_AttribHeight
AttributeKey18Maximum Operating Rate
AttributeKey19[Ui] Rated Insulation Voltage
AttributeKey20Short-Circuit Protection
AttributeKey21Positive Opening
AttributeKey22Load Factor
AttributeKey23Minimum Actuation Speed
AttributeKey24[Ie] Rated Operational Current
AttributeKey25Signalling Circuit Consumption
AttributeKey26Minimum Actuator Force For Extraction
AttributeKey27Mechanical Durability
AttributeKey28Maximum Actuation Speed
AttributeKey29Body Material
AttributeKey30[Ithe] Conventional Enclosed Thermal Current
AttributeKey31Safety Reliability Data
AttributeKey32Power Consumption In Va
AttributeKey33Supply Voltage Type
AttributeKey34, width_AttribWidth
AttributeKey35Actuator Forcible Withdrawal Rtc
AttributeKey36, length_AttribDepth
AttributeKey37Head Material
AttributeKey38Signalling Circuit Type
AttributeKey39Protection Type
AttributeKey40, Weight_AttribNet Weight
AttributeKey41[Uimp] Rated Impulse Withstand Voltage
AttributeKey42Supply Frequency
AttributeKey43Safety Level
AttributeKey44Circularity Profile
AttributeKey45Environmental Disclosure
AttributeKey46Eu Rohs Directive
AttributeKey47Reach Regulation
AttributeKey48California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey49Product Certifications
AttributeKey50Ambient Air Temperature For Operation
AttributeKey51Ambient Air Temperature For Storage
AttributeKey52Standards
AttributeKey53Electrical Shock Protection Class
AttributeKey54Shock Resistance
AttributeKey55Vibration Resistance
AttributeKey56Protective Treatment
AttributeKey57Ip Degree Of Protection
DimensionUnitmm
Extra Product NameSafety switch, Telemecanique Safety switches XCS, interlock 240 VAC 5 A t XCS special | Mayer Electric
UPC785901179603
Weight1.14
WeightUnitkg
depth, length44.0
height292.0
jsonUrlData/Product/SQUARE-D-Safety-switch-Telemecanique-Safety-switches-XCS-interlock-240-VAC-5-A-t-XCS-special-785901179603
jsonUrlData207f49170-7a6e-411d-a7ec-aeea00584f96
MPNXCSEREQ3492G2
qtyInStock0
SKUSQDXCSEREQ3492G2
tierPrice1810.55
width98.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXCSEREQ3492G2111 @ $810.55
Digi-Key17155028111 @ $703.54
gordonelectricsupply.comXCSEREQ3492G21This Item Usually Ships in 3-5 Days11 @ $696.57
RadwellXCSEREQ3492G2111 @ $720.00
MRO Supply139689511
