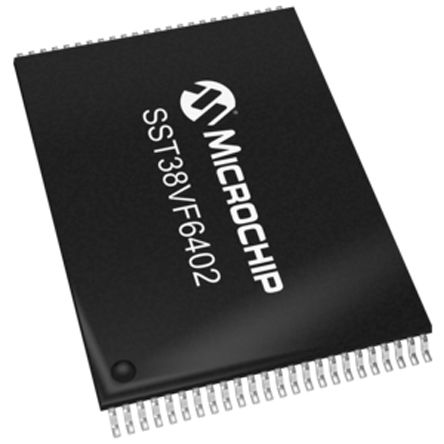

Microchip 2.7V To 3.6V 64Mbit Pm Parallel Advanced Mpf+ 48 Tsop 12X20mm Tray Rohs Compliant: Yes - SST38VF6402-90-5I-EKE

IC

EU RoHS: Compliant ECCN (US): 3A991.b.1.a Part Status: Active HTS: 8542.32.00.71 Automotive: No PPAP: No Cell Type: NOR Chip Density (bit): 64M Architecture: Sectored Boot Block: Yes Block Organization: Symmetrical Location of Boot Block: Top Address Bus Width (bit): 22 Sector Size: 8Kbyte x 1024 Page Size: 4Words Number of Bits/Word (bit): 16 Number of Words: 4M Programmability: Yes Timing Type: Asynchronous Max. Access Time (ns): 90 Maximum Erase Time (S): 0.05/Chip Maximum Page Access Time (ns): 25 Maximum Programming Time (ms): 0.01/Word OE Access Time (ns): 25 Interface Type: Parallel Minimum Operating Supply Voltage (V): 2.7 Typical Operating Supply Voltage (V): 3.3 Maximum Operating Supply Voltage (V): 3.6 Programming Voltage (V): 2.7 to 3.6 Operating Current (mA): 18 Page Read Current (mA): 20 Program Current (mA): 50 Minimum Operating Temperature (°C): -40 Maximum Operating Temperature (°C): 85 Supplier Temperature Grade: Industrial Command Compatible: Yes ECC Support: No Support of Page Mode: Yes Minimum Endurance (Cycles): 100000 Packaging: Tray Supplier Package: TSOP Pin Count: 48 Standard Package Name: SOP Mounting: Surface Mount Package Height: 1.05(Max) Package Length: 12.2(Max) Package Width: 18.5(Max) PCB changed: 48 Lead Shape: Gull-wing
