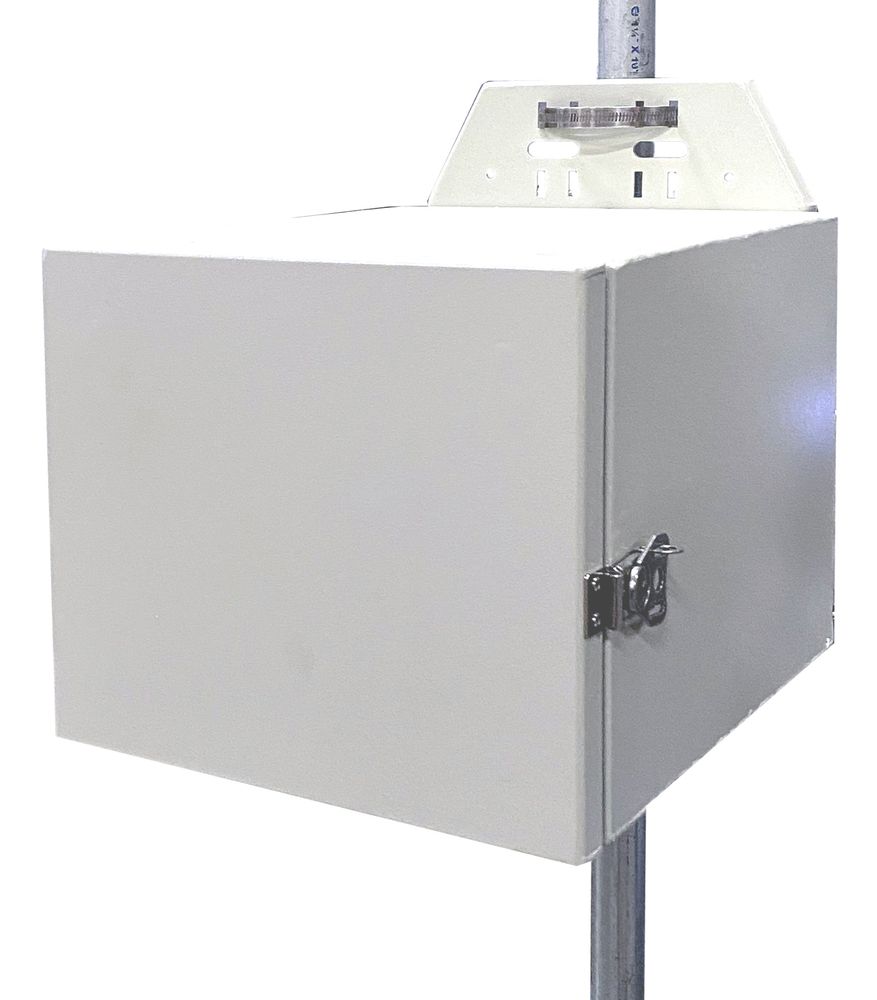

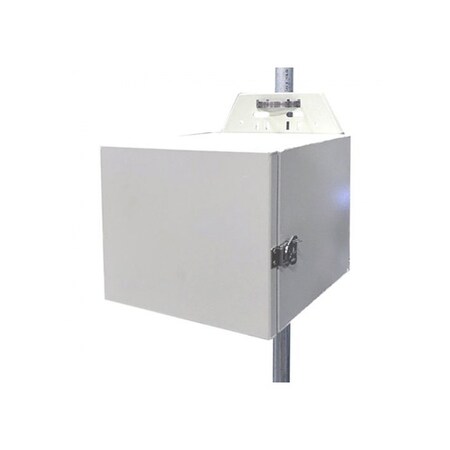

The UPSPro UPS24100120 outdoor backup power systems are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready requires blocking diode with most panels so a solar panel can be added as an alternate power source or to extend backup time.Features include 24VDC load controlled output, an advanced 20A PWM battery charge controller to protect against overcharging or overdischarging of the valve regulated sealed lead acid AGM batteries. The pole/wall mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.Features. 100W 24V DC UPSPro Solar Power System. 24VDC System. Weatherproof, UV resistant, Aluminum Outdoor Enclosure. Powered from AC Mains Power and/or Solar. Interior Space for Customer Electronics. Pole/Wall Mounting. Isolates Connected Equipment from Power Line Surges. High Quality Maintenance Free AGM Batteries. Advanced Battery Charge Controller Protects Against Overcharge and Over DischargeSpecifications. Battery Voltage DC 24V DC. Input Voltage AC 120/240VAC, 50/60Hz, 5A Max. Capacities Amp Hr 100Ah. Max Output Power 120W. Suggested Maximum Load 120W. Maximum Instantaneous Load 20A 500msec. Battery Cable Fuse 6 x 32 mm 30A 250V Ceramic Fuse. Bulk Charge 28.8V. Float Charge 27.5V. OverDischarge Protection 22V. OverDischarge Recovery Voltage 25.2V. Controller Self Consumption 0.3W
