048A17T2006-Marathon Electric-AC
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Galco | 048A17T2006-MARA | 1 | 1 | 1 @ $84.11 | |
| AG2YRC | 1 | 1 | 1 @ $359.57 | ||
| 048A17T2006 | 1 | 1 | 1 @ $204.66 | ||
 Zoro | G8796627 | 1 | 1 | 1 @ $182.08 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

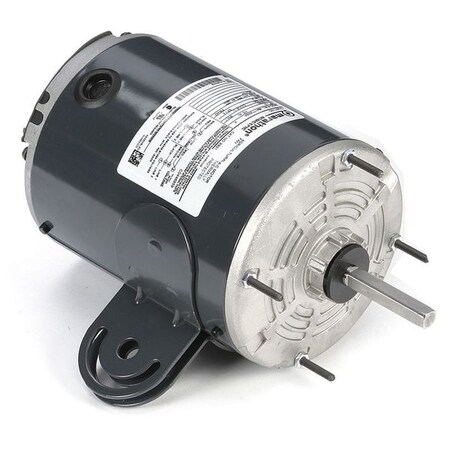

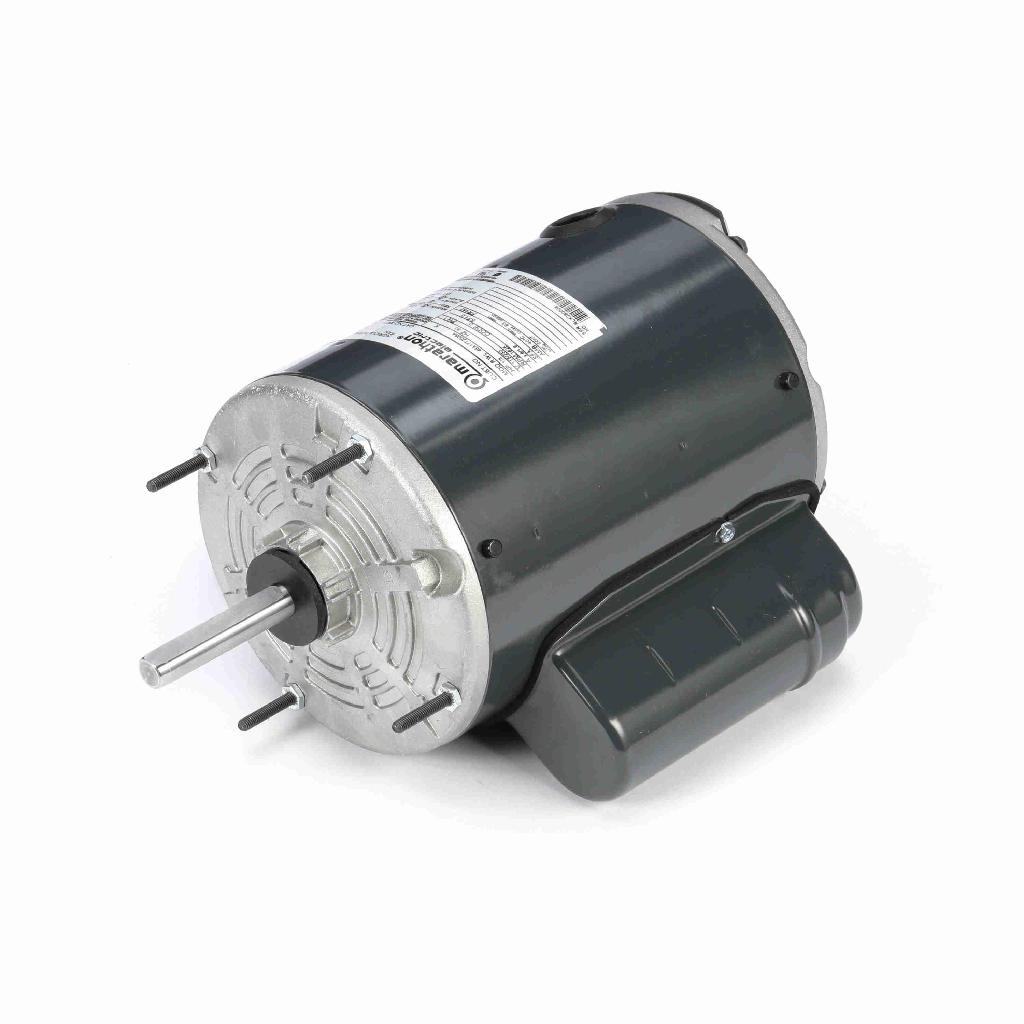

Marathon Electric / Regal Beloit - 048A17T2006 - 1/3 HP Pedestal Fan Motor, Permanent Split Capacitor, 1625 Nameplate RPM, 115/230 Voltage, Frame 48Z
Brand: Marathon Electric
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRIC_MOTOR |
| Part number | 048A17T2006 |
| Label | Marathon Electric / Regal Beloit |
| Manufacturer | Marathon Electric / Regal Beloit |
Catalog
| Feature | Technical Specification Item Pedestal Fan Motor Motor Application HVAC/R Motor Sub Application |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 048A17T2006 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | Marathon Electric / Regal Beloit |
Pdstl Fan Mtr, PSC, TENV, 1/3HP, 1625rpm, 48Z
Brand: Marathon Industries
Pedestal Fan Motor Permanent Split Capacitor Totally Enclosed Nonventilated 1/3 HP Nameplate RPM 1625 Voltage 115/230 Full Load Amps 3.8/1.9 Hz 60 Phase 1 48Z Frame 1.00 Motor Service Factor Max Ambient Temp 40 Degrees C Ins. Class B Duty Continuous Yoke Motor Mounting Type Ball Motor Bearings Auto Motor Thermal Protection CW/CCW Motor Shaft Rotation Body Dia 5-3/4 In. Overall Length 11-1/16 In. Shaft Dia 1/2 In. Shaft Length 2-9/16 In. Application Pedestal Fan
Marathon Motors 1/3 HP Pedestal Fan Motor, Permanent Split Capacitor, 1625 Nameplate RPM,115/230 Voltage, Frame 48Z
Brand: CAI - MARATHON MOTORS
<br /><br /> Item: Pedestal Fan Motor<br /> Motor Design: Permanent Split Capacitor<br /> Phase: 1<br /> HP: 1/3<br /> RPM Range: 1001-1100<br /> No. of Speeds: 1<br /> Voltage: 115/230<br /> Motor Shaft Rotation: CW/CCW<br /> Frame: 48Z<br /> Motor Enclosure Design: Totally Enclosed Nonventilated<br /> Motor Mounting Type: Yoke<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 2-9/16"<br /> Motor Thermal Protection: Auto<br /> 10 Ft. Cord and Pull Chain Switch: No<br /> Nameplate RPM: 1625<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Pedestal Fan<br /> Full Load Amps: 3.8/1.9<br /> Hz: 60<br /> Motor Service Factor: 1.00<br /> Motor Design: Permanent Split Capacitor<br /> HP: 1/3<br /> No. of Speeds: 1<br /> Voltage: 115/230<br /> Frame: 48Z<br /> Motor Mounting Type: Yoke<br /> Shaft Length: 2-9/16"<br /> 10 Ft. Cord and Pull Chain Switch: No<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Pedestal Fan<br /> Full Load Amps: 3.8/1.9<br /> Hz: 60<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Nameplate RPM: 1625<br /> Motor Sub Application: Pedestal Fan<br /> Hz: 60<br /> Motor Service Factor: 1.00<br /> Ins. Class: B<br /> Motor Bearings: Ball<br /> Body Dia.: 5-3/4"<br /> Motor Shaft Design: Double-Flat<br /> Capacitor Required: Included<br /> Standards: UL Recognized (E6312), CSA Certified (LR2025)<br /> Manufacturers Warranty Length: 1 yr.
