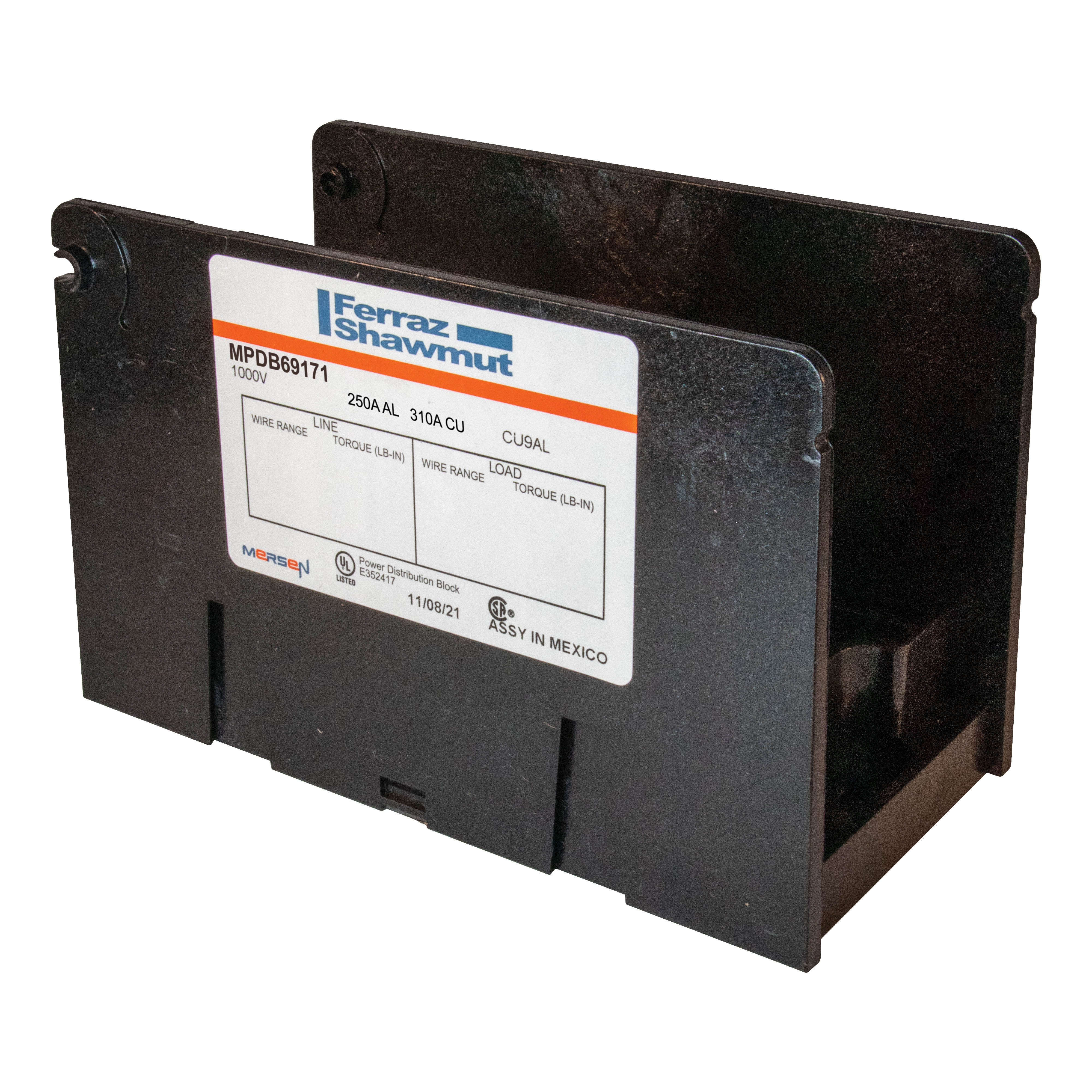

MERSEN MPDB69171 | United Electric

Mersen . MPDB69171

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute05, Brand, Label, Man, Publisher, StudioMersen
Attribute00, SKU587967
Attribute01, Attribute02310
Attribute03Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
Attribute041.9
Attribute06, MPN, Part Number, PartNumberMPDB69171
Attribute07Box To Box
Attribute08Ferraz Shawmut
Attribute09Tin-plated Aluminum
Attribute10Direct Screw Mount
Attribute11, moq, multiple, tierMinQty11
Attribute12, Attribute165.7 x 2.73 x 3.55
Attribute13Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. See-through, hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block.
Attribute14UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
Attribute15NONSTOCK
Attribute17Open-Style Power Distribution Blocks
Attribute181000
Extra Product NameMERSEN MPDB69171 | United Electric
UPC78200145254
keywordsPOWER DISTRIBUTION BLOCK MERSEN (FORMERLY FERRAZ SHAWMUT INC NAED6132 WEBREADY02 POWER DISTRIBUTION BLOCK MERSEN (FORMERLY FERRAZ SHAWMUT INC NAED6132
qtyInStock0
snippetMERSEN MPDB69171
tierPrice1271.71
Product Group, ProductGroupHome Improvement
ASIN, AsinB00YIKCQCI
BindingMisc.
Case, NumberOfItems, PackageQuantity6
CatTools & Home Improvement
CatId228013
CatTree228013 306515011 468240 495266 6355935011 6369357011
FeaturePack Size = 6
FetchTime1545594722
Height, Width75
ProductTypeNameTOOLS
TitleMersen part MPDB69171 Desc: PDB 1P AL LARGE UL1953
URLhttp://ecx.images-amazon.com/images/I/21Q7fmZMnAL._SL75_.jpg
Unitspixels pounds
Weight1.00

Distributor offers

SellerSKUMOQIn stockMultiplePrices
United Electric587967111 @ $271.71
bulbspro.comMPDB691711-211 @ $210.96
cbtcompany.comMPDB6917111
us.rs-online.com719380361611 @ $147.13, 12 @ $140.02
Crescent Electric Supply Co191123311
GalcoMPDB691716-261 @ $184.44
Allied Electronics7193803661
turtle.comCS MPDB691711-211 @ $130.90
RadwellMPDB69171661 @ $175.00
