Order 668B-03-3 by Dwyer 668B Compact Pressure Transmitter - US Mega Store

Dwyer . 668B-03-3

Gallery

Attributes

Brand name, Manufacturer name, BrandDwyer
ManufacturerDwyer Dwyer Instruments, Inc.
Attribute00, Attribute16Air and non-conductive gases
Attribute01, Attribute17±0.8% FS
Attribute02, Attribute18Operating: 0 to 170°F (-18 to 77°C); Storage: -40 to 185°F (-40 to 85°C)
Attribute03, Attribute1915 psig (1.0 bar)
Attribute04, Attribute20±0.03% FS/°F (±0.054% FS/°C)
Attribute05, Attribute21Front
Attribute06, Attribute22From 40 to 170°F (4.4 to 77°C)
Attribute07, Attribute2312 to 32 VDC
Attribute08, Attribute240-0.5" w.c.
Attribute09, Attribute250 to 5 VDC
Attribute10, Attribute26Accessible under the small terminal cover
Attribute11, Attribute27Terminal strip
Attribute12, Attribute283/16" OD barbed brass for 1/8" ID push-on tubing
Attribute13, Attribute29Stainless steel and PC+ABS alloy, UL 94 V-0 rated
Attribute14, Attribute304.0 oz (113 g)
Attribute15, Attribute31CE
AttributeKey00, AttributeKey16Service
AttributeKey01, AttributeKey17Accuracy
AttributeKey02, AttributeKey18Temperature Limits
AttributeKey03, AttributeKey19Pressure Limits
AttributeKey04, AttributeKey20Thermal Effects
AttributeKey05, AttributeKey21Connection
AttributeKey06, AttributeKey22Compensated Range
AttributeKey07, AttributeKey23Power Requirements
AttributeKey08, AttributeKey24Unidirectional Pressure Range
AttributeKey09, AttributeKey25Output Signals
AttributeKey10, AttributeKey26Zero Adjustment
AttributeKey11, AttributeKey27Electrical Connection
AttributeKey12, AttributeKey28Process Connection
AttributeKey13, AttributeKey29Enclosure
AttributeKey14, AttributeKey30, Weight_AttribWeight
AttributeKey15, AttributeKey31Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer 668B-03-3
ConditionNEW
Extra Product NameOrder 668B-03-3 by Dwyer 668B Compact Pressure Transmitter - US Mega Store
Weight4.0 0.42
WeightUnitoz
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, PartNumber668B-03-3
qtyInStockContact Us

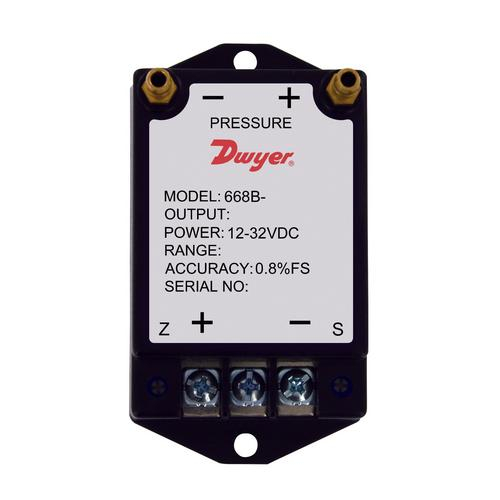

snippet<p><strong>668B-03-3, Series 668B Compact Differential Pressure Transmitter </strong> </p> <p>Low cost SERIES 668B Compact Differential Pressure Transmitter is capable of sensing differential gage pressure with &plusmn;0.8% FS accuracy, and converts this pressure difference to a proportional high level analog output for both unidirectional and bi-directional pressure ranges. This transmitter can withstand up to 15 psig overpressure with no damage to the unit. The compact, lightweight design makes installation simple and easy. Unit are protected against incorrect wiring, and include a protective terminal cover. </p> <p><strong>Features: </strong> </p> <ul><li>Protection from 15 psi overpressure & incorrect wiring </li> <li>High accuracy at low pressure ranges </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>HVAC and VAV control </li> <li>Clean rooms and isolation rooms </li> <li>Duct static pressure measurement </li> </ul>
tierPrice1247.2
Product Group, ProductGroupBISS
ASIN, AsinB01B5C7JQE
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256409011 5006545011
FeatureAccuracy: \xb10.8% FS
FetchTime1546454538
Height, Width75
Label, Man, Publisher, StudioDwyer Instruments, Inc.
ProductCategoryId5006546011 biss_display_on_website
ProductTypeNameMECHANICAL_COMPONENTS
Rank1983653 496
TitleDwyer 668B Diff Pressure Transmitter, 668B-03-3, Front Connection, 0-5 VDC, 0-0.5" w.c.
URLhttp://ecx.images-amazon.com/images/I/518w%2Bl%2BnWLL._SL75_.jpg
Unitspixels pounds

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com668B-03-31Contact Us11 @ $247.20
blackhawksupply.com668B-03-31-211 @ $272.21
Galco668B-03-3-DWYR111 @ $235.43
cappusa.com4125173111 @ $195.70
Megadepot668B-03-3111 @ $238.50
alliedcontrols.com668B-03-31Factory Stock11 @ $251.25
Allied Electronics7130232811
Radwell668B-03-311
