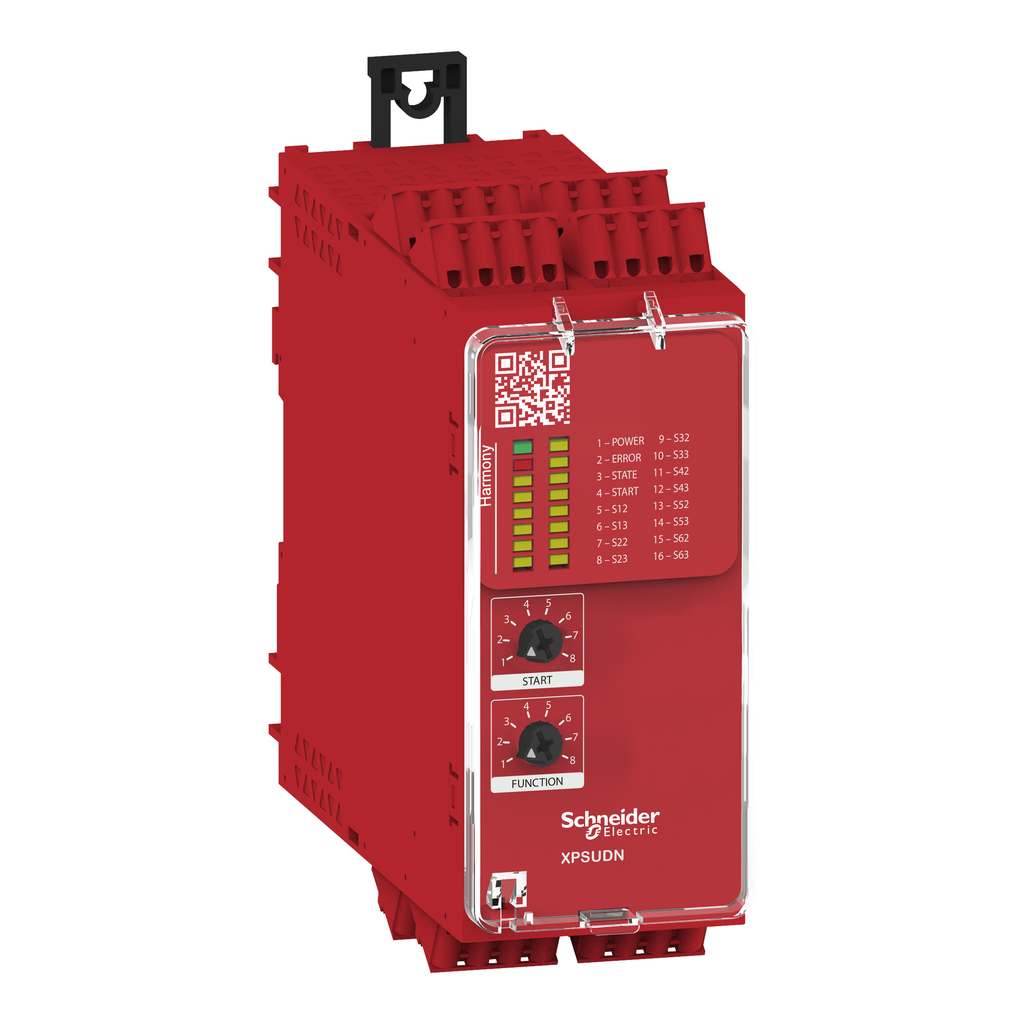

Safety module, Harmony Safety Automation, Cat.4, features 6*XPSUAF, 48-240v AC/DC, spring | Mayer Electric

SQUARE D . SQDXPSUDN33AC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute0048...240 V AC/DC - 10...10 %
Attribute01Harmony Safety Automation
Attribute02safety module
Attribute03XPSUDN
Attribute04removable spring terminal block, 0.2...2.5 mm? solid or flexible || removable spring terminal block, 0.25...2.5 mm? flexible with ferrule single conductor || removable spring terminal block, 0.2...1.5 mm? solid or flexible twin conductor || removable spring terminal block, 2 x 0.25...1 mm? flexible with ferrule without cable end, with bezel || removable spring terminal block, 2 x 0.5...1.5 mm? flexible with ferrule with cable end, with bezel
Attribute05monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring
Attribute06MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 1.36E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 1.36E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 1.36E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
Attribute07NC pair || PNP pair || antivalent pair || OSSD pair
Attribute08emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Attribute09can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
Attribute107 pulsed output
Attribute11100 mm
Attribute1235 mm symmetrical DIN rail
Attribute1312 V relay output
Attribute1410 mA relay output
Attribute1516 A
Attribute16semiconductor pulsed diagnostic output Z1, 20 mA
Attribute1710 A gG NO relay output circuit IEC 60947-1 || 4 A gG NC relay output circuit IEC 60947-1
Attribute184 kV II EN/IEC 60947-1
Attribute190.350 kg
Attribute20automatic/manual/monitored
Attribute216
Attribute22normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
Attribute2325 VA 240 V AC 50/60 Hz
Attribute245 A AC-1 || 3 A AC-15 || 5 A DC-1 || 3 A DC-13 || 3 A AC-1 || 1 A AC-15 || 3 A DC-1 || 1 A DC-13
Attribute253 NO + 1 NC
Attribute26250 V 2)EN/IEC 60947-1
Attribute276 W 48 V DC
Attribute28500 Ohm
Attribute29for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow) || for safety input S22 LED (yellow) || for safety input S23 LED (yellow) || for safety input S32 LED (yellow) || for safety input S33 LED (yellow) || for safety input S42 LED (yellow) || for safety input S43 LED (yellow) || for safety input S52 LED (yellow) || for safety input S53 LED (yellow) || for safety input S62 LED (yellow) || for safety input S73 LED (yellow)
Attribute30internal, electronic
Attribute3145 mm
Attribute32120 mm
Attribute330.5 s || 2 s || 2.2 s || 4 s
Attribute3420 ms
Attribute35, Attribute36, Attribute39Yes
Attribute37ENVPEP1811003EN
Attribute38Green Premium product
Attribute40Reference contains Substances of Very High Concern above the threshold
Attribute41Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute42The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute43X
Attribute44ENVEOLI1811003EN
Attribute45Pro-active compliance (Product out of EU RoHS legal scope)
Attribute46T?V || cULus
Attribute47-25-50 ?C at 24 V AC || -25-55 ?C at 24 V DC
Attribute48IP20 terminals)EN/IEC 60947-1 || IP40 housing)EN/IEC 60947-1 || IP54 mounting area)EN/IEC 60947-1
Attribute49IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Attribute50-25-85 ?C
Attribute515-95 % non-condensing
AttributeKey00[Us] Rated Supply Voltage
AttributeKey01Range Of Product
AttributeKey02Product Or Component Type
AttributeKey03Safety Module Name
AttributeKey04Connections - Terminals
AttributeKey05Safety Module Application
AttributeKey06Safety Reliability Data
AttributeKey07Electrical Circuit Type
AttributeKey08Function Of Module
AttributeKey09Safety Level
AttributeKey10Number Of Outputs
AttributeKey11, height_AttribHeight
AttributeKey12Mounting Support
AttributeKey13Minimum Output Voltage
AttributeKey14Minimum Output Current
AttributeKey15[Ith] Conventional Free Air Thermal Current
AttributeKey16Input/Output Type
AttributeKey17Associated Fuse Rating
AttributeKey18[Uimp] Rated Impulse Withstand Voltage
AttributeKey19, Weight_AttribNet Weight
AttributeKey20Type Of Start
AttributeKey21Number Of Inputs
AttributeKey22Input Compatibility
AttributeKey23Power Consumption In Va
AttributeKey24[Ie] Rated Operational Current
AttributeKey25Auxiliary Contact Composition
AttributeKey26[Ui] Rated Insulation Voltage
AttributeKey27Power Consumption In W
AttributeKey28Maximum Line Resistance
AttributeKey29Local Signalling
AttributeKey30Input Protection Type
AttributeKey31, width_AttribWidth
AttributeKey32, length_AttribDepth
AttributeKey33Synchronisation Time Between Inputs
AttributeKey34Maximum Response Time On Input Open
AttributeKey35Rohs Exemption Information
AttributeKey36Mercury Free
AttributeKey37Environmental Disclosure
AttributeKey38Sustainable Offer Status
AttributeKey39Pvc Free
AttributeKey40Reach Regulation
AttributeKey41California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey42Weee
AttributeKey43China Rohs Regulation
AttributeKey44Circularity Profile
AttributeKey45Eu Rohs Directive
AttributeKey46Product Certifications
AttributeKey47Ambient Air Temperature For Operation
AttributeKey48Ip Degree Of Protection
AttributeKey49Standards
AttributeKey50Ambient Air Temperature For Storage
AttributeKey51Relative Humidity
DimensionUnitmm
Extra Product NameSafety module, Harmony Safety Automation, Cat.4, features 6*XPSUAF, 48-240v AC/DC, spring | Mayer Electric
UPC, MPN, SKUSQDXPSUDN33AC
Weight0.350
WeightUnitkg
depth, length120.0
height100.0
jsonUrlData/Product/SQUARE-D-Safety-module-Harmony-Safety-Automation-Cat-4-features-6XPSUAF-48-240v-AC-DC-spring-SQDXPSUDN33AC
jsonUrlData2a6dba74a-f1ea-414a-8712-aeea00588588
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width45.0
