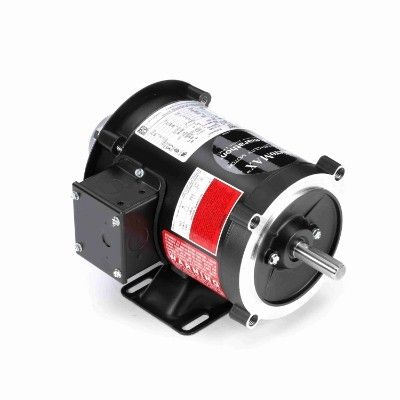

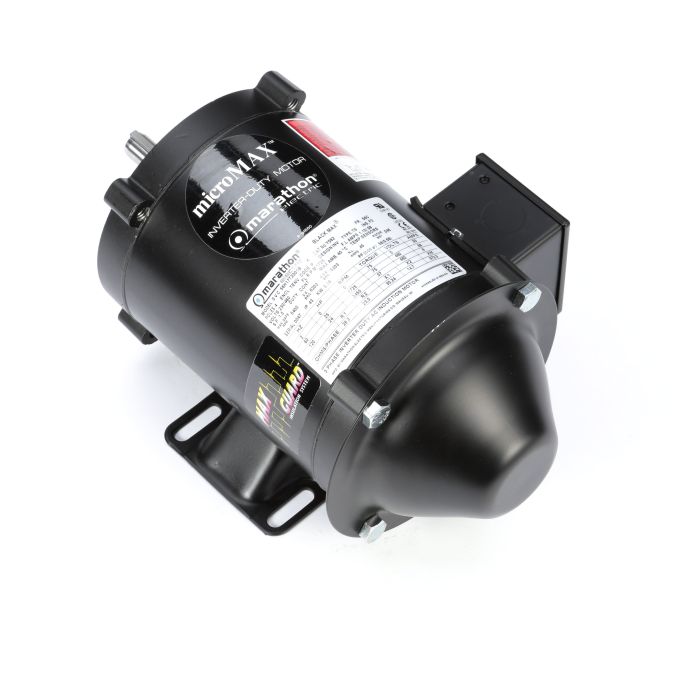

Marathon 056H17T2001, Inverter Duty Variable Speed Motor, 1/4 HP, 230/460 Volts, 0.58 Amps, 3 Phase, 60 Hz, 1725 RPM, TENV Enclosure, 56C Frame, Rigid Base, Rolled Steel Frame, Catalog No: Y592

<br /><br /> Item: Vector Motor<br /> Motor Application: Crane<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Nonventilated<br /> HP: 1/4<br /> Torque: .75 lb.-ft.<br /> Nameplate RPM: 1725<br /> Speed Range: 1000:1 CT<br /> Max. Speed: 5400 rpm<br /> Frame: 56C<br /> Max. Operating Frequency: 120 Hz<br /> Voltage: 230/460<br /> Hz: 60<br /> Phase: 3<br /> Full Load Amps: 1.15/.58<br /> Motor Mounting Type: Face/Base<br /> Motor Mounting Position: Horizontal<br /> Motor Shaft Rotation: CW/CCW<br /> Motor Bearings: Ball<br /> Motor Service Factor: 1.00<br /> Motor Thermal Protection: T-Stat<br /> Ins. Class: F<br /> Insulation Feature: MAX GUARD Class F<br /> Ambient Temperature: 40 Degrees C<br /> Nominal Efficiency: 72.1%<br /> Motor Efficiency Group: Standard Efficient<br /> NEMA Design: B<br /> Motor Frame Material: Rolled Steel<br /> Finish: Black<br /> Base: Rigid<br /> Duty: Continuous<br /> Encoder Acceptable: Yes<br /> Encoder Shaft: Yes<br /> Motor Shaft Design: Keyed<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-1/16"<br /> Overall Length: 11-7/8"<br /> RPM Range: 1701-1800<br /> Standards: UL Listed (E49747), CSA Certified (LR2025), CE<br />
