The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

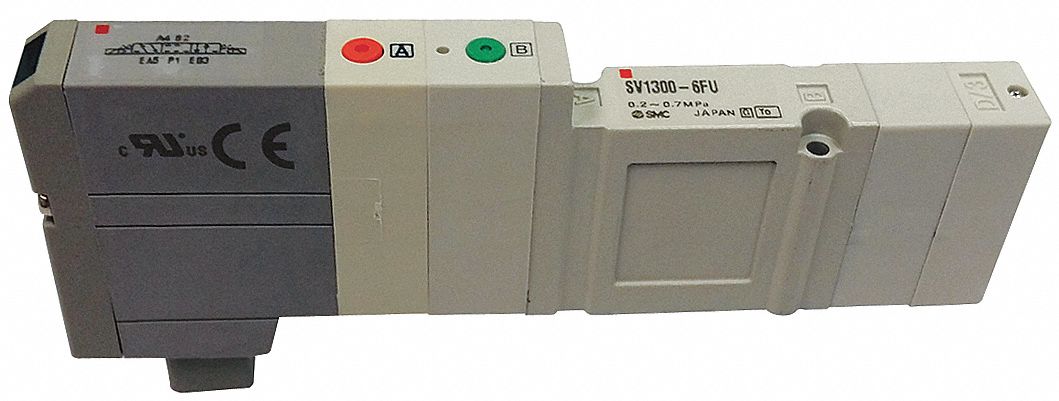

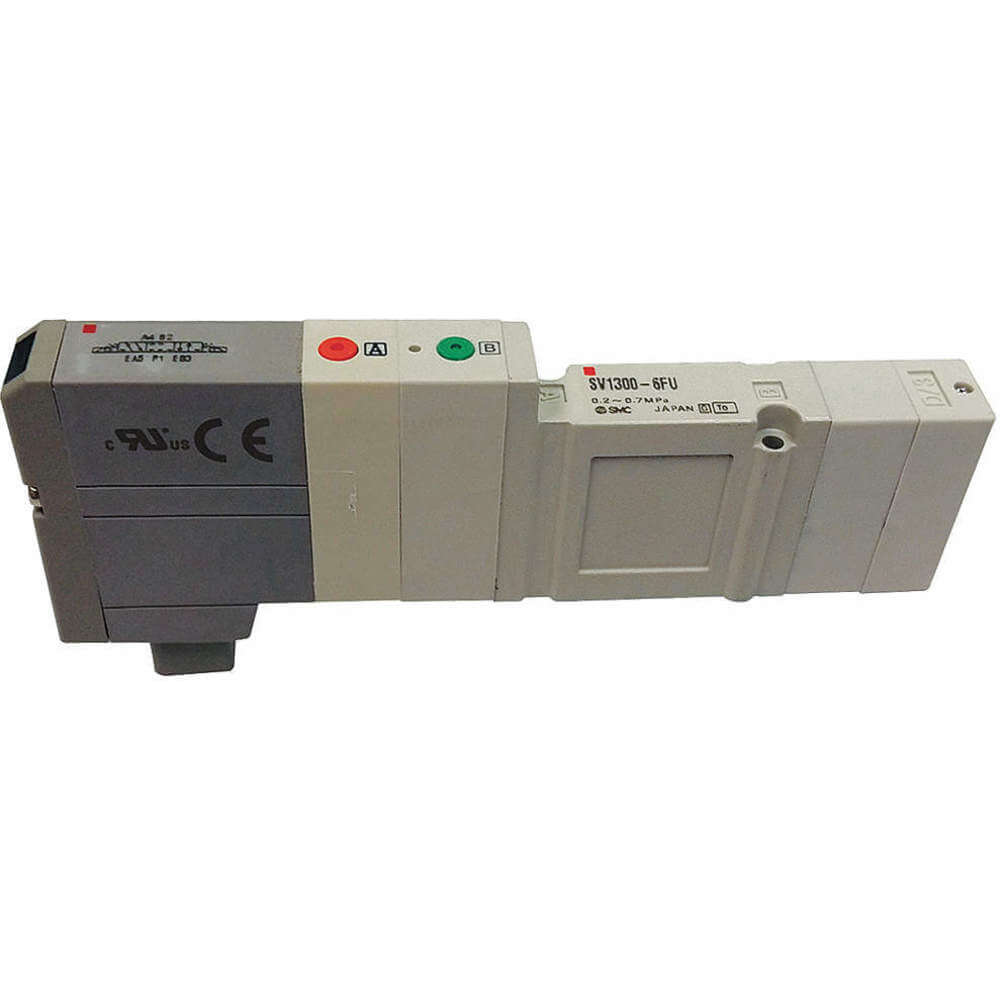

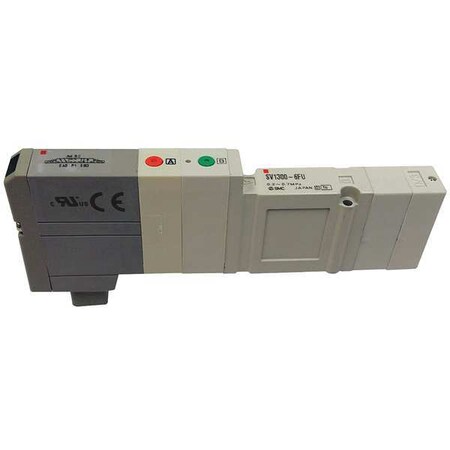

12V DC, 5-Way/3-PositionSolenoid Air Control Valve This listing is for each. Technical Specification Item Solenoid Air Control Valve Valve Ways and Positions 5-Way/3-Position Voltage 12V DC Center Position Closed Valve Actuator / Return Solenoid / Solenoid Max. CFM - Valves 36.4 Operational Pressure Range 15 to 105 psi Normally Open / Normally Closed Normally Open/Normally Closed Body Style Base Mounted Pilot Pressure 15 Coefficient of Volume 1.3 Electrical Connections Plug-In Shifting Technology Solenoid Power Consumption 0.6 W Ambient Temp. Range 14 Degrees to 122 Degrees F Override Non-Locking Push Overall Height 1 45/64 in Overall Length 4 9/16 in Overall Width 13/16 in Standards CE, UL Pneumatic Valves Product Group Solenoid Air Control Valve
