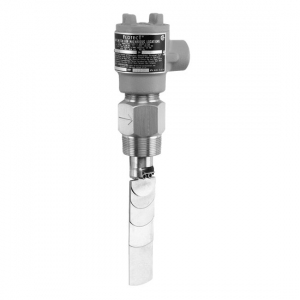

Order V4-SS-2-D-U by W.E. Anderson V4 Flotect Vane-Operated Flow Switch - US Mega Store

W.E. Anderson . V4-SS-2-D-U

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute13Gases or liquids compatible with wetted materials
Attribute01, Attribute14-4 to 275°F
Attribute02, Attribute152000 psig (138 bar)
Attribute03, Attribute16Weatherproof and Explosion-proof
Attribute04, Attribute17DPDT snap switch
Attribute05, Attribute1810 A @ 125/250 VAC
Attribute06, Attribute1916 AWG, 6" (152 mm) long
Attribute07, Attribute203/4" female NPT
Attribute08, Attribute211-1/2" male NPT
Attribute09, Attribute22Within 5° of vertical for proper operation
Attribute10, Attribute23For universal vane: five vane combinations
Attribute11, Attribute244 lb 8 oz
Attribute12, Attribute25ATEX, CE, CSA, FM, IECEx
AttributeKey00, AttributeKey13Service
AttributeKey01, AttributeKey14Temperature Limit
AttributeKey02, AttributeKey15Pressure Limit
AttributeKey03, AttributeKey16Enclosure Rating
AttributeKey04, AttributeKey17Switch Type
AttributeKey05, AttributeKey18Electrical Rating
AttributeKey06, AttributeKey19Electrical Connections
AttributeKey07, AttributeKey20Conduit Connection
AttributeKey08, AttributeKey21Process Connection
AttributeKey09, AttributeKey22Mounting Orientation
AttributeKey10, AttributeKey23Set Point Adjustment
AttributeKey11, AttributeKey24, Weight_AttribWeight
AttributeKey12, AttributeKey25Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Flow
CategoryL4W.E. Anderson V4-SS-2-D-U
ConditionNEW
Extra Product NameOrder V4-SS-2-D-U by W.E. Anderson V4 Flotect Vane-Operated Flow Switch - US Mega Store
Weight4
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUV4-SS-2-D-U
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>W.E.Anderson, V4-SS-2-D-U, FLOTECT Vane Operated Flow Switch, 316SS Body (with 430SS magnet keeper), NPT Connection Type, DPDT Type </strong> </p> <p>The SERIES V4 Flotect&reg; Flow Switches is rugged and reliable, ideal for automatically protecting equipment and pipeline systems against damage from reduction or loss of flow. Time tested in thousands of pipeline installations and processing plants around the world this Series is Weatherproof. </p> <p><strong>Features </strong> </p> <ul><li>Leak proof body machined from bar stock </li> <li>Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to be shut down </li> <li>High pressure rating of 2000 psig (138 bar) </li> <li>Unique magnetically actuated switching design gives superior performance </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Protects pumps, motors and other equipment against low or no flow </li> <li>Controls sequential operation of pumps </li> <li>Automatically starts auxiliary pumps and engines </li> <li>Stops liquid cooled engines, machines and processing when coolant flow is interrupted </li> <li>Shuts down burner when air flow through heating coil fails </li> <li>Controls dampers according to flow </li> </ul>
tierPrice1922

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comV4-SS-2-D-U12 Weeks Factory Lead Time11 @ $922.00
heavydutydepot.comV4-SS-2-D-U111 @ $847.00
MegadepotV4-SS-2-D-U111 @ $847.00
