Service Caster

Service Caster . SCC-35S620-PHRHT-BSL

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute006
Attribute012
Attribute022-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attribute037-1/2"
Attribute04475 degrees F continuous usage and 525 degrees F intermittent usage
Attribute05Bright Zinc Plated Finish
Attribute061200
Attribute074-1/2" x 6-1/4"
Attribute0890D
Attribute09, Model, ModelNumber, Model_numberSeries#35
Attribute10, Material, MaterialTypeHigh Temperature Phenolic
Attribute11Swivel caster w/bolt on swivel lock
Attribute12Top Plate
Attribute13Bolt On Swivel Lock
Attribute14, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Caster Bolt Hole Pattern
AttributeKey03, height_AttribMounting Height
AttributeKey04Caster Temp. Range
AttributeKey05Finish
AttributeKey06Capacity (Lb.)
AttributeKey07Plate Size
AttributeKey08Durometer
AttributeKey09Series
AttributeKey10Material
AttributeKey11Type
AttributeKey12Caster Mounting Type
AttributeKey13Caster Swivel Lock Type
AttributeKey14Country of Origin (subject to change)
DimensionUnitinch
WeightUnitlbs
diameter, length6.0
extendedLead26
extendedQty-2
height7.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-35S620-PHRHT-BSL
qtyInStock0
tierPrice1136.43
urlhttps://www.zoro.com/service-caster-6-inch-heavy-duty-high-temp-phenolic-caster-with-roller-bearing-and-swivel-lock-scc-35s620-phrht-bsl/i/G505439357/
width, Backspacing2.0
ASINB08WFXBX57 B08XN2XM5B
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08WFXBX57
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #35 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId383663011 511228
ColorSwivel - Bolt On Swivel Lock - Brown
Currency, CurrencyCodeUSD
DisplayNameHardware
Exterior_finishMetallic
Externally_assigned_product_identifier, Identifier0011586582064 011586582064
FetchTime1698962008 1704543876
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHeavy Duty Large Top Plate High Temperature Phenolic Swivel Caster w/6" x 2" Brown Wheel & Bolt on Swivel Lock - 1200 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-35S620-PHRHT-SLB-BSL-2-R-2
Linkhttps://m.media-amazon.com/images/I/3135DIuqNhL._SL75_.jpg https://m.media-amazon.com/images/I/3135DIuqNhL.jpg https://m.media-amazon.com/images/I/41-P-Ea9B6L._SL75_.jpg https://m.media-amazon.com/images/I/41-P-Ea9B6L.jpg https://m.media-amazon.com/images/I/41IeDxf4yML._SL75_.jpg https://m.media-amazon.com/images/I/41IeDxf4yML.jpg https://m.media-amazon.com/images/I/51GdYBJhVeL.jpg https://m.media-amazon.com/images/I/51HXg+A6JfL._SL75_.jpg https://m.media-amazon.com/images/I/51HXg+A6JfL.jpg https://m.media-amazon.com/images/I/51M30FRyQ0L._SL75_.jpg https://m.media-amazon.com/images/I/51M30FRyQ0L.jpg https://m.media-amazon.com/images/I/51ijb38H5pL.jpg https://m.media-amazon.com/images/I/51xsZRuXAkL.jpg https://m.media-amazon.com/images/I/61zO3KuwPCL.jpg https://m.media-amazon.com/images/I/718bIiGmTZL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity1200.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08XN2XM5B
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #35 swivel caster with a 6" diameter by 2" wide high temperature phenolic wheel and a bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 35 high temperature phenolic wheel casters. The Service Caster Series #35 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward.
Product_site_launch_date2021-02-24T19:58:48.393Z
Rank352351 366205 3978 4086 822701 832020
Size6" Wheel 6.0
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Heavy Duty Large Top Plate High Temperature Phenolic Swivel Caster w/6" x 2" Brown Wheel & Bolt on Swivel Lock - 1200 lbs Capacity/Caster - Service Caster Brand Industrial & Scientific Plate Casters
TypeCount VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/3135DIuqNhL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight8.55

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG505439357111 @ $136.43

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

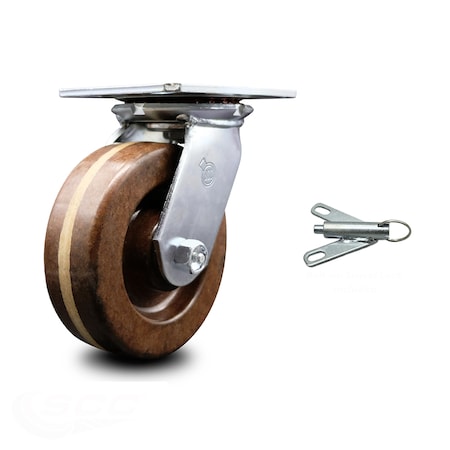

Heavy Duty Large Top Plate High Temperature Phenolic Swivel Caster w/6" x 2" Brown Wheel & Bolt on Swivel Lock - 1200 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #35 swivel caster with a 6" diameter by 2" wide high temperature phenolic wheel and a bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 35 high temperature phenolic wheel casters. The Service Caster Series #35 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward.
Details
  • These Service Caster Series #35 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#35
Part numberSCC-35S620-PHRHT-BSL
Items per pack1
LabelService Caster
ManufacturerService Caster
