Mean Well Led Driver, Constant Current, 25W Rohs Compliant: Yes - LPF-25D-20

AC DC Power Supply Single-OUT 20V 1.25A 25W

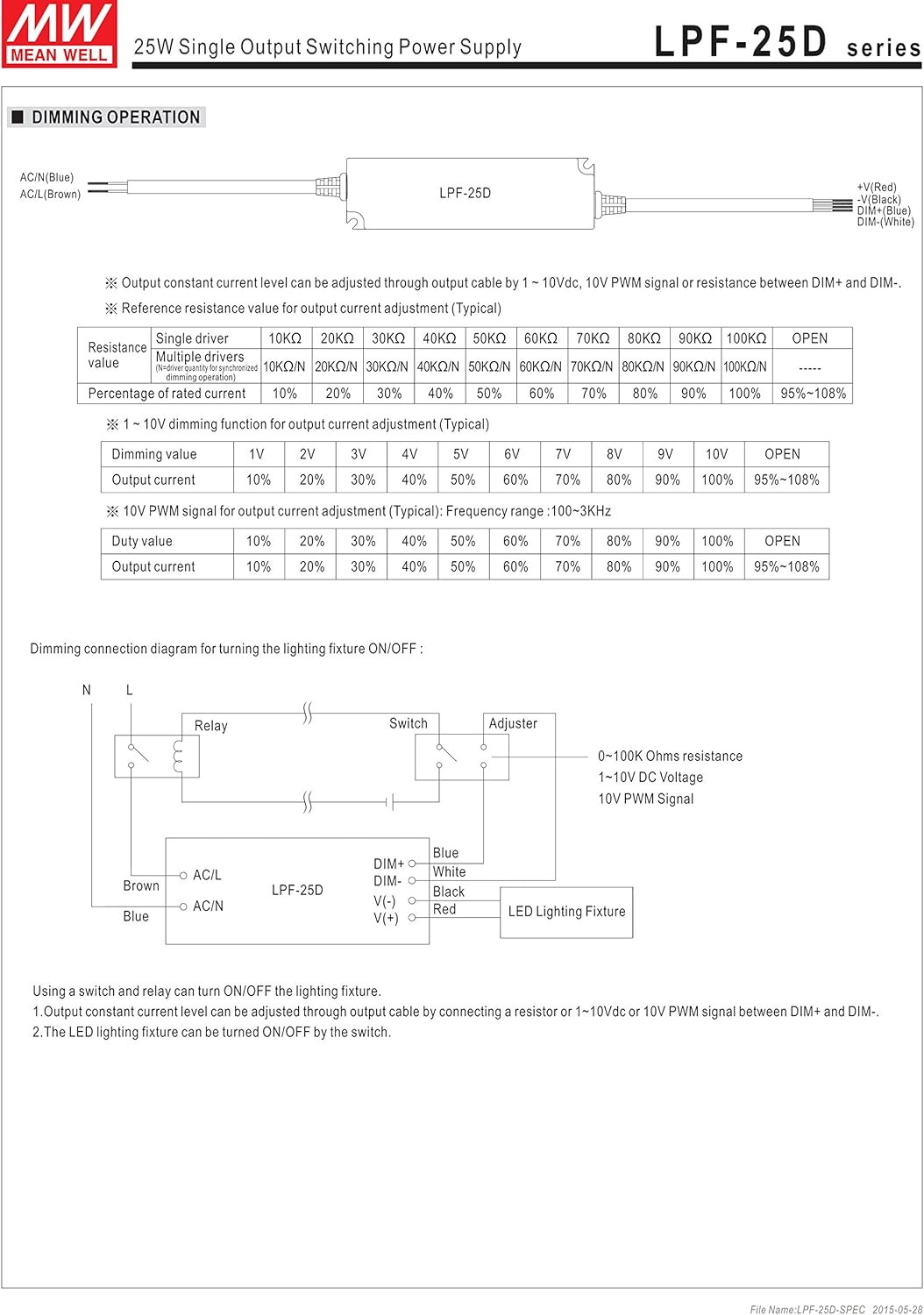

<b>Features</b><br>Universal AC input (up to 305VAC) / Full range<br>Protections: Short circuit / Over current / Over voltage /Over temperature<br>Built-in active PFC function<br>Fully isolated plastic case<br>Isolation class II, no F.G.<br>Class 2 power unit<br>Built-in 3 in 1 dimming function(1~10VDC, PWM signal or resistance) for D type<br>Fully encapsulated w ith IP67 level [optional for LPF-16(D)]<br>Cooling by free air convection<br>Suitable for LED lighting and moving sign applications<br>Suitable for dry, damp, and wet location<br>5 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.

LPF-25D series is a 25W AC/DC LED driver featuring the dual modes constant voltage and constant current output.LPF-25D operates from 90¡«305VAC and offers models with different rated voltage ranging between 12V and 54V.Thanks to the efficiency up to 86%,with the fanless design,the entire series is able to operatefor -35¡ãC~+70¡ãC case temperature under free air convection.LPF-25D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.Features: Constant Current mode output | Plastic housing with Class II design | Built-in active PFC function | Class 2 power unit | Fully encapsulated with IP67 level | Function:3 in 1 dimming | Typical lifetime>50000hours | 5 years warranty
