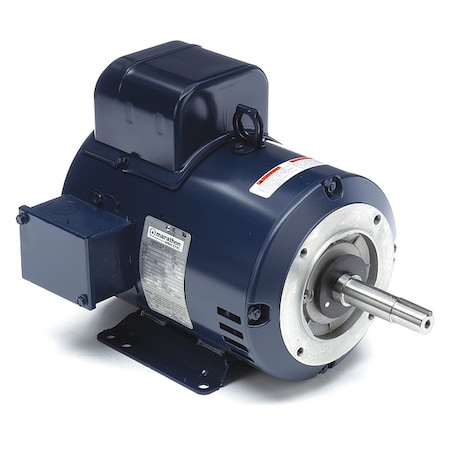

Marathon 184TBDW17007, Close-Coupled Pump Motor, 5 Hp, 230 Volts, 22.0 Amps, 1 Phase, 60 Hz, 3500 RPM, ODP Enclosure, 184JM Frame, Rigid Base, Rolled Steel Frame, Catalog No: Z408A

The Marathon Motors close-coupled pump motor is a 3-phase continuous-duty motor for use in commercial and industrial pumping applications. This TEFC motor is suitable for use in dirty, dusty, and nonhazardous applications. JM threaded Open dripproof Capacitor-start<br /><br /> Item: Close-Coupled Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Close-Coupled Pump<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 5<br /> Nameplate RPM: 3500<br /> Frame: 184JM<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230<br /> Full Load Amps: 22.0<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 4-1/4"<br /> Motor Shaft Design: JM Threaded<br /> Length Less Shaft: 12-1/16"<br /> Overall Length: 16-5/16"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Nominal Efficiency: 89.5%<br /> Motor Efficiency Group: Standard Efficient<br /> Inverter Rated: No<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025)<br />
