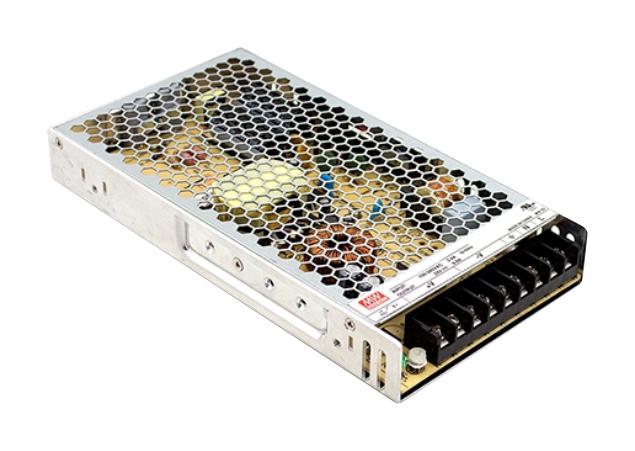

Mean Well Power Supply, Ac-Dc, 24V, 8.8A - LRS-200-24

Features<br>No load power consumption <0.5W for 150W;<0.75W for 200W/350W<br>AC input selectable by switch(LRS-150F Universal AC input / Full range)<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections:Short circuit / Overload / Over voltage / Over temp.<br>Cooling by free air convection (150W/200W);forced air cooling by built-in DC fan (350W)<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)<br>Operating altitude up to 5000 meters<br>LED indicator for power on<br>High efficiency, long life and high reliability<br>Low cost<br>3 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any specAial request, pleACase kindly advise us once place order.

Authentic Taiwan LRS-200-24 200W 8.8A 24V meanwell power switch ultra-thin 3 years warranty

LRS-200-24 AC to DC Single Output 200W 8.8A 24V Switching Power Supply ASIN: B01MRHZSHE

This item will ship LRS-200-24*1pcs,enjoy shopping and best wishes!

Model: LRS-200-24 &lt;/br&gt;<br /> Input: 85 to 264V AC &lt;/br&gt;<br /> Output: 24V 8.8A &lt;/br&gt;<br /> Size: 215x115x30mm &nbsp;(L * W * H) &lt;/br&gt;<br /> 100% load burn-in test &lt;/br&gt;<br /> Small, high power den &lt;/br&gt;

<b>Features</b><br>No load power consumption <0.2W for 35W/50W;<0.3W for 75W/100W<br>Universal AC input / Full range<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections: Short circuit / Overload / Over voltage<br>Cooling by free air convection<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances<br>Operating altitude up to 5000 meters<br>High efficiency, long life and high reliability<br>LED indicator for power on<br>Low cost<br>3 years warranty

<p><b>Features:</b></p> <p> No load power consumption <0.5W for 150W; <0.75W for 200W/350W</p> <p>AC input selectable by switch</p> <p>Withstand 300VAC surge input for 5 seconds</p> <p>Ultra compact and 1U low profile</p> <p>Withstand 5G vibration test</p> <p>High operating temperature up to 70oC</p> <p>Protections: Short circuit / Overload / Over voltage / Over temp.</p> <p>Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)</p> <p>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)</p> <p>Operating altitude up to 5000 meters</p> <p>LED indicator for power on</p> <p>High efficiency, long life and high reliability</p> <p>Low cost</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:115 / 230VAC by switch</p> <p>AC inrush current (max.):Cold start, 60A at 230VAC</p> <p>DC adjustment range:±10% by potentiometer</p> <p>Overload protection Range:110%~140%</p> <p>Overload protection Type:Hiccup mode, auto-recovery</p> <p>Over voltage protection Range:115%~145% rated output voltage</p> <p>Over voltage protection Type:Shut down o/p voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</p> <p>Working temperature:-25~+70°C (refer to output derating curve)</p> <p>Safety standards:UL60950-1 approved</p> <p>EMC standards:Design refer to EN55022 class A</p> <p>Connection:9P/9.5mm pitch terminal block</p> <p>Dimension (LxWxH):215x 115x 30</p>

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

Model：LRS-200-24 <br> Output DC Voltage:24V<br> Output Rated Current:.8.8A<br> Output Current Range:0～8.8A<br> Output Rated Power:211.2W <br> Output Ripple And Noise:150mVp-p<br> Output Voltage Adjustment Range:21.6～28.8V<br> Output voltage accuracy:±1.0%<br> Output linearity adjustment rate:±0.5%<br> Load Regulation:±0.5%<br>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

<b>Features</b><br>No load power consumption <0.2W for 35W/50W;<0.3W for 75W/100W<br>Universal AC input / Full range<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections: Short circuit / Overload / Over voltage<br>Cooling by free air convection<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances<br>Operating altitude up to 5000 meters<br>High efficiency, long life and high reliability<br>LED indicator for power on<br>Low cost<br>3 years warranty

<b>Features</b><br>No load power consumption <0.2W for 35W/50W;<0.3W for 75W/100W<br>Universal AC input / Full range<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections: Short circuit / Overload / Over voltage<br>Cooling by free air convection<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances<br>Operating altitude up to 5000 meters<br>High efficiency, long life and high reliability<br>LED indicator for power on<br>Low cost<br>3 years warranty
