F40G-3063 - Dixon - F40G-3063 | Wilson Company

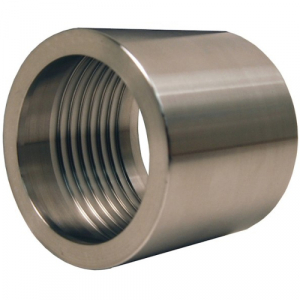

2-1/2" Sanitary Crimp Ferrule 3" to 3-4/64" OD

<p><strong>Dixon, F40G-3063, 2-1/2" AISI 304 Stainless Steel Sanitary Style Crimp Ferrule, 3" - 3-3/64" Hose OD Range</strong></p><p><strong>Construction</strong></p><ul><li>Ferrules have a surface finish of 63 or better</li></ul><p><strong>Applications</strong></p><ul><li>Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.</li></ul><p><strong>Safety notes</strong></p><ul><li>Dixon Sanitary Crimp ferrules are to be used with Dixon Sanitary crimp stems only.</li><li>Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.</li><li>Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. </li><li>Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.</li><li>Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.</li></ul>
