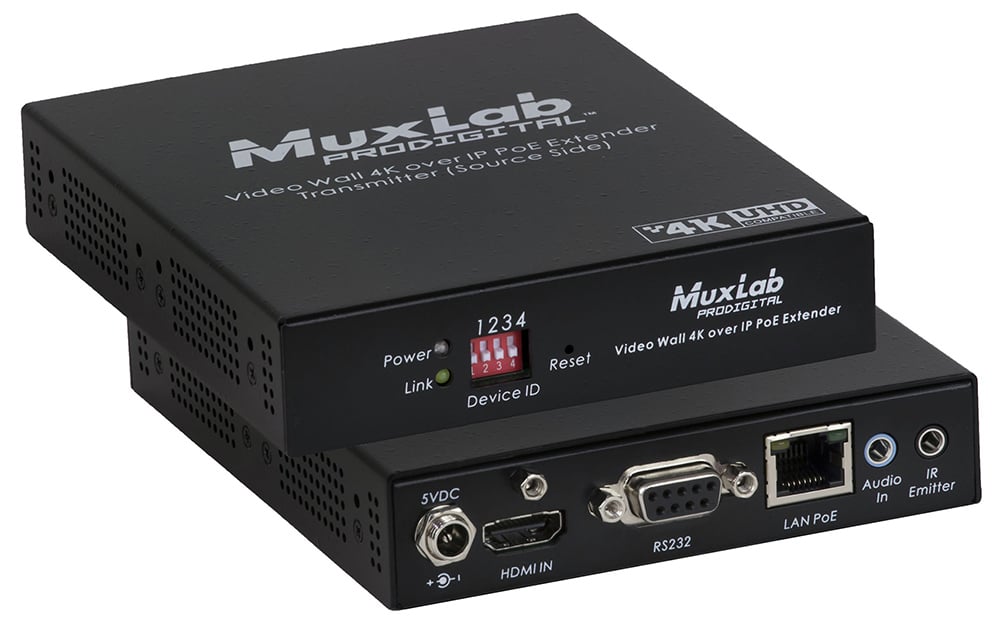

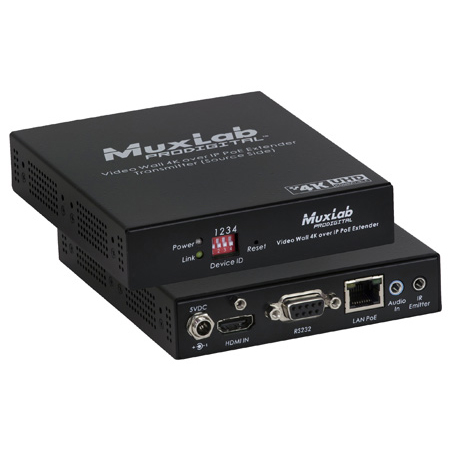

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100?s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch.?The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.<br />Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (MUX-500992) may be purchased separately.</p>

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch. The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size X by Y supporting 100s of screens depending on network bandwidth utilizing one Receiver for each display in the array Each Transmitter 500759TX and Receiver 500759RX can be connected via Cat5e6 cable up to 330ft 100m from an Ethernet Switch The Transmitters and Receivers support PoE PD and may be powered by a PoE PSE Ethernet Switch The kit comes with one 1 Transmitter and one 1 Receiver The IR Emitter and IR Sensor if required may be acquisition separately for IR based remote control applications Features. Video Wall 4K Over IP & PoE Extender TX. Configure a Video Wall array with 100s of displays depending on network bandwidth. Supports up to 4K 30Hz and 1080p 60Hz. Visually lossless video. Supports pointtopoint pointtomultipoint and multipointtomultipoint applications. Transmission up to 330ft over Cat5e6. Supports audio insert audio extract. Supports RS232 and IR transmission for remote control. PoE powered. Control via any web device with use of model 500811. Environment HDMI 14. Devices BluRay projectors monitors TV PC laptops servers supporting HDMI. Bandwidth 300MHz. Signals HDMI 14 protocol. One HDMI receptacle. One RJ45S for Cat 5e6 unshielded or shielded twisted pair. Two 35mm jacks for IR emitter sensor. Two 35mm jacks for audio insert audio extract. One DB9 for the RS232. Four DIP Switches for device ID addressing. Latency Typical one Frame maximum 2 frames. Compression Proprietary Compression. Bandwidth Up to 850Mbps. Network Requirement 1000BaseT with Jumbo Frame. IR Frequency 38 to 56KHz. RJ45 Pin Configuration Reverse Polarity Sensitive Use EIATIA 568A or 586B straightthrough wiring. RJ45 Link Pin 1 Pin 2 Pin 3 Pin 6 Pin 4 Pin 5 Pin 7 Pin 8. Cable One Cat 5e6 or better twisted pair cables required. Power Source This device supports PoE an external p
