Meanwell . LRS-100-24

Authentic Taiwan meanwell switching power supply LRS-100-24 100W 24V4.5A slim 3 year warranty

LRS-100 Series Mean Well Single Output Switching Power Supply

MEAN WELL LRS Series LRS-100-24 is the 108W 4.5A 24V power supply, be used on LED stripes, 3D Printer and Camera System.<br> EU RoHS: Compliant<br>ECCN (US): EAR99<br>Type: Switching<br>Style: Enclosed<br>Input/Output Type: AC/DC<br>Number of Outputs: 1 <br>Output Type: Fixed<br>Output Voltage (V): 24<br>Output Current (A): 4.5<br>Output Power (W): 108<br>Minimum AC Input Voltage (V): 85<br>Maximum AC Input Voltage (V): 264<br>Minimum DC Input Voltage (V): 120<br>Maximum DC Input Voltage (V): 373<br>Minimum Isolation Voltage: 3750VAC<br>Line Regulation: 0.5%<br>Load Regulation: 1%<br>Maximum Input Current (A): 1.9(Typ)<br>Input Frequency (Hz): 47 to 63<br>Tolerance (%): ±2<br>Efficiency (%): 90(Typ)<br>Configurable: No<br>Input Connector Type: Screw Terminal Block<br>Output Connector Type: Screw Terminal Block <br>Power Indicator: Yes<br>Ripple & Noise: 100mV(Max)<br>Medical: No<br>Minimum Operating Temperature (°C): -30<br>Maximum Operating Temperature (°C): 70<br>Product Weight (g): 340<br>Pin Count: 7<br>Mounting: Screw<br>Package Height: 30mm<br>Package Length: 129mm<br>Package Width: 97mm<br>About the quotation for batch order, please contact with the seller directly.

Genuine Mean Well LRS-100-24 Ultra thin Power Supply 100W 24V 4.5A MW ASIN: B071NPJXFB

This item will ship LRS-100-24*1pcs,enjoy shopping and best wishes!

<b>Features</b><br>No load power consumption <0.2W for 35W/50W;<0.3W for 75W/100W<br>Universal AC input / Full range<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections: Short circuit / Overload / Over voltage<br>Cooling by free air convection<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances<br>Operating altitude up to 5000 meters<br>High efficiency, long life and high reliability<br>LED indicator for power on<br>Low cost<br>3 years warranty

<p><b>Features:</b></p> <p>No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W</p> <p>Universal AC input / Full range</p> <p>Withstand 300VAC surge input for 5 seconds</p> <p>Ultra compact and 1U low profile</p> <p>Withstand 5G vibration test</p> <p>High operating temperature up to 70oC</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>Cooling by free air convection</p> <p>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances</p> <p>Operating altitude up to 5000 meters</p> <p>High efficiency, long life and high reliability</p> <p>LED indicator for power on</p> <p>Low cost</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current (max.):Cold start, 45A at 230VAC</p> <p>DC adjustment range:±10% by potentiometer</p> <p>Overload protection Range:110%~150%</p> <p>Overload protection Type:Hiccup mode, auto-recovery</p> <p>Over voltage protection Range:115%~135% rated output voltage</p> <p>Over voltage protection Type:Shut down o/p voltage, re-power on to recover</p> <p>Withstand voltage:3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute</p> <p>Working temperature:-30~+70°C (refer to output derating curve)</p> <p>Safety standards:UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved</p> <p>EMC standards:EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254</p> <p>Connection:5P/9.5mm pitch terminal block</p> <p>Dimension (LxWxH):129x 97x 30</p>

Model: LRS-100-24 </br> Input: 85 to 264V AC </br> Output: 24V 4.5A </br> Size: 129x97x30mm (L * W * H) </br> 100% load burn-in test </br> Small, high power den </br>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

2

100W 24V single output power supplies are perfect for tons of applications-- including industrial automation machinery, industrial control systems, mechanical & electrical equipment, household appliances, and more. Featuring over current, over voltage, short circuit & overheat protections, these power supplies are professionally designed to ensure high efficiency and high reliability. Low cost also makes it more acceptable for general usage.

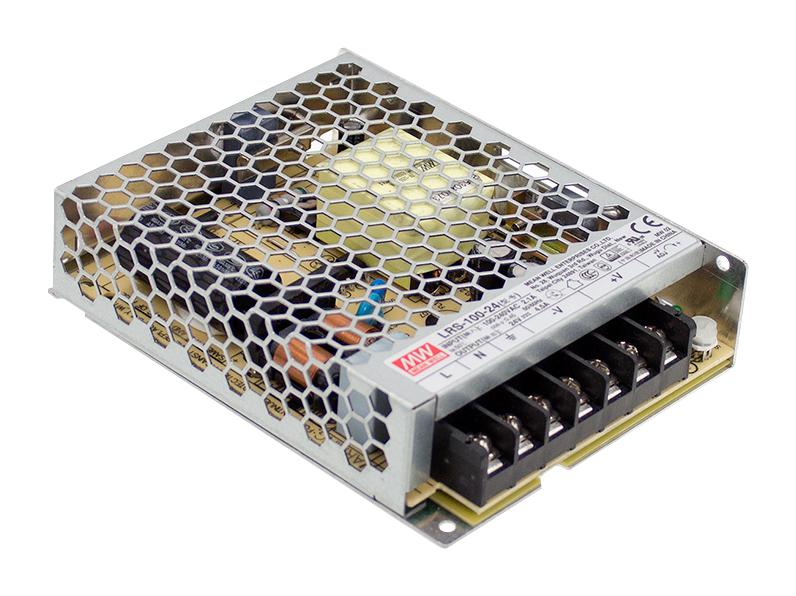

Mean Well LRS-100-24 Switching Power Supply
