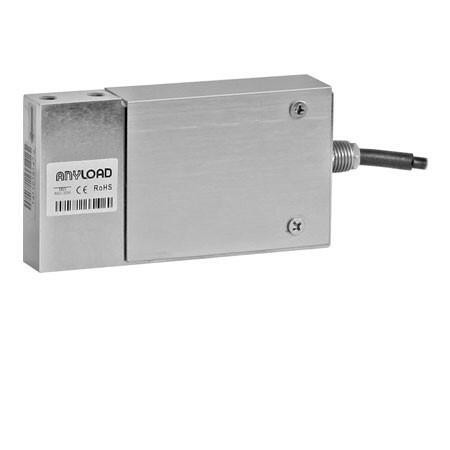

Anyload 108TSST-25lb-YZ Single Point Load Cell - Scales Plus

Anyload . 108TSST-25LB-YZ

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00Anyload
Attribute01108TSST-25lb-YZ
Attribute02CE, RoHS, and Ex
Attribute0325 lb
Attribute04150% capacity
Attribute054.63"
Attribute062.50"
Attribute070.95"
Attribute081/4-20UNF-2B Depth 0.5
Attribute09Stainless Steel
Attribute10Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Attribute1110 V (maximum of 15 V)
Attribute122.0 mV/V ?10%
Attribute13350 (? 3) ohms
Attribute14385 (? 15) ohms
Attribute1514?F to 104?F/-10?C to 40?C
Attribute16Environmentally sealed
Attribute17IP66
Attribute183.1 m
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02Approvals
AttributeKey03Capacity
AttributeKey04Safe Overload
AttributeKey05, length_AttribLength
AttributeKey06, height_AttribHeight
AttributeKey07, width_AttribWidth
AttributeKey08Hole Thread
AttributeKey09Construction
AttributeKey10Cable Color Code
AttributeKey11Rated Excitation
AttributeKey12Full Scale Output
AttributeKey13Output Resistance
AttributeKey14Input Resistance
AttributeKey15Compensated Temperature Range
AttributeKey16Seal Type
AttributeKey17IP Rating
AttributeKey18Cable Length
DimensionUnitinch
Extra Product NameAnyload 108TSST-25lb-YZ Single Point Load Cell - Scales Plus
height2.5
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length4.63
moq, multiple, tierMinQty11
MPN, SKU108TSST-25LB-YZ
qtyInStock0
snippetBuy the top selling Anyload 108TSST-25lb-YZ from Scales Plus and receive free product support from our trained technicians for life!
tierPrice1392
width0.95

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.com108TSST-25LB-YZ111 @ $392.00
