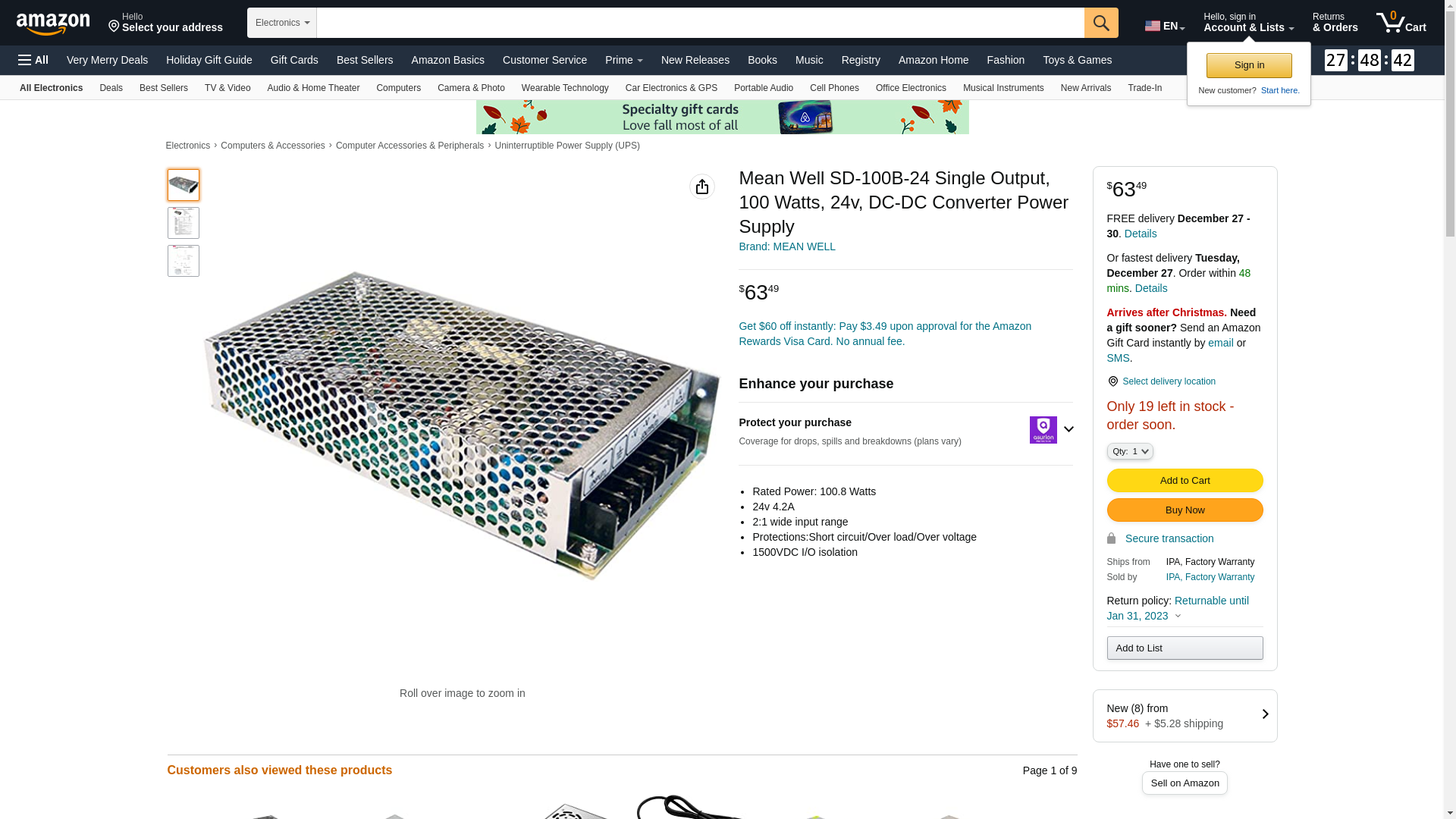

Mean Well Dc-Dc Converter, 24V, 4.2A - SD-100B-24

DC-DC CONVERTER, 24V, 4.2A; No. of Outputs:1 Output; Output Power Max:100W; Output Voltage - Output 1:24V; Output Current - Output 1:4.2A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output RoHS Compliant: Yes

100W Single Output DC-DC Converter (Model B-24)

<b>Features</b><br>2:1 wide input range<br>1500VAC I/O isolation<br>Cooling by free air convection<br>Protections: Short circuit / Over load / Over voltage<br>Built-in EMI filter, low ripple noise<br>100% full load burn-in test<br>Low cost, high reliability<br>2 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.

<p><b>Features:</b></p> <p>2:1 wide input range</p> <p>Protections:Short circuit / Overload / Over voltage</p> <p>1500VAC I/O isolation</p> <p>Built-in EMI filter ,low ripple noise</p> <p>Low cost</p> <p>High reliability</p> <p>2 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:A: 9.5~18VDC; B: 19~36VDC ;C: 36~72VDC ; D: 72~144VDC or 85~132VAC</p> <p>AC inrush current (Typ.): D: 18A~96VDC</p> <p>DC adjustment range:5V: 4.5~5.5VDC, 12V: 11~16VDC, 24V: 23~30VDC</p> <p>Over voltage protection:5V: 5.75~6.75V/10% load, 12V: 16.8~20V/10% load, 24V(A): 31.5~37.5V/5% load, 24V(B,C,D): 31.5~37.5V/10% load , Protection type :Hiccup mode, recovers automatically after fault condition removed</p> <p>Overload protection: 105~135% rated output power , Protection type: Hiccup mode, recovers automatically after fault condition removed</p> <p>Withstand voltage:I/P-O/P: 1.5KVAC ,I/P-F/G: 1.5KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: -15~ +60ºC(SD-100A),-10~ +60ºC(SD-100B/C/D)(Refer to "Derating Curve")</p> <p>Safety standards:IEC60950-1 CB approved by TUV(for D type only), EAC TP TC 004 approved</p> <p>EMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A ,EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):199x 98x 38</p>

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

This item will ship SD-100B-24*1pcs + Free gift,enjoy shopping and best wishes!
