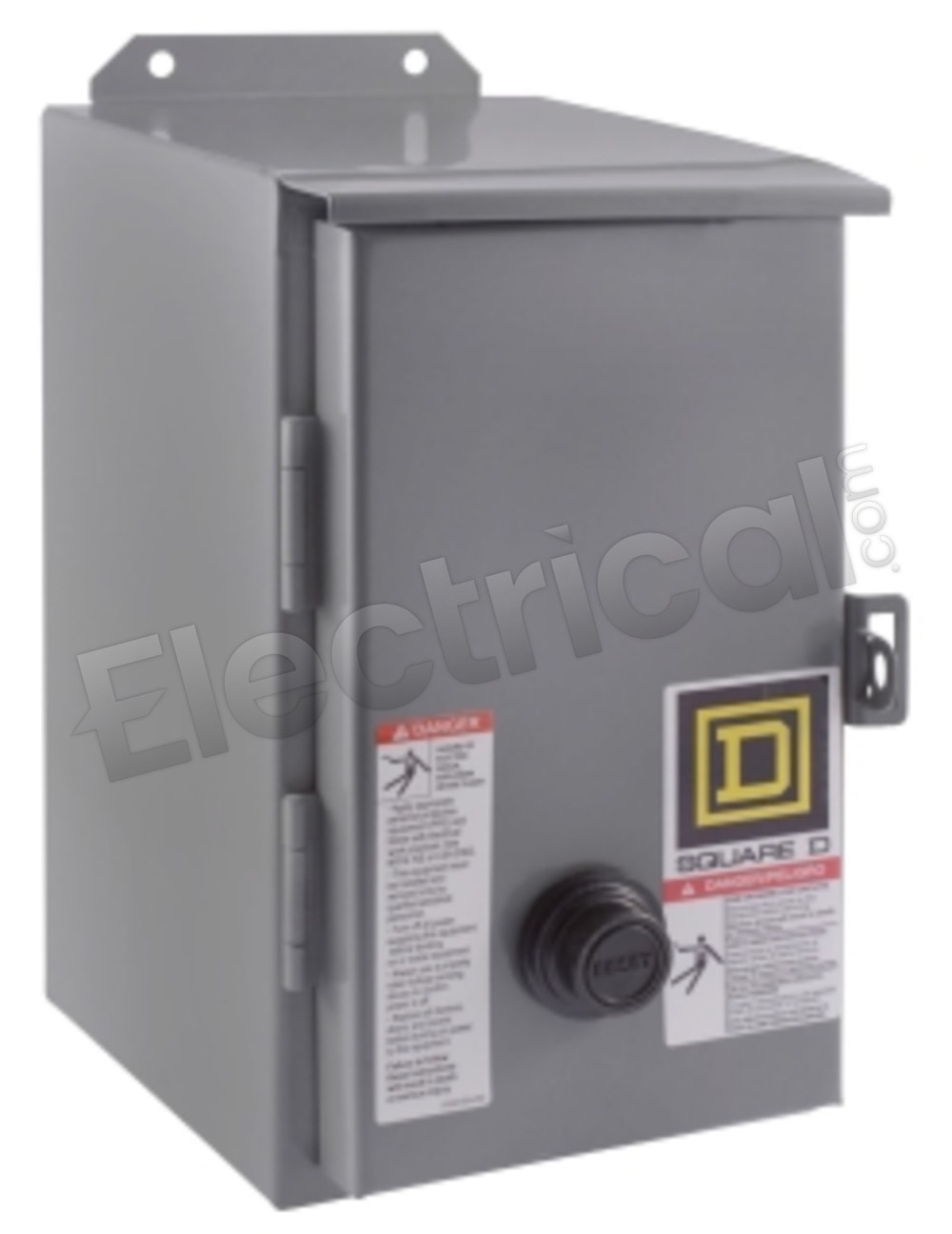

8536SCA3V08 Square D NEMA Motor Starter, Type S, Nonreversing, Size 1, 27A, 10 Hp At 460 VAC, 5 Ka Sccr, 3 Phase, 3 Pole, Meltin

Magnetic Motor Starter, NEMA, 208V, 3P, 27A

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 1<br /> Amps AC: 27<br /> Coil Volts: 208VAC<br /> Enclosure NEMA Rating: 12,3R<br /> HP @ 3 Phase - 240V: 7-1/2<br /> HP @ 3 Phase - 480V: 10<br /> Action: Nonreversing<br /> Number of Poles: 3<br /> HP @ 3 Phase - 208V: 7-1/2<br /> HP @ 3 Phase - 575V: 10<br /> Height: 12.75"<br /> Width: 6.38"<br /> Depth: 8.53"<br /> Standards: UL Listed/CSA Certified<br /> Starter Type: NEMA<br /> Hz: 60<br />
