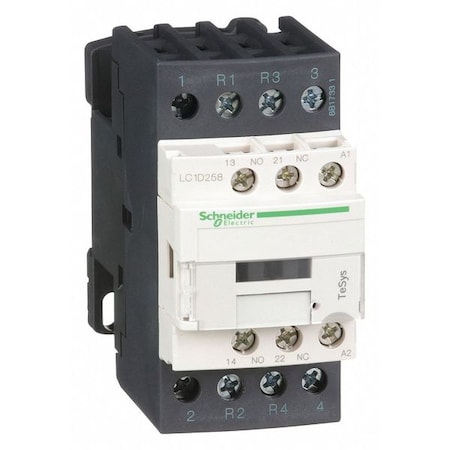

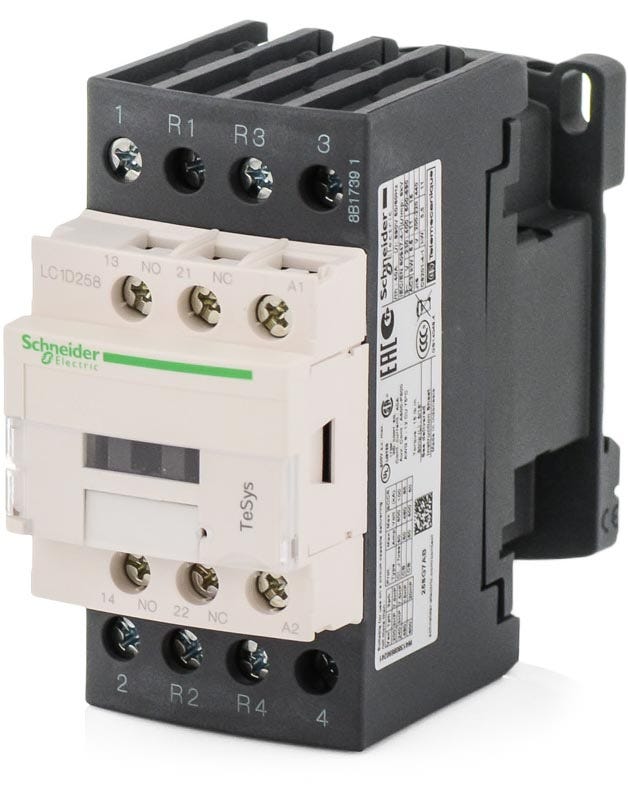

Schneider Electric Relay Contactor, 600Vac, 25A - LC1D258G7

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.13 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. This listing is for Each. Brand Schneider Electric Sub Brand TeSys D;TeSys Deca Warranty Description Contractual Warranty: 18 months Country of Origin Indonesia Made in USA No Application Resistive load Coil Power Rating 7.5-7.5 VA 60 HZ 0.3 20 A Degrees C)-7-7 VA 50 HZ 0.3 20 A Degrees C) Coil Voltage 120 V AC 50/60 Hz Connection Control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible without cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²solid without cable end;control circuit screw clamp terminals 2 1-4 mm²solid without cable end;power circuit connector 1 2.5-10 mm²flexible without cable end;power circuit connector 2 2.5-10 mm²flexible

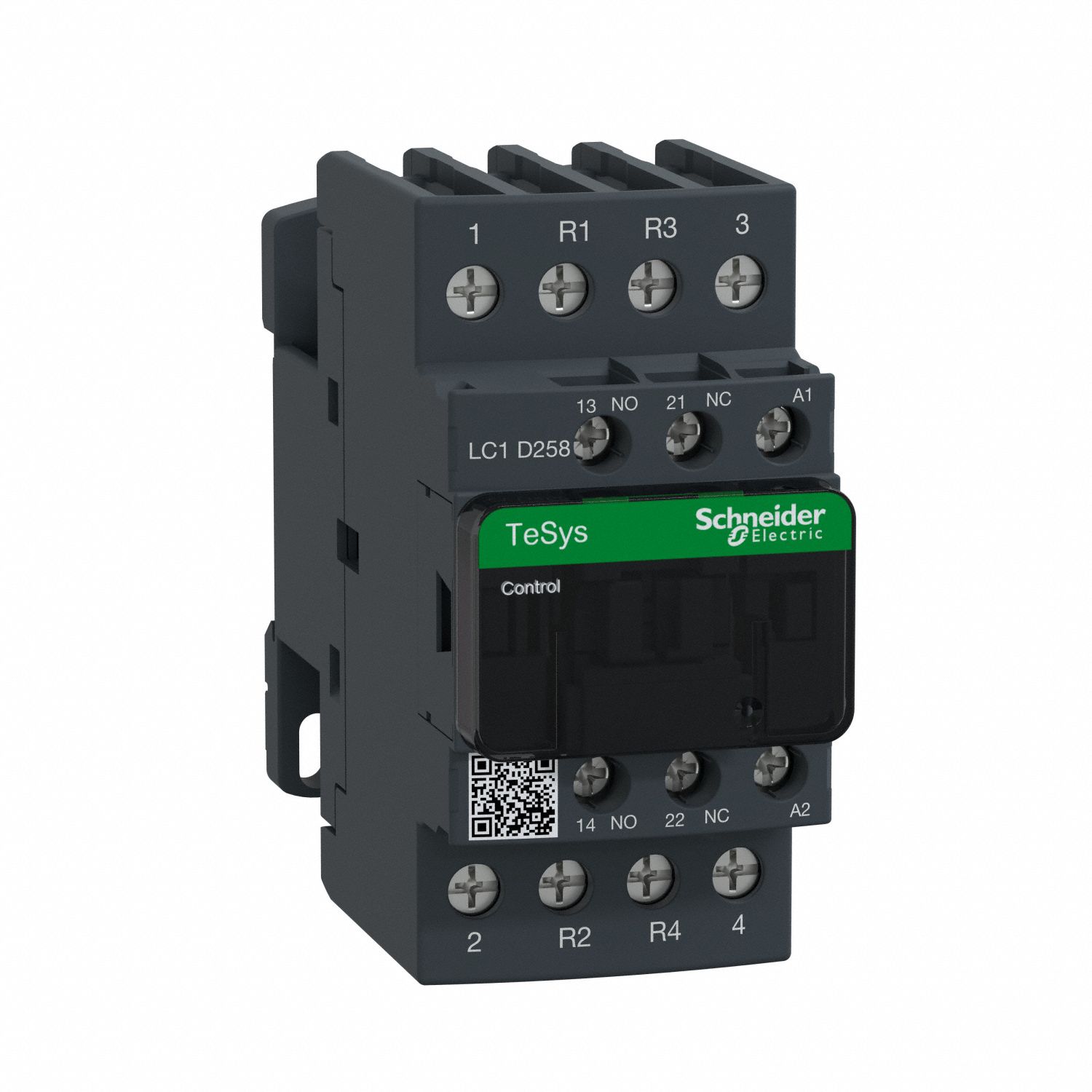

LC1D258G7 TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 -40A - 120V AC coil
