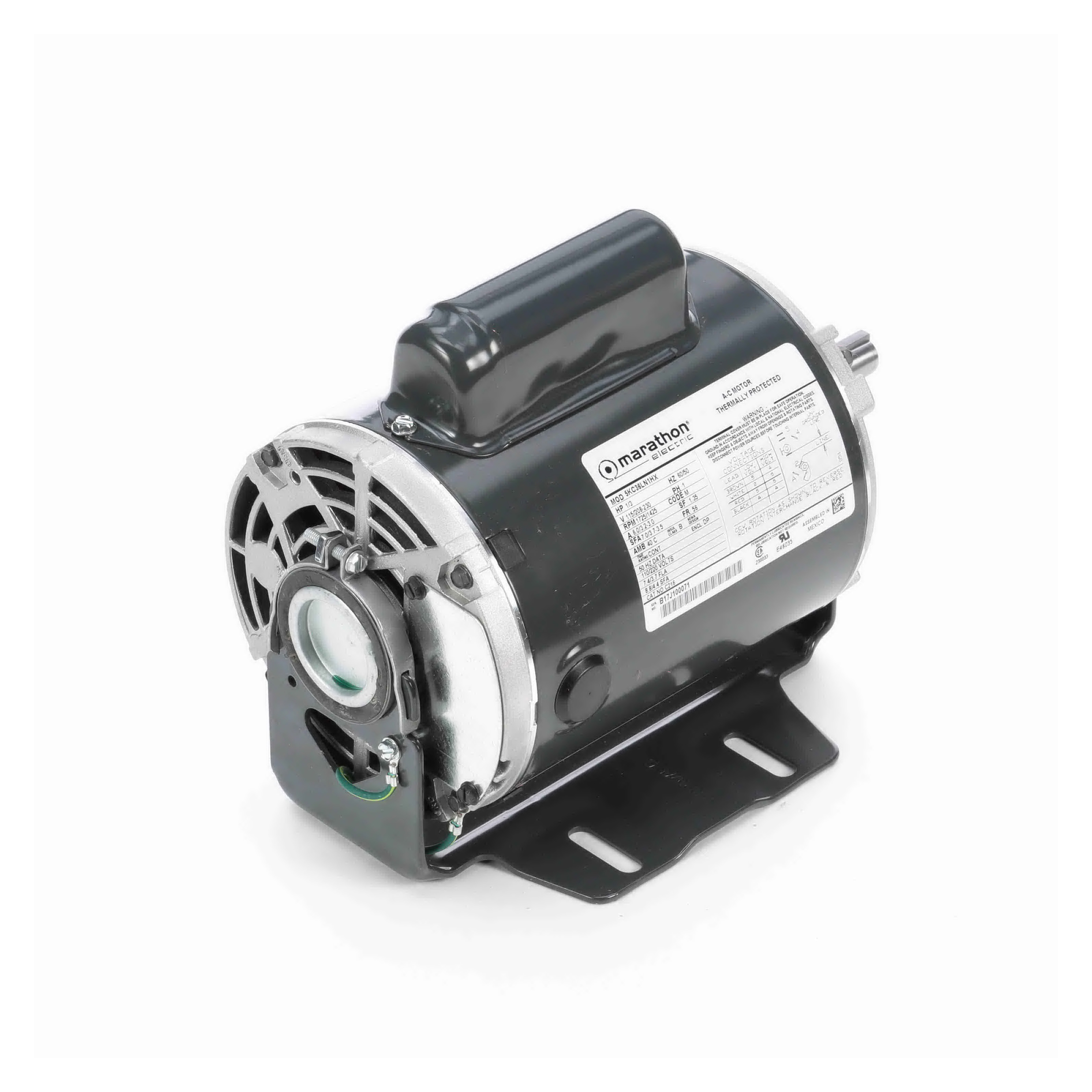

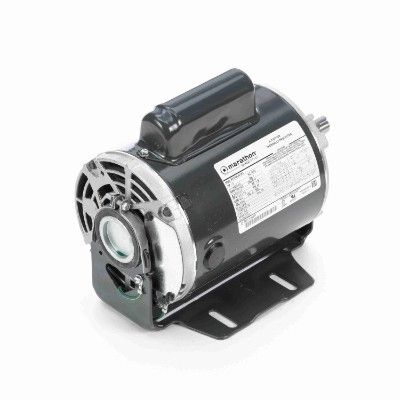

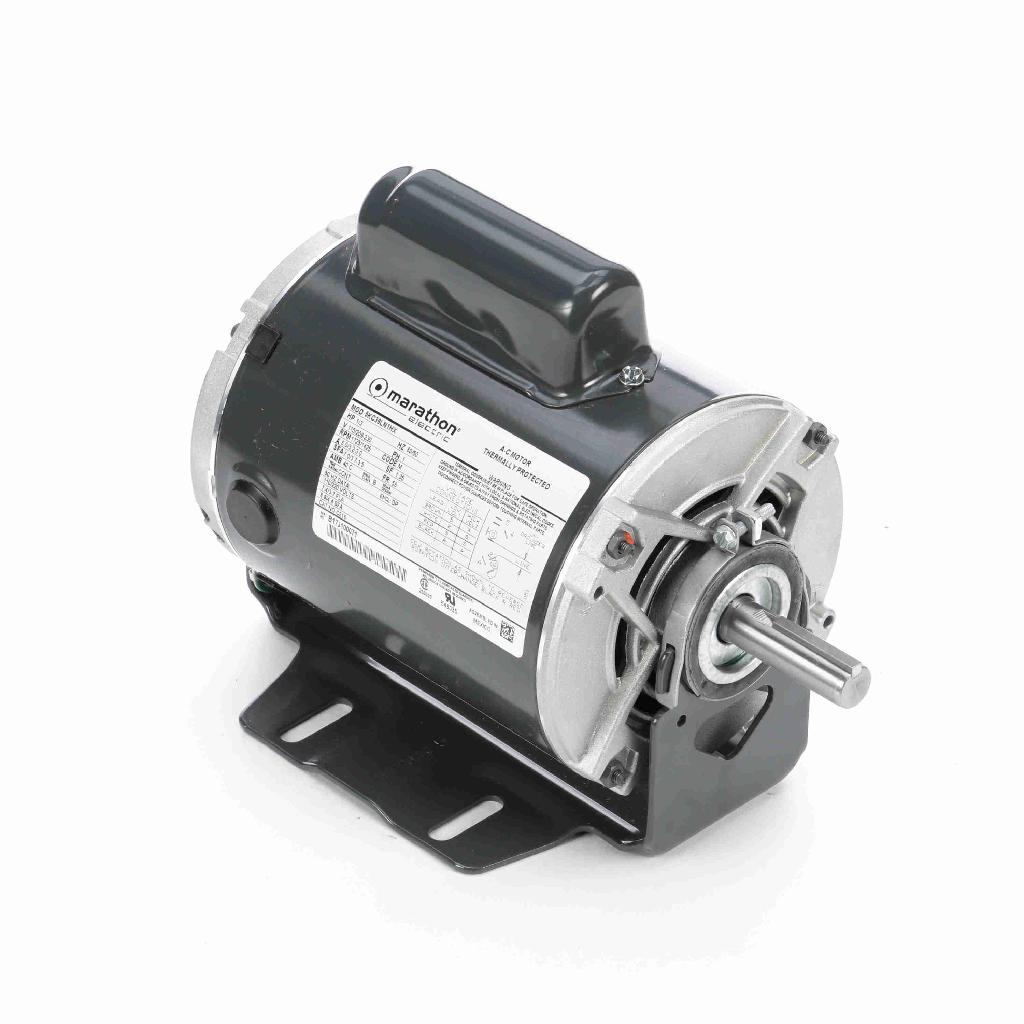

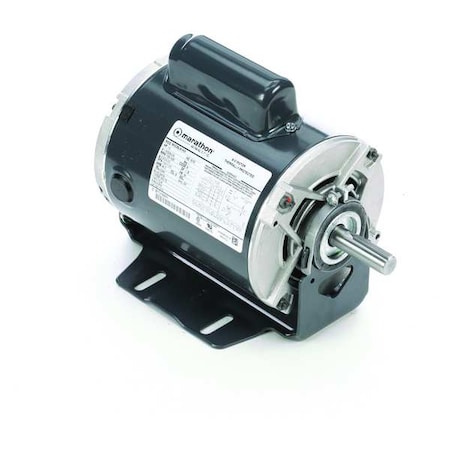

Marathon 5KC36LN1X, General Purpose Motor, 33/100 HP, 115/208-230 Volts, 3.0 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 56 Frame, Resilient Base, Footless Mounted, Rolled Steel Frame, Catalog No: C216

'General Purpose Motor, Capacitor-Start, Open Dripproof, 1/3 HP, Nameplate RPM 1725, 56 Frame, Voltage 115/208-230, 60/50 Hz, 1 Phase, 6.0/3.2-3.0 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Thermal Protection Auto, Ins. Class B, 1.35 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-5/16 In., Motor Shaft Design Keyed'

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/3<br /> Nameplate RPM: 1725<br /> Frame: 56<br /> Voltage: 115/208-230<br /> Hz: 60/50<br /> Phase: 1<br /> Full Load Amps: 6.0/3.2-3.0<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: Auto<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 8-7/16"<br /> Overall Length: 10-5/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E14133), CSA (MC236833)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 62.0%<br /> Inverter Rated: No<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
