Kyocera

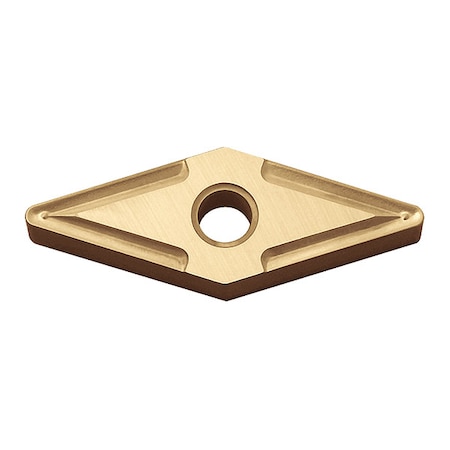

<ul><li>Insert for External Turning, Copying, Facing, Undercutting</li><li>4 Cutting Edges</li><li>High strength for higher productivity. Excellent wear resistance built for long tool life</li></ul><p>Product Details:</p><ul><li>Insert Style: VNMG</li><li>Insert Size: 332</li><li>Insert Grade: CCX</li><li>Material: Cermet</li><li>Material Grade: n/a</li><li>Coating Process: CVD</li><li>Coating / Composition: TiCN/Al2O3/Tin</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3750</li><li>[IC] Inscribed Circle (mm): 9.53</li><li>[S] Thickness (Decimal Inch): 0.1875</li><li>[S] Thickness (mm): 4.76</li><li>[RE] Corner Radius (Decimal Inch): 0.0315</li><li>[RE] Corner Radius (mm): 0.80</li><li>[D1] Hole Diameter (Decimal Inch): 0.1500</li><li>[D1] Hole Diameter (mm): 3.81</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 35</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Cast Iron</li><li>Shape: Diamond</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Clamp / Screw</li><li>Number of Cutting Edges: 4</li><li>Application: External Turning, Copying, Facing, Undercutting</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Roughing</li><li>Compatible Holders (Partial): DVJNR...-3…, DVJNL...-3…, DVLNR...-16, DVLNL...-16, DVPNR...-3…, DVPNL...-3…, DVPNR...-16, DVPNL...-16, DVVNN...-16, MVJNR...-3…, MVJNL...-3…, MVLNR...-16, MVLNL...-16, MVVNN...-3..., PVLNR...-16..., PVLNL...-16..., PVPNR...-16…, PVPNL...-16…, PVVNN...-16…</li></ul>
