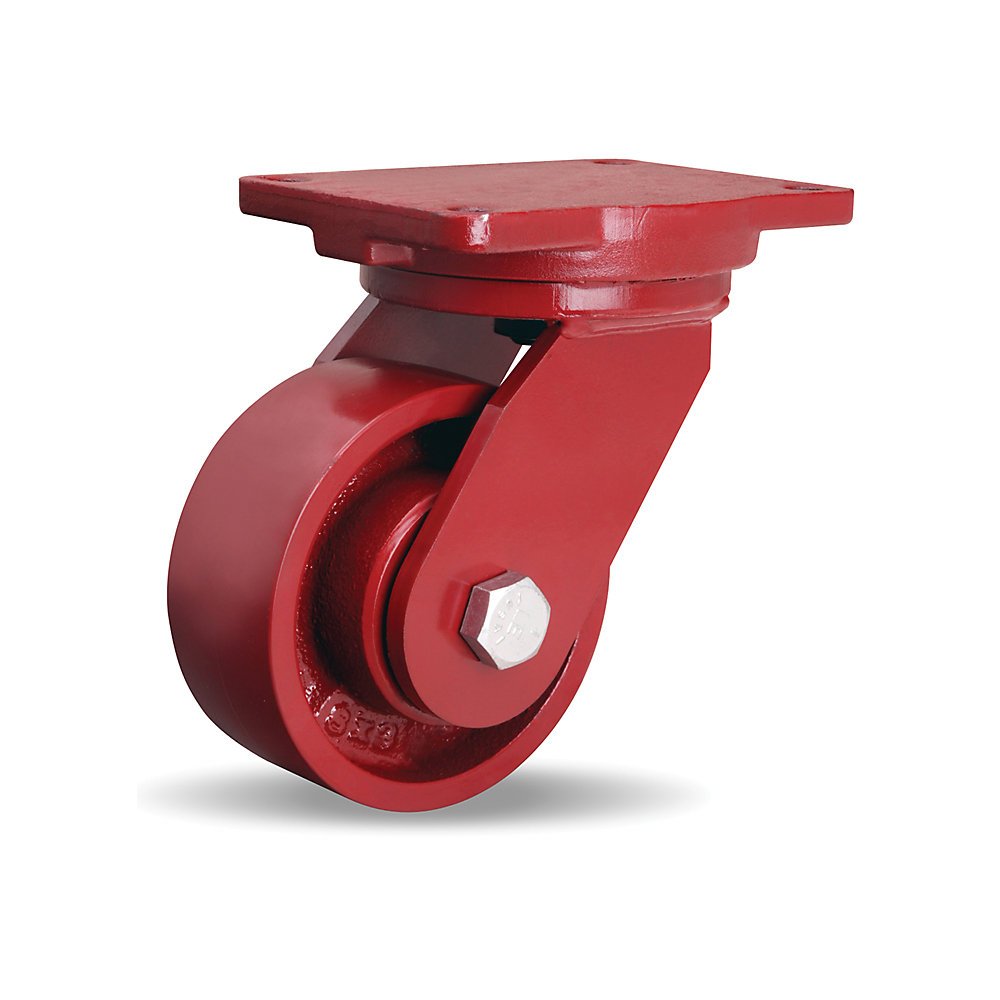

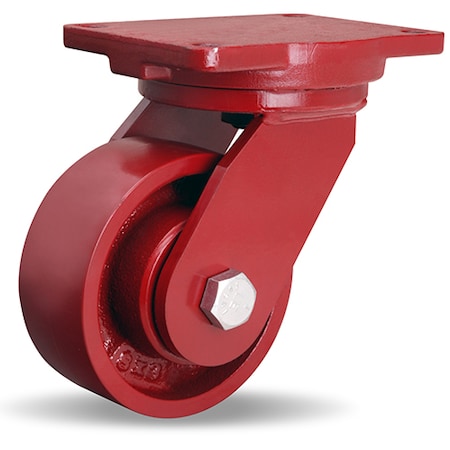

Extra Heavy Duty Swivel Caster, 6" x 2-1/2" Metal Wheel, 3/4" Precision Tapered Bearing

Hamilton . S-EHD-6MT

Gallery

Attributes

Brand name, Manufacturer name, Brand, ManHamilton
Manufacturer, Label, Publisher, StudioHamilton Hamilton Caster & Mfg Co
Attribute006
Attribute012.5
Attribute020.5
Attribute036-1/8 x 7-1/2
Attribute048.5
Attribute05Standard
Attribute06, Attribute10Metal
Attribute072200
Attribute08, height, length, moq, multiple, tierMinQty1, width, Case, NumberOfItems, Number_of_items1
Attribute09, Attribute14Swivel Caster
Attribute11Forged Steel
Attribute12Crimson Red
Attribute13Powder Coat
Attribute154 1/8 x 6 1/8
Attribute16W-625-MT-3/4
Attribute17-40 to 320 deg(F)
Attribute18, Attribute22No
Attribute19Tapered
Attribute20D
Attribute21ICWM
Attribute23Extra Heavy Duty
AttributeKey00Wheel Dia.
AttributeKey01Wheel Width
AttributeKey02Mounting Bolt Dia.
AttributeKey03Plate Size
AttributeKey04Mounting Height
AttributeKey05Caster Wheel Shape
AttributeKey06Caster Wheel/Tread Material
AttributeKey07Load Rating
AttributeKey08Number of Wheels
AttributeKey09Item
AttributeKey10Caster Core Material
AttributeKey11Caster Frame Material
AttributeKey12Core Color
AttributeKey13Frame Finish
AttributeKey14Caster Product Group
AttributeKey15Inside Bolt Hole Spacing
AttributeKey16Replacement Wheel
AttributeKey17Caster Temp. Range
AttributeKey18Thread Guards
AttributeKey19Caster Wheel Bearings
AttributeKey20Caster Plate Hole Pattern
AttributeKey21Standards
AttributeKey22Non-Marking
AttributeKey23Series
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, ModelNumber, Model_number, PartNumber, Part_numberS-EHD-6MT
Extra Product NameExtra Heavy Duty Swivel Caster, 6" x 2-1/2" Metal Wheel, 3/4" Precision Tapered Bearing
UPCNone
UnitOfMeasureEA
Weight29 29.0 29.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead15
extendedQty-2
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3718679
tierPrice1297.00
urlhttps://www.zoro.com/hamilton-extra-heavy-duty-swivel-caster-6-x-2-12-metal-wheel-34-precision-tapered-bearing-s-ehd-6mt/i/G3718679/
Product GroupHome Improvement
ASIN, AsinB00UVPOCYE
BindingMisc.
Bullet_pointCapacity: 2200 lbs. Overall Height: 8-1/2" Wheel Dia.xW: 6x2-1/2" Wheel Type: Metal
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
Colorred
DisplayNameHardware
FeatureWheel Dia.xW: 6x2-1/2"
FetchTime1545329063 1572273529 1572541132 1665184414 1686380587 1690067599 1704374104 1708226040
Height1000 2.5 2.50 500 75 8.5 8.50
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHamilton® Extra HD Forged Swivel 6 x 2-1/2 Metal Tapered 2200 Lb. Caster
Item_package_weight, Item_weight29.0
Item_type_keywordplate-casters
Length0.0 0.00 6.0 8.5 8.50
Linkhttps://m.media-amazon.com/images/I/416ejlIensL._SL75_.jpg https://m.media-amazon.com/images/I/416ejlIensL.jpg https://m.media-amazon.com/images/I/51RKU71RGYL.jpg
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeMetal Steel
ProductGroupBISS Basic Home Improvement
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameINDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Extra Heavy-Duty Casters feature precision integrated HPI swivel technology that improves the bearings element of contact and more than doubles the number of contact points.-1/2" thick drop forged steel mounting plate. -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main HPI load bearing is 5-5/16" outside diameter with hardened raceways to 58-62HRC and ground to surface finish 16 micro inches; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Product_site_launch_date2015-03-18T15:01:32.319Z
SkuS-CH-6MT S-EHD-6MT
TitleHamilton Extra Heavy-Duty Casters - 6"Dia.X2-1/2"W Metal Wheel - -3/4" Precision Tapered Roller Bearings - Swivel - Red Hamilton174; Extra HD Forged Swivel 6 x 2-1/2 Metal Tapered 2200 Lb. Caster Hamilton® Extra HD Forged Swivel 6 x 2-1/2 Metal Tapered 2200 Lb. Caster
URLhttp://ecx.images-amazon.com/images/I/416ejlIensL._SL75_.jpg https://m.media-amazon.com/images/I/416ejlIensL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 2.5 500 6.0 6.00 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3718679111 @ $297.00
National Supply Network17490021-211 @ $317.64
motionindustries.com01074254111 @ $419.61
AmazonSCB00UVPOCYE1-211 @ $296.57
AmazonTPB00UVPOCYE111 @ $296.57

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton® Extra HD Forged Swivel 6 x 2-1/2 Metal Tapered 2200 Lb. Caster
Brand: Hamilton
HAMILTON Extra Heavy-Duty Casters feature precision integrated HPI swivel technology that improves the bearings element of contact and more than doubles the number of contact points.-1/2" thick drop forged steel mounting plate. -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main HPI load bearing is 5-5/16" outside diameter with hardened raceways to 58-62HRC and ground to surface finish 16 micro inches; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Details
  • Wheel Dia.xW: 6x2-1/2"
  • Wheel Type: Metal
  • Capacity: 2200 lbs.
  • Overall Height: 8-1/2"
