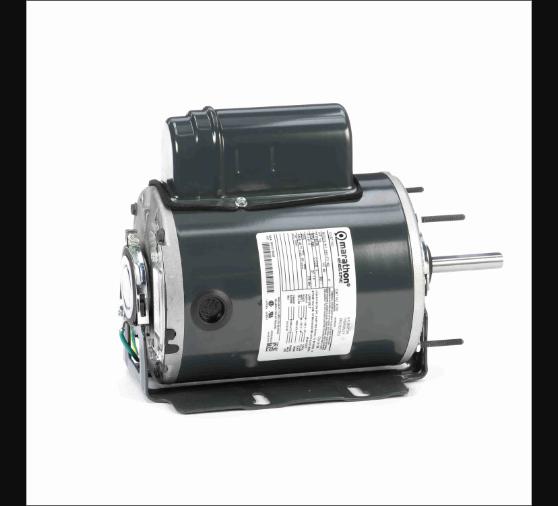

Marathon 048A17T118, General Purpose Farm Duty Motor, 1/4 HP, 115/230 Volts, 1.8 Amps, 1 Phase, 60 Hz, 1625 RPM, TEAO Enclosure, 48Y Frame, Resilient Base - Extended Studs, Rolled Steel Frame, Catalog No:X030

Keep fans moving in industrial applications with this belt drive motor. It features a totally enclosed, air-over motor design, which is dust-tight to resist the ingress of dust, moisture, and other airborne particles. It mounts within the airflow of the fan to stay cool. It also features a steel frame to help provide durability and long service life.<br /><br /> Item - Farm Duty Motors: Agricultural Fan Motor<br /> Motor Application: Farm Duty<br /> Motor Sub Application: Poultry/Livestock Direct Drive Fan<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> HP: 1/4<br /> Nameplate RPM: 1625<br /> Frame: 48Y<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/230<br /> Full Load Amps: 3.6/1.8<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.00<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 2-9/16"<br /> Length Less Shaft: 8-1/2"<br /> Overall Length: 11-1/16"<br /> Ins. Class: B<br /> RPM Range: 1601-1700<br /> Duty: Continuous<br /> Nominal Efficiency: 68%<br /> Standards: UL Recognized, CSA Certified<br /> Item: Agricultural Fan Motor<br />
