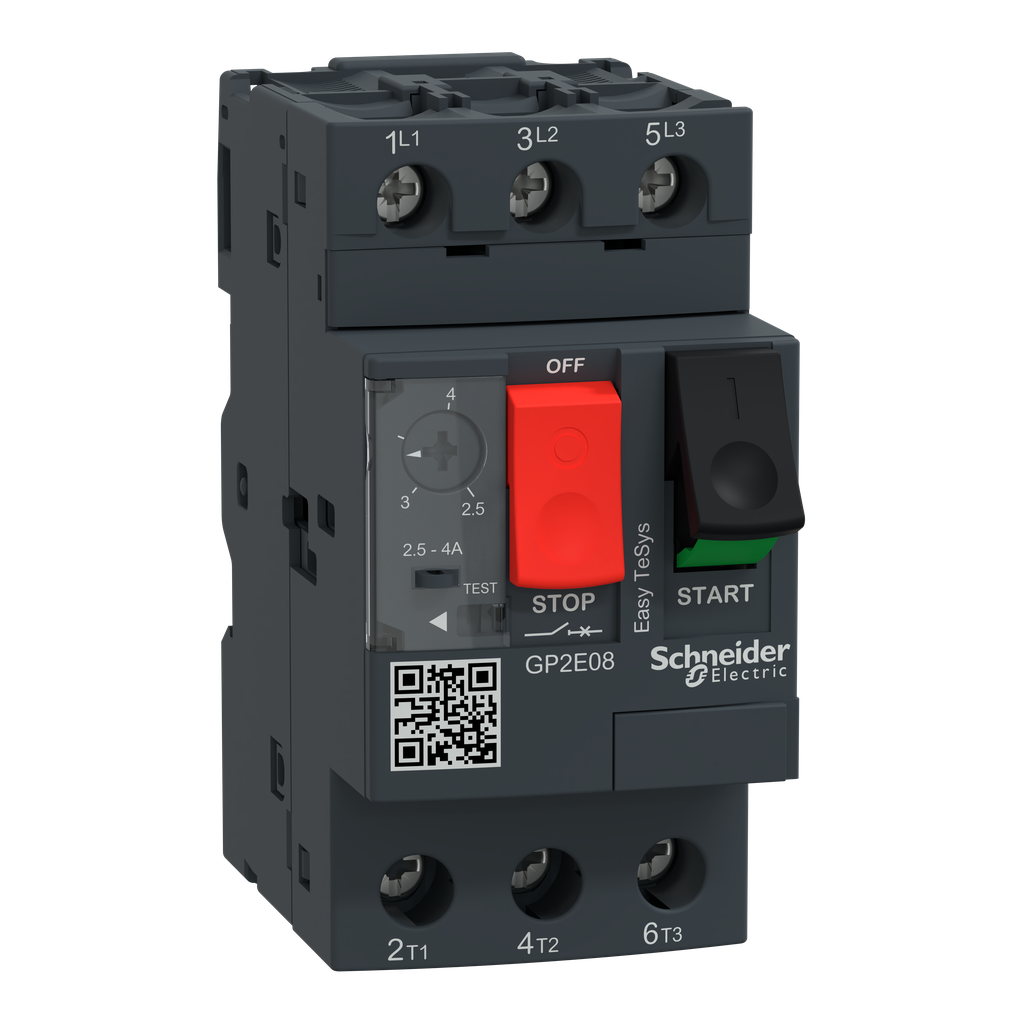

Manual motor controller, Easy TeSys, 3P, 2.5-4A, thermal magnetic, screw clamp terminals | Mayer Electric

SQUARE D . SQDGP2E08

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00motor controller
Attribute01Easy TeSys GP2E
Attribute02Easy TeSys
Attribute03motor
Attribute04GP2E
Attribute05thermal-magnetic
Attribute064 A
Attribute07, Attribute27690 V AC 50/60 Hz IEC 60947-2
Attribute0889 mm
Attribute09yes IEC 60947-4-1
Attribute10continuous IEC 60947-4-1
Attribute11AC
Attribute1251-51 A
Attribute134 A IEC 60947-4-1
Attribute1425 cyc/h
Attribute15any position
Attribute16screw clamp terminals 1-6 mm? - solid || screw clamp terminals 1.5-6 mm? - flexible without cable end || screw clamp terminals 1-4 mm? - flexible with cable end || screw clamp terminals AWG 18...AWG 8)
Attribute17AC-3 IEC 60947-4-1 || category A IEC 60947-2
Attribute180.26 kg
Attribute196 kV IEC 60947-2
Attribute2035 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Attribute21100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
Attribute22push-button
Attribute232.5 W
Attribute24100000 cycles AC-3 440 V
Attribute25100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Attribute26yes IEC 60947-1
Attribute282.5-4 A
Attribute291.7 N.m screw clamp terminals
Attribute30100000 cycles
Attribute313P
Attribute3245 mm
Attribute3378.5 mm
Attribute3450/60 Hz IEC 60947-4-1
Attribute35, Attribute36Yes
Attribute37ENVPEP121004EN
Attribute38Green Premium product
Attribute39Reference contains Substances of Very High Concern above the threshold
Attribute40Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Attribute41Product out of China RoHS scope. Substance declaration for your information.
Attribute42ENVEOLI121004EN
Attribute43Compliant
Attribute44cUL
Attribute45IK04
Attribute46-20-60 ?C
Attribute47EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || cUL
Attribute48-40-80 ?C
Attribute49TH
Attribute50IP20 IEC 60529
Attribute516561.68 ft (2000 m)
Attribute52960 ?C IEC 60695-2-1
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Range
AttributeKey03Device Application
AttributeKey04Device Short Name
AttributeKey05Trip Unit Technology
AttributeKey06Line Rated Current
AttributeKey07[Ue] Rated Operational Voltage
AttributeKey08, height_AttribHeight
AttributeKey09Phase Failure Sensitivity
AttributeKey10Rated Duty
AttributeKey11Network Type
AttributeKey12Magnetic Tripping Current
AttributeKey13[Ith] Conventional Free Air Thermal Current
AttributeKey14Maximum Operating Rate
AttributeKey15Operating Position
AttributeKey16Connections - Terminals
AttributeKey17Utilisation Category
AttributeKey18, Weight_AttribNet Weight
AttributeKey19[Uimp] Rated Impulse Withstand Voltage
AttributeKey20Fixing Mode
AttributeKey21[Ics] Rated Service Short-Circuit Breaking Capacity
AttributeKey22Control Type
AttributeKey23Power Dissipation Per Pole
AttributeKey24Electrical Durability
AttributeKey25Breaking Capacity
AttributeKey26Suitability For Isolation
AttributeKey27[Ui] Rated Insulation Voltage
AttributeKey28Trip Unit Rating
AttributeKey29Tightening Torque
AttributeKey30Mechanical Durability
AttributeKey31Poles Description
AttributeKey32, width_AttribWidth
AttributeKey33, length_AttribDepth
AttributeKey34Network Frequency
AttributeKey35Rohs Exemption Information
AttributeKey36Mercury Free
AttributeKey37Environmental Disclosure
AttributeKey38Sustainable Offer Status
AttributeKey39Reach Regulation
AttributeKey40California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey41China Rohs Regulation
AttributeKey42Circularity Profile
AttributeKey43Eu Rohs Directive
AttributeKey44Product Certifications
AttributeKey45Ik Degree Of Protection
AttributeKey46Ambient Air Temperature For Operation
AttributeKey47Standards
AttributeKey48Ambient Air Temperature For Storage
AttributeKey49Protective Treatment
AttributeKey50Ip Degree Of Protection
AttributeKey51Operating Altitude
AttributeKey52Fire Resistance
DimensionUnitmm
Extra Product NameManual motor controller, Easy TeSys, 3P, 2.5-4A, thermal magnetic, screw clamp terminals | Mayer Electric
UPC3606481063410
Weight0.26
WeightUnitkg
depth, length78.5
height89.0
jsonUrlData/Product/SQUARE-D-Manual-motor-controller-Easy-TeSys-3P-2-5-4-A-thermal-magnetic-screw-clamp-terminals-3606481063410
jsonUrlData287c66a83-aa32-4cac-8584-ade40063f750
moq, multiple, tierMinQty11
MPN, SKUSQDGP2E08
qtyInStock4
tierPrice149.46
width45.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGP2E081411 @ $49.46
