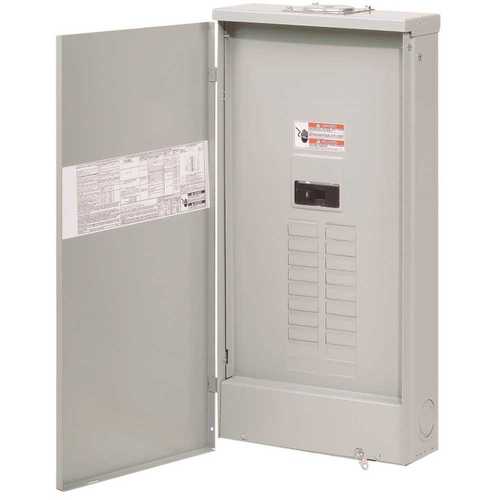

Eaton BR2040B200R BR 200 Amp 20 Space 40 Circuit Outdoor Main Breaker Loadcenter with Cover

10 years . BR2040B200R

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute03, Attribute0710 years
Attribute00, Voltage120/240
Attribute01Surface
Attribute020
Attribute04UL
Attribute05200 Amp
Attribute06, Attribute15, Attribute17, atoms, moq, multiple, tierMinQty11
Attribute08ANSI Certified, UL Listed
Attribute09Outdoor
Attribute10Main Breaker
Attribute1114.31
Attribute12200
Attribute13120/240 Volt
Attribute1440
Attribute1620
Attribute1839121101
AttributeKey00Voltage
AttributeKey01Mounting Type
AttributeKey02Number of Outlets
AttributeKey03Warranty
AttributeKey04Certifications
AttributeKey05Amperage
AttributeKey06Phase
AttributeKey07Manufacturer Warranty
AttributeKey08Certifications and Listings
AttributeKey09Indoor/Outdoor
AttributeKey10Load Center Type
AttributeKey11Load center width (in.)
AttributeKey12Maximum Amperage
AttributeKey13Maximum Voltage
AttributeKey14Number of Circuits
AttributeKey15Number of Phases
AttributeKey16Number of Spaces
AttributeKey17Pack Size
AttributeKey18UNSPSC
CategoryIdL3Load Centers
CategoryL1Electrical & Gas
CategoryL2Distribution & Breakers
Extra Product NameEaton BR2040B200R BR 200 Amp 20 Space 40 Circuit Outdoor Main Breaker Loadcenter with Cover
MPNBR2040B200R
qtyInStock-2
qtySourceFieldMap
snippet<p>Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR2040B200R is an outdoor 200 Amp main breaker with 20 spaces and 40 circuits.</p><ul><li>Amperage rating: 200</li><li>Bus material: aluminum</li><li>Rated NEMA 3R for outdoor use</li><li>Feed type: bottom or top which allows for straight-in wiring that saves labor and material</li><li>Interrupt rating: 25 kAIC</li><li>Mounting: combination</li><li>Number of circuits: 40</li><li>Number of spaces: 20</li><li>Phase: single-phase</li><li>Tangential center knockout easier installation for conduit applications</li><li>2/0 lug easily removable and can be installed in any location on the neutral bar</li><li>Neutral bus (strap) is easily removable for sub-panel applications</li><li>Bonding Z-strap provides easy field conversion for service entrance applications</li><li>Twin neutral bars minimum 150% neutral capacity</li><li>Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability</li><li>Single keyhole mounting - 1 keyhole at the top and bottom provides easier mounting and leveling</li><li>Used with: type BR breakers</li></ul>
tierPrice1424.29

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareBR2040B200R1-211 @ $424.29
