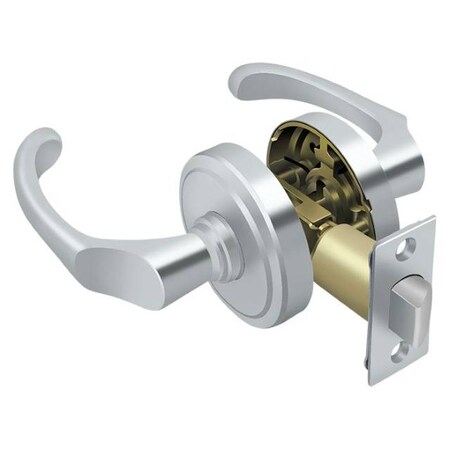

Highlights: Finish: Bright Chrome Material: Solid Brass Function: Passage Series: Residential Door Hardware Design: Chapelton Handing: Reversible Strike: Square corner full lip strike Backset: 2-3/8" - 2-3/4" Adjustable Backset Passage set Chapelton design lever

Deltana Universal Handing Chapelton Lever Passage Deltana Port Royal Series levers made of solid brass, designed to match with doors 1 3/8" ~ 2" in thickness, and have an adjustable backset of 2 3/8" ~ 2 3/4". Specifications: U/M: Each Additional Deltana Information PRCLR3U Specification Sheet View Deltana Manufacturer Warranty Shop All Deltana Products Do not use prints made from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance. Features: Exceeds criteria for BHMA Grade 2 Security certification Constructed from brass for long lasting beauty and durability Handing is reversible from left to right for maximum versatility Installs quick and easily into standard prepared doors Includes a square corner latch faceplate Deltana includes a Limited 3 year and 1 year finish manufacturer warranty Product Technologies: Reversible Handing: The handing on this leverset is reversible to accommodate both left- and right-hand doors. We remove the guesswork and make it easy to choose the leverset you want. Specifications: Backset: Adjustable 2-3/8" or 2-3/4" Cross Bore: 2-1/8" Edge Bore: 7/8" Door Thickness: 1-3/8" to 2" Handing: Reversible Left or Right Lever Length: 4" Interior Projection: 2-1/4" Exterior Projection: 2-1/4" Latch Faceplate: Square Corner Material: BrassProduct Variations: PRCLR2: Chapelton Privacy Leverset PRCLR3 (This Model): Chapelton Passage Leverset PRCLR4: Chapelton Single Dummy Leverset
