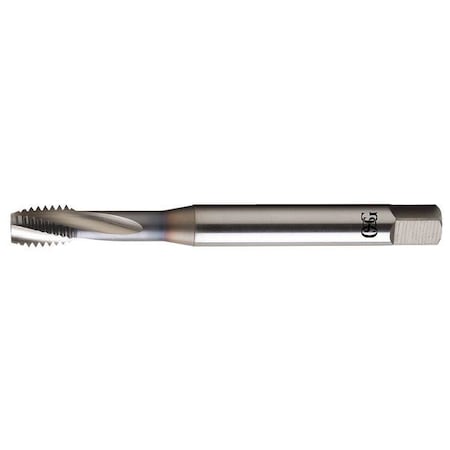

These taps are designed for tapping alloy steel. They have a TiCN coating that protects them from wear and is harder and more wear-resistant than a TiN coating. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S. Coolant-through taps have holes that allow coolant to flow to their tip to reduce heat and friction during threading tasks. This listing is for each. Technical Specification Item Spiral Flute Tap Thread Size Thread Standard Metric Fine Tap Material High Speed Steel Tap Finish TiCN Thread Length 9.00 mm Overall Length 100.00 mm 75% Thread Drill Size 10.78 Thread Limit 6H Thread Direction Right Hand Number of Flutes 3 Tap Length Standard DIN Tap Shank Standard DIN Primary Material Application Steel 65% Thread Drill Size 10.94 mm Coolant Fed Coolant Through Drill Bit Size 10.70mm, 10.78mm, 10.86mm, 10.94mm, 11.03mm Extended Neck Yes Features High Performance Spiral Flute Taps for Alloy Steels Helix Angle 15 Degrees Material Grade - Machining 13113 Measurement System Metric Primary Material Application ISO Code P Secondary Material Application All Materials Secondary Material Application ISO Code H, K, N, P Shank Length 51.00 mm Shank Type - Machining Straight Square Size 6.98mm Tap Chamfer Bottom Thread Limit / Class of Fit 6H Thread Pitch 1.25mm Series 13113 Shank Dia. 9.32 mm Standards DIN Tap Grouping Individual Tap Style Spiral Flute Tap Thread Size
