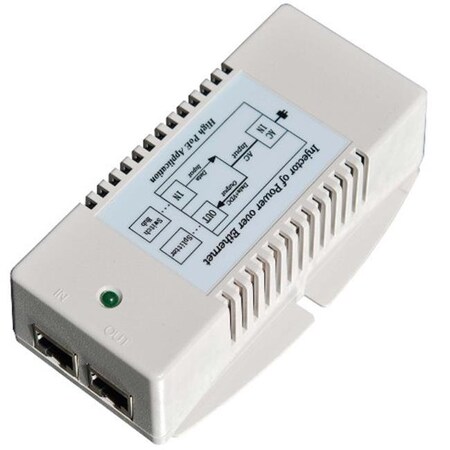

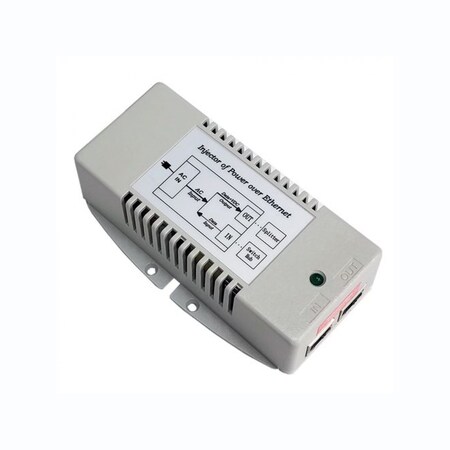

TYCON SYSTEMS, INC TP-POE-HP-48G 48 (56V 50W )HIGH POWER GIGABIT POE POWE

The TP-POE-HP-48G Gigabit High Power Over Ethernet Power Sources offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions. They accept Gigabit data-in to a shielded RJ45 Jack and provide Gigabit data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). The TP-POE-HP are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 48V DC voltage at 50W on the output. They have various protections for surge, short circuit and overload.

Features<br> Remotely Power Equipment thru CAT5 Cable up to 100m<br> Built in Ethernet and AC Surge Protection<br> Autoranging Switching Power Supply<br> Short Circuit, Over Current and Over Voltage Protection<br> High Power Up to 50W<br> Passive PoE<br> 10/100/1000Mb<br> High Temperature Industrial Operation<br> Compact size – Floor / Desktop / Wall Mount<br> I.T.E. Power Supply, UL Listed<br><br>Applications<br> Wireless Access Points and Client Devices<br> IP Phone and Security Camera Systems<br><br>The TP-POE-HP-48G offered by Tycon Power are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the “R” model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).<br><br>The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The high power models up to 50W. They have 48-56V DC Output with load regulation within 5%. The CI model has a special current sense LED which changes color when a PoE device is plugged onto the CAT5 cable.<br><br>If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.
