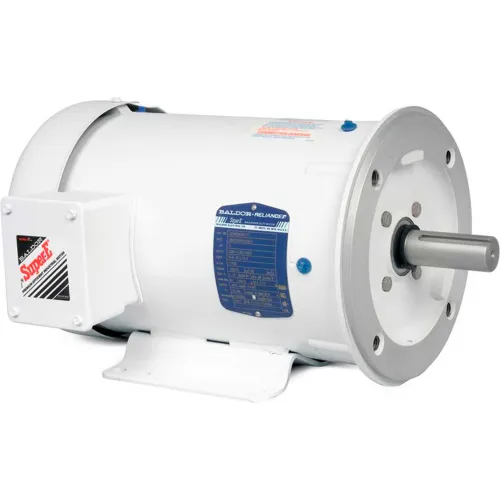

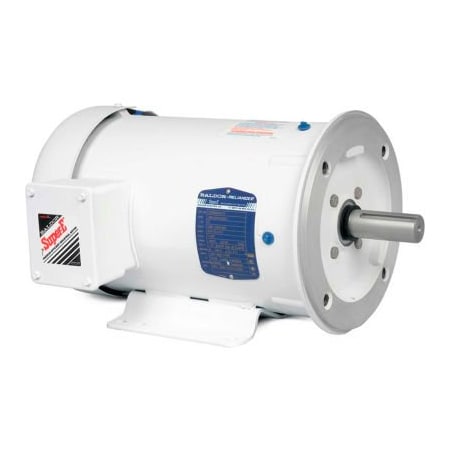

Baldor CEWDM23933T, White Washdown Motor, 15 HP, 230/460 Volts, 18.0 Amps, 3 Phase, 1765 RPM, 60 Hz, TEFC Enclosure, 254TC Frame, C-Face, 3942M Motor Type, Steel Frame

230/460 Volts15.00 hp Output1800 RPMThree PhaseTEFC Enclosure254TC Frame Size18.00 A FL Amps92.4 % FL EfficiencyC-Face Drive End Flange TypeMounting: Foot Mounted

Baldor Electric, CEWDM23933T, 15HP, 1765RPM, 3PH, 230V;460V, 254TC Frame, C-Face Flange, Foot Mount, TEFC, Washdown Duty

Baldor CEWDM23933T15HP 1765RPM 3PH 60HZ 254TC 3942MTEFC

<p><ul><li>Standard NEMA BA Dimension 300 Series stainless steel hardware</li><li>Moisture sealant on bolt heads, between frame and endplates</li><li>Neoprene gaskets</li><li>Power Off/Manual Release</li><li>Resets automatically</li><li>NEMA Premium Efficiency and inverter-ready</li><li>230/460V brakes are connected in conduit box</li><li>Applications: Food processing and other applications that regularly expose the motor to high-pressure washdown</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Category:-General Purpose Motor (Painted) </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-15.0 hp, 15 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-230/460 V </li><li> Frame Size:-254TC </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed/C-Face Flange </li><li> Full Load Current:-18.00 A </li><li> Full Load Efficiency:-92.40 % </li><li> Amps @ Voltage:-18.0 A @ 460 V; 36.0 A @ 208 V; 36.0 A @ 230 V </li><li> Volts @ Frequency:-230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-1.63 in </li><li> Overall Length (C-Dimension):-23.57 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Steel </li><li> Insulation Class:-F </li><li> IP Rating:-55 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Harmonization Code:-8501.52.4000 </li><li> Weight:-226.00 lbs </li><li> Applications:-Food processing and other applications where motors receive washdown on a regular basis. </li><li> Additional Details:-300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation. Super-E motors have NEMA Premium efficiency and 3 year warranty. </li></ul></p>

Pressure Washer; 15HP; 254TC Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face and Foot Mounted; Base; 1-5/8 Shaft Diameter; 6-1/4" Base to Center of Shaft; 23.57" Overall Length"
