Order V6EPB-B-S-2-MI by W.E. Anderson Series V6 Mini-Size Flow Switch - US Mega Store

W.E. Anderson . V6EPB-B-S-2-MI

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute11Gases or liquids compatible with wetted materials
Attribute01, Attribute12-4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx or KC) ATEX Compliant AT, IECEx IEC Option and KC (KC Option), Ambient Temperature -4 to 167°F (-20 to 75°C) Process Temperature: -4 to 220°F (-20 to 105°C)
Attribute02, Attribute13Brass lower body with no tee models 1000 psig (69 bar), 303 SS lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2 bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000 psi (138 bar), low flow models 1450 psi (100 bar)
Attribute03, Attribute14Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only). ATEX 0344 II 2 G Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). EC-type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0: 2009; EN 60079-1: 2007. IECEx Certified: For Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp≤75°C; KTL Certificate Number: 2012-2454-75
Attribute04, Attribute15UL models: 5A @125/250 VAC. CSA, ATEX and IECEx models: 5A @ 125/250 VAC (V~); 5A res., 3A ind. @ 30 VDC (V ). MV option: .1A @ 125 VAC (V~). MT option: 5A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
Attribute05, Attribute16UL models: 18 AWG, 18" (460 mm) long. ATEX/CSA /IECEx models: terminal block
Attribute06, Attribute173/4" male NPT standard, 3/4" female NPT on junction box models
Attribute07, Attribute181/2" male NPT on models without a tee
Attribute08, Attribute19Switch can be installed in any position but the actuation/deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values
Attribute09, Attribute20Custom calibration, bushings, PVC tee, reinforced vane, DPDT relays
Attribute10, Attribute21ATEX, CE, CSA, IECEx, KTL, UL
AttributeKey00, AttributeKey11Service
AttributeKey01, AttributeKey12Temperature Limits
AttributeKey02, AttributeKey13Pressure Limit
AttributeKey03, AttributeKey14Enclosure Rating
AttributeKey04, AttributeKey15Electrical Rating
AttributeKey05, AttributeKey16Electrical Connections
AttributeKey06, AttributeKey17Conduit Connections
AttributeKey07, AttributeKey18Process Connection
AttributeKey08, AttributeKey19Mounting Orientation
AttributeKey09, AttributeKey20Options not Shown
AttributeKey10, AttributeKey21Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Flow
CategoryL4W.E. Anderson V6EPB-B-S-2-MI
ConditionNEW
Extra Product NameOrder V6EPB-B-S-2-MI by W.E. Anderson Series V6 Mini-Size Flow Switch - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUV6EPB-B-S-2-MI
qtyInStock2 Weeks Factory Lead Time

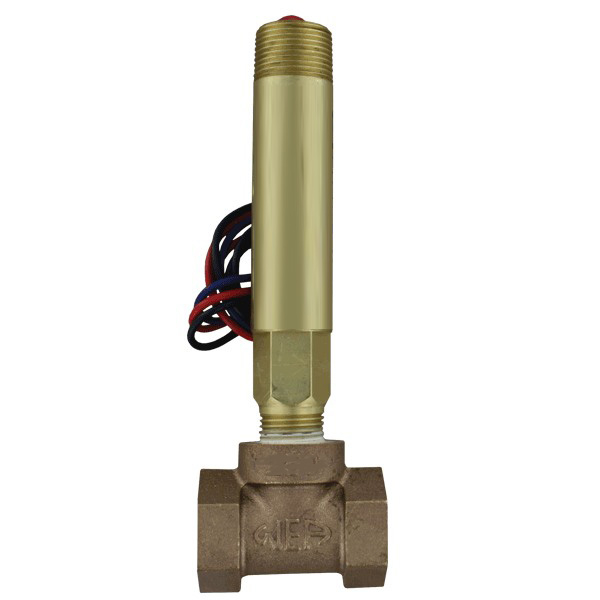

snippet<p><strong>W.E. Anderson, V6EPB-B-S-2-MI, Series V6 Flotect Mini-Size Flow Switch, Brass Upper Housing, SPDT, 3/4" </strong> </p> <p>Explosion-proof </p> <p><strong>Surprisingly compact, the Series V6 Flotect&#174; Flow Switch </strong> is engineered to specifically monitor liquid, gas, or air flows. Operation is simple and dependable with no mechanical linkage as the flow switch is magnetically actuated. The lower body holds the flow vane and one magnet, which controls the switch actuating magnet in the separate upper housing. In most applications the switch is normally off with the pipeline flow forcing the vane against the vane spring. As the flow decreases the vane spring pushes back the vane, actuating the switch to signal an alarm or shutdown. </p> <p><strong>Product Applications </strong> </p> <ul><li>Protects pumps, motors and other equipment against low or no flow </li> <li>Controls sequential operation of pumps </li> <li>Automatically starts auxiliary pumps and engines </li> <li>Stops liquid cooled engines, machines and processing when coolant flow is interrupted </li> <li>Shuts down burner when air flow through heating coil fails </li> <li>Controls dampers according to flow </li> <li>Signals alarm when emergency shower in use </li> </ul> <p><strong>Features </strong> </p> <ul><li>Leak proof lower body machined from bar stock </li> <li>Choice of models in a tee with calibrated vane or field adjustable trimmable vane </li> <li>Weatherproof </li> <li>Explosion-proof </li> <li>Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down </li> <li>High pressure rating of 1000 psig </li> <li>Low flow model offers field adjustable set point </li> <li>Easy installation, simply insert the tee in the pipeline and complete electrical connections </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>ATEX Approval </li> <li>ATEX Certificate </li> <li>ATEX QAN </li> <li>CE Approval </li> <li>CSA Approval-Industrial Control Equipment </li> <li>IECEx Certificate </li> <li>UL-Switches-US </li> </ul>
tierPrice1294.1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comV6EPB-B-S-2-MI12 Weeks Factory Lead Time11 @ $294.10
heavydutydepot.comV6EPB-B-S-2-MI111 @ $282.60
MegadepotV6EPB-B-S-2-MI111 @ $282.60
