3M MFP-H-3-16-CR Polyvinalidene Fluoride 48 Stick w-Header SmBx 12-Bx

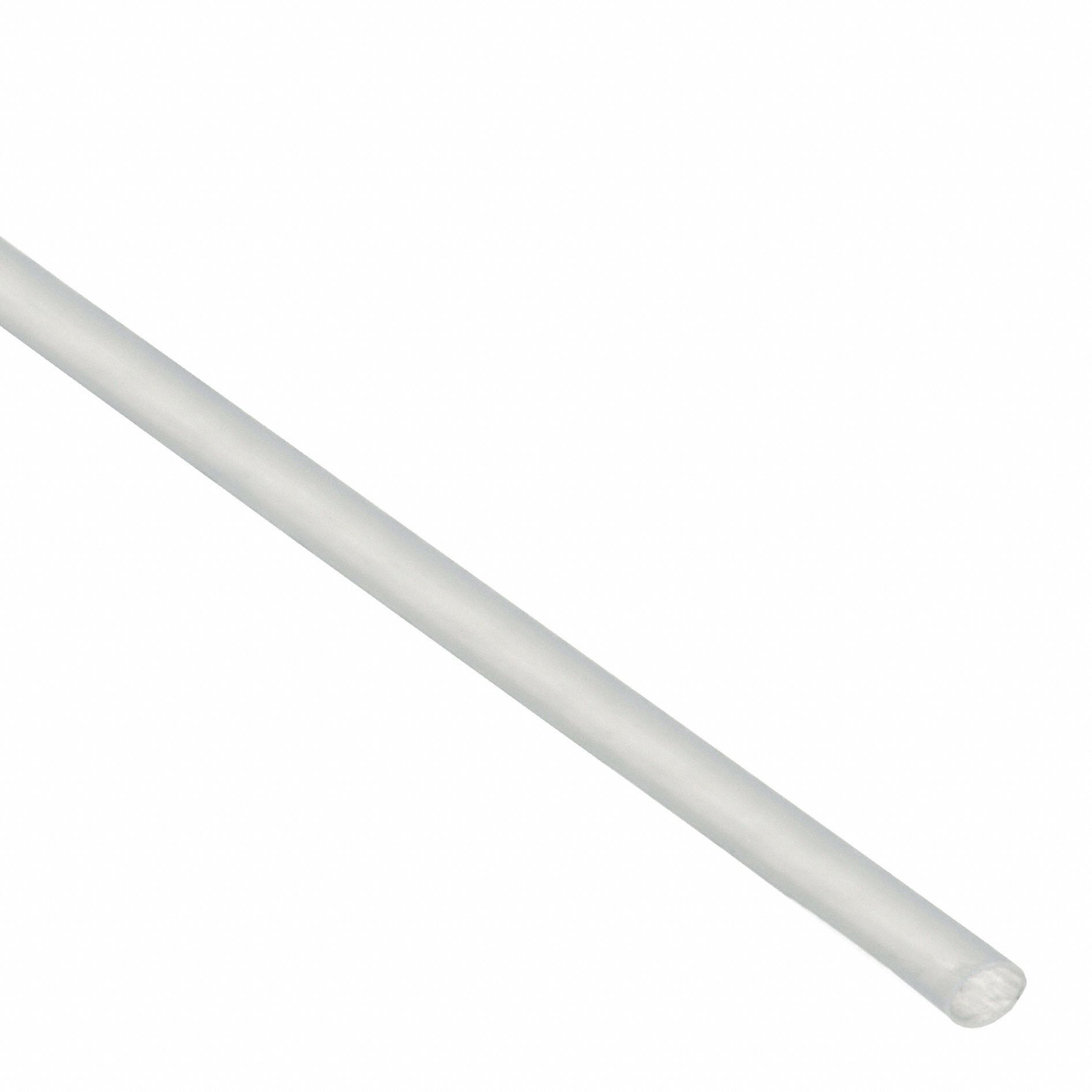

3M MFP-H-3/16-CR Polyvinalidene Fluoride 48" Stick w/Header SmBx 12/BxThe 3M MFP-H-3/16-CR Polyvinalidene Fluoride Tubing has outstanding abrasion resistance and cut-through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents.When heated in excess of 347F (175C), the MFP-H-3/16-CR rapidly shrinks to a skintight fit. It is rated for continuous operation from -67F (-55C) to 347F (175C).The MFP-H-3/16-CR is recommended for shrink-fit protection and strain relief of wires, solder joints, terminals and connections. It has a 2:1 shrink ratio.3M MFP-H-3/16-CR features: Agency Approvals: UL Recognized, CSA Certified and AMS 3632; Applicable Specifications: SAE-AMS-DTL-23053, 23053/8 and 23053/18, Class 1; China RoHS - Below MCV:Yes; Color: Clear; Dielectric Strength: 900 Volt; Elongation: 350 Percent; EU RoHS Compliant:Yes; Expanded Inner Diameter: 3/16 Inch; Flammability Rating: UL 224 VW-1 / CSA Oft; Length: 48 Inch; Material: Polyvinylidene Fluoride; Mil Spec: AMS-DTL-23053/8 and AMS-DTL-23053/18, Class 1; Non-Corrosive: Yes; Operating Temperature Range (Celsius): -55 Degrees C to +175 Degrees C; Recovered Inner Diameter: 0.03 Inch; Shrink Ratio: 2:1; Tensile Strength: 5500 Pound-Force Per Square Inch;
