100-AL-SS - Adapter x 150# Flange - Cam & Groove - Dixon Valve

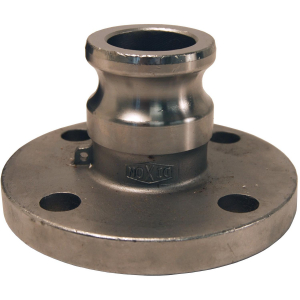

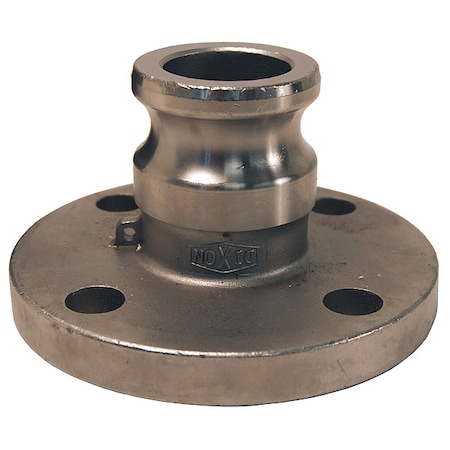

<p><strong>100-AL-SS, Dixon&reg; Cam &amp; Groove Adapter x 150# Flange, 1"</strong></p><p><strong>Applications</strong></p><ul><li>Designed for use with liquids, consult Dixon for specific recommendations</li></ul><p><strong>Use</strong></p><ul><li>Flanges are designed to mate with #150 flange</li></ul><p><strong>Specifications</strong></p><ul><li>Produced to interchange with all product produced to Commercial Item Description A-A-59326D</li></ul><p><strong>Construction</strong></p><ul><li>Flange has raised face</li></ul><p><strong>How It Works</strong></p><ul><li>To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.</li><li>Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.</li></ul><p><strong>Safety Notes</strong></p><ul><li>Under no circumstances should cam and groove couplings be used for compressed air or steam service!</li><li>Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70&deg;F with a standard seal installed. </li></ul>
