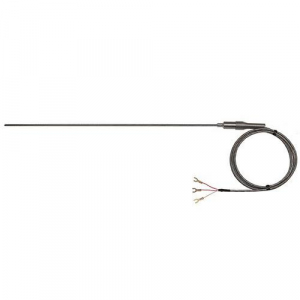

Order WD-93822-18 by Digi Sense RTD Bendable Probe, 4ft SS Braid Cable - US Mega Store

Digi Sense . WD-93822-18

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDigi Sense
Attribute00, Attribute11RTD
Attribute01, Attribute12-58
Attribute02, Attribute13932
Attribute03, Attribute14-50
Attribute04, Attribute15500
Attribute05, Attribute16+/-1.1°C, +/-0.12% of reading
Attribute06, Attribute17Spade Lugs
Attribute07, Attribute18316 Stainless Steel
Attribute08, Attribute1918
Attribute09, Attribute20Braided SS
Attribute10, Attribute2148
AttributeKey00, AttributeKey11Probe Type
AttributeKey01, AttributeKey12Min Temperature (° F)
AttributeKey02, AttributeKey13Max Temperature (° F)
AttributeKey03, AttributeKey14Min Temperature (° C)
AttributeKey04, AttributeKey15Max Temperature (° C)
AttributeKey05, AttributeKey16Temperature Accuracy
AttributeKey06, AttributeKey17Connector Type
AttributeKey07, AttributeKey18Sheath material
AttributeKey08, AttributeKey19Sheath Length (in)
AttributeKey09, AttributeKey20Cable Type
AttributeKey10, AttributeKey21Cable Length (in)
CategoryL1Test Equipment
CategoryL2Leads & Probes
CategoryL3Digi Sense WD-93822-18
ConditionNEW
Extra Product NameOrder WD-93822-18 by Digi Sense RTD Bendable Probe, 4ft SS Braid Cable - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWD-93822-18
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Digi-Sense, WD-93822-18, RTD Bendable Probe, Length 18", Diameter .125", 4ft SS Braid Cable </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Designed to Measure Temperature in a Confined Space. </li> <li>The first 3&rdquo; of the probe tip are not to be bent. </li> <li>Time Constant: 3 seconds or greater. </li> </ul> <p>Maximum error for probe assembly is +/-1.1&deg;C + 0.12% of reading below 300&deg;F, +/-0.35% of reading above 300&deg;F. Alpha coefficient is 0.003850 omega / omega / &deg;C (DIN IEC 751). Resistance at ice point (0&deg;C) is 100 omega. Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handle are rated to 220&deg;F (104&deg;C); PVC handle are rated to 200&deg;F (93&deg;C); Stainless Steel handle are rated at 450&deg;F (232&deg;C); Mini Connector are rated to 392&deg;F (200&deg;C). </p>
tierPrice1154.8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWD-93822-181-211 @ $154.80
MegadepotWD-93822-18111 @ $139.80
globaltestsupply.comWD-93822-1812 to 3 Weeks1
