Order 172C-0404 by Dixon Valve Compression Male Branch Tee - US Mega Store

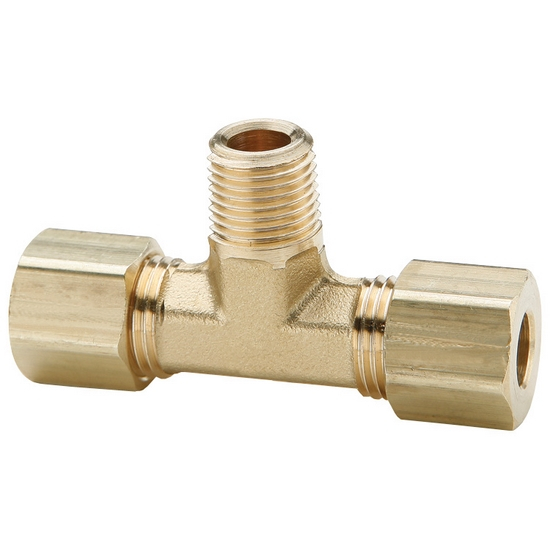

1/4" x 1/4" Brass Male Branch Tee Compression Fitting

<p><strong>Applications</strong></p><ul><li>Use with copper, aluminum and thermoplastic tubing. </li><li>Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.</li></ul><p><strong>Specifications</strong></p><ul><li>Underwriter's Laboratories listed for flammable liquid</li><li>SAE J-512</li><li>ASA</li><li>Reference SAE 060425 BA</li></ul><p><strong>Installation</strong></p><ul><li>No flaring, soldering or other preparation of tubing necessary to assemble</li><li>Slide nut, then sleeve onto tubing. The thread end of the nut must face out.</li><li>Insert tube into the fitting. Be sure the tube is bottomed on the fitting shoulder.</li><li>Assemble nut to body, and tighten hand-tight. Then follow the number of appropriate wrench turns for the given size.</li></ul><p><strong>Note</strong></p><ul><li>Temperature and type of tubing used are important factors in working pressure ranges. Pressure rating given at 73&#176;F. For thermoplastic tubing, see manufacturers recommendation for pressure range.</li><li>Temperature ranges are given for use with soft metal tubing. For thermoplastic tubing, see manufacturers recommendation for tubing temperature range.</li></ul><p><strong>Safety notes</strong></p><ul><li>Not recommended for steel tubing</li><li>Not recommended for applications using gaseous media.</li><li>WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.</li></ul>
