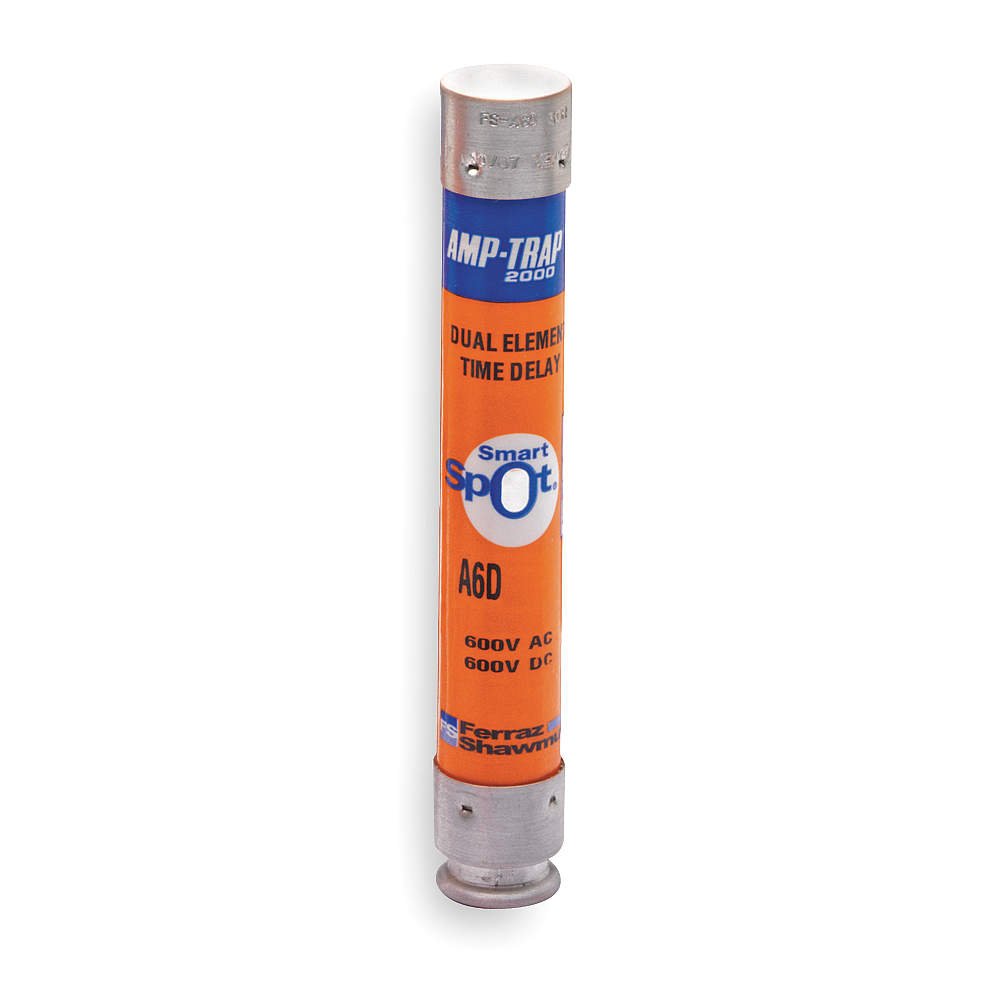

A6D17-1/2R 600V 17-1/2A RK1 TD FUSE

'Fuse, 17-1/2A Fuse Amps, Indicating, A6D-R Series, 600VAC/DC Fuse Voltage Rating, Time Delay, RK1 Class, Dual Element, Body Material Polyester, Body Style Cylindrical, Rejection, Fuse Interrupt Rating 200kA at 600VAC, 100kA at 600VDC, Length 5 In., Diameter 13/16 In., Functionally Equal To Bussmann LPS-RK-SPI, Littelfuse LLSRK-ID, Standards UL 248-12 File E2137, DC UL 248, CSA C22.2 No. 248.12'

<p><ul><li>The best choice for upgrading existing applications of 600 amps and less, the A6D offers excellent current-limiting performance for short circuits and time delay for overloads</li><li>Its dimensions allow for simple upgrades of existing Class H, Class K and Class RK5 fuses</li><li>When it comes to low current-limiting thresholds and low let-through energies, there is no better alternative than the A6D</li><li>When applied so that the fuses will be current limiting for arc fault currents, incident energy at working distances of 18” are typically less than 0.25 cal/cm²</li><li>Certified by starter manufacturers to provide Type “2” (No-Damage) short circuit protection for NEMA starters</li></ul></p> ,<p><b>Specifications: </b><ul><li>Fuse Type:-Time Delay / Current Limiting </li><li> Fuse Class:-RK1 </li><li> Mounting Type:-Ferrule </li><li> Ampere Rating:-17.5 A </li><li> Volt Rating:-600V AC </li><li> Overall Length:-5 in </li><li> Diameter:-.8125 in </li><li> Series:-A6D-R </li><li> UL Approvals:-Standard 248-12 </li><li> CSA Approval:-Standard C22.2 No.248.12 </li><li> Body Type:-Fiberglass </li></ul></p>
