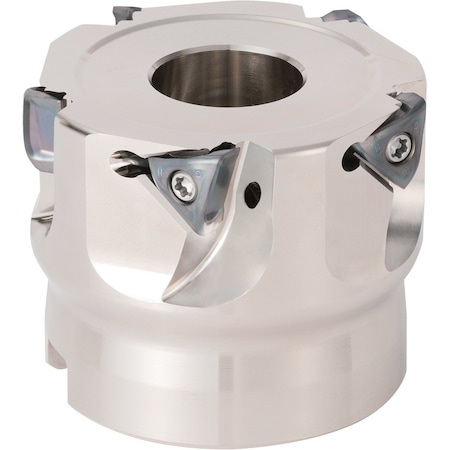

Kyocera

<ul><li>New generation of high performance, economical, multi-function milling</li><li>Low cutting forces and higher rigidity for excellent chatter resistance</li><li>Longer insert and holder tool life</li><li>Newly developed triangular inserts provide low cutting forces and increased rigidity</li><li>Application: Shouldering, Facing, Chamfering</li></ul><p>Product Details:</p><ul><li>Cutter Style: MEV</li><li>Hand of Holder: Right-Hand</li><li>Series: MEV</li><li>Lead Angle (Degree): 90</li><li>Bore Diameter: Metric</li><li>Cutter Pitch: Standard Pitch</li><li>[DC] Cutting Diameter (mm): 40.00</li><li>NONENONE</li><li>NONENONE</li><li>[DCB] Connection Bore Diameter (mm): 16.00</li><li>[DCCB1] Connection Counterbore Diameter 1 (mm): 15.00</li><li>[DCCB2] Connection Counterbore Diameter 2 (mm): 9.00</li><li>[LF] Functional Length (mm): 40.00</li><li>[CBDP] Connection Bore Depth (mm): 19.00</li><li>NONENONE</li><li>[KDP] Keyway Depth (mm): 5.60</li><li>[KWW] Keyway Width (mm): 8.40</li><li>[APMX] Maximum Depth of Cut (mm): 6.00</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>NONENONE</li><li>[A.R.] Axial Rake Angle (Degree): +17</li><li>[R.R.] Radial Rake Angle (Degree): -36</li><li>[RMPX] Maximum Ramping Angle (Degree): 0.5</li><li>Number of Inserts: 5</li><li>Number of Flutes: 5</li><li>Number of Stages: 1</li><li>Maximum RPM: 20,000</li><li>Multi-Use Tool: Yes</li><li>Coolant Through: Yes</li><li>Insert Holding Method: Screw</li><li>Toolholder Material: Steel</li><li>Application: Shouldering, Facing, Slotting, Ramping, Pocketing, Helical Milling, Plunging</li><li>Unit of Measure: Metric</li><li>Compatible Insert Hand: Right-Hand</li><li>Compatible Inserts (Partial): TOMT06…</li></ul><p>MEV High Performance Milling Brochure</p>
