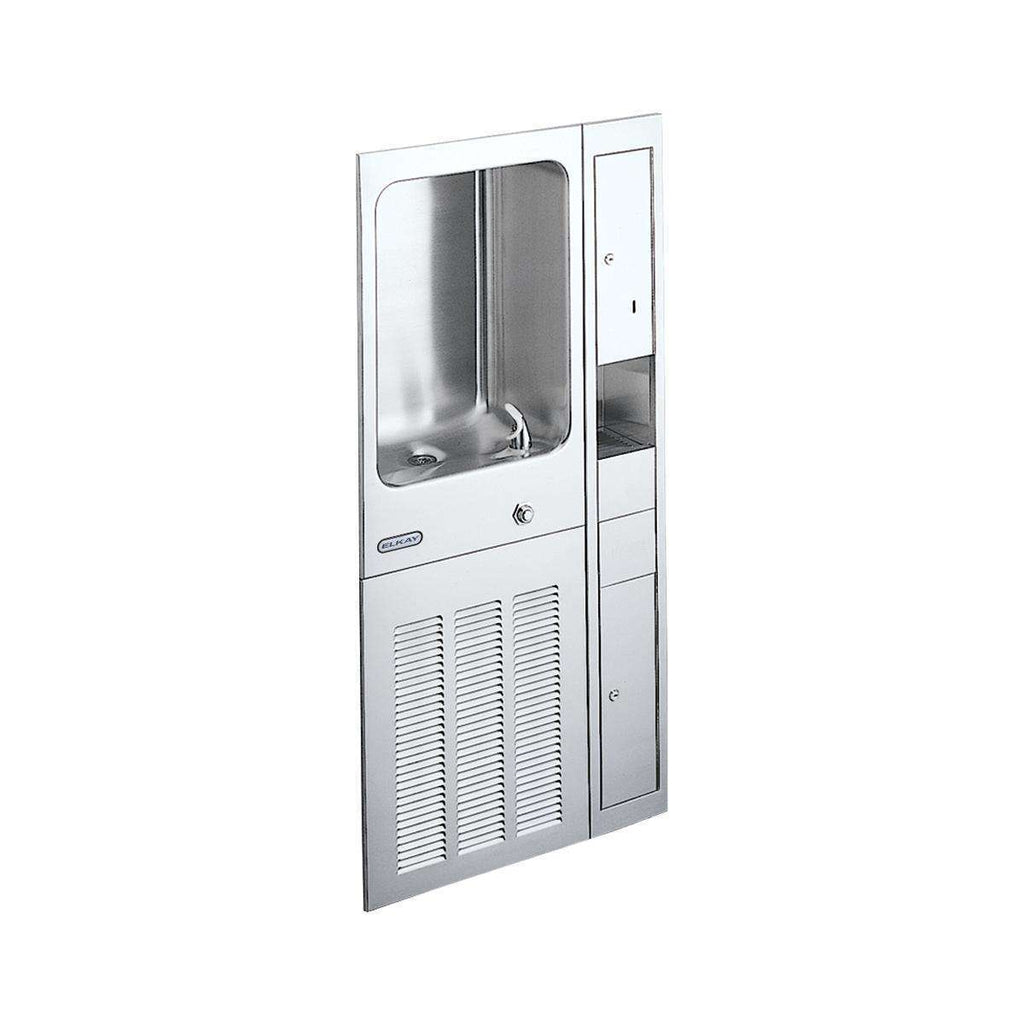

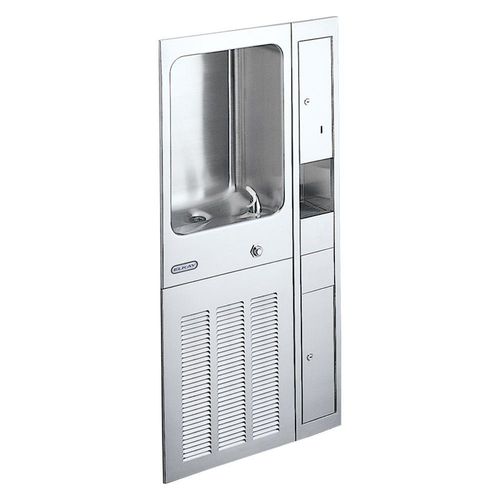

Product Features: Covered under Elkay's 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components Single station drinking fountain with self contained cooler Electric refrigeration is a combination tube-tank running single phase Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler Cup dispenser holds 100 4 oz. cups and water dispenser is push back self closing type Front Push-button control for faucet activation Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure Construction: #16 gauge, 304 series nickel bearing stainless steel basin polished to a lustrous satin finish Contoured basin offers large area to minimize splashing when in use Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position Stainless Steel Basin - One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners Cabinet design allows for flush to wall mounting. No recess space is required Cooling System: Motor Compressor - Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug Condenser - Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated Cooling Unit - Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material) Refrigerant Control - Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance Temperature Control - Enclosed adjustable thermostat is factory preset
