LEESON ELECTRIC . 174656.00

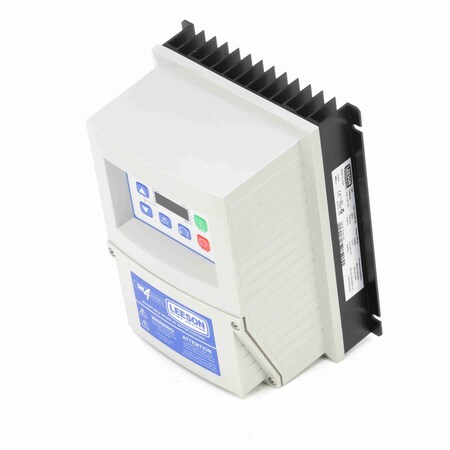

<p>174656.00, LEESON, VARIABLE FREQUENCY DRIVE,</p><p><strong>APPLICATIONS: </strong>Indoor use only inverter that is designed to be used with vector duty motors Typical applications would include: packaging machinery, food processing, conveying systems, machinery and HVAC systems. <strong><em>(Use with three phase 230V motor)</em></strong></p><p><strong>FEATURES:</strong></p><ul><li>Convection cooled</li><li><strong>Enclosure:</strong> NEMA 4, IP65, -10 to 55°C, derate per °C above 40°C</li><li><strong>Standard Features:</strong> Easy Set-up and Operation: Program the Vector control in one of four convenient ways: <ul><li>From the front of the drive</li><li>The optional remote keypad</li><li>A PC Using TechLink Software</li><li>The innovative EPM Programmer.</li></ul></li><li><strong>Modes of operation: </strong><ul><li>Open Loop Flux Vector (Speed or Torque)</li><li>V/Hz (constant or variable)</li><li>Enhanced V/Hz with Auto-tuning</li></ul></li><li><strong>Easy to Use Keypad &amp; Display 6-Button Interface: </strong><ul><li>Start</li><li>Stop</li><li>Forward/Reverse</li><li>Scroll Up</li><li>Scroll Down</li><li>Enter/Mode</li></ul></li><li><strong>Vivid Illumination: </strong><ul><li>4 digit LED display</li><li>Easy to read from a distance</li><li>Movable Decimal Point</li></ul></li><li><strong>Acceleration/Deceleration Profiles: </strong><ul><li>Two Independent Accel Ramps</li><li>Two Independent Decel Ramps</li><li>Linear or S-Type</li><li>Auxiliary Ramp-to-Stop</li></ul></li><li><strong>Output Frequency: </strong><ul><li>500 Hz Std., 1000 Hz Optional</li></ul></li><li><strong>Selectable Logic Assertion: </strong><ul><li>Positive Logic Input (PNP current sourcing)</li><li>Negative Logic Input (NPN current sinking)</li></ul></li><li><strong>Multiple Braking Functions </strong></li><li><strong>Loss of Follower Management </strong></li><li><strong>Speed Commands:</strong> Keypad, Jog, Floating Point Control</li><li><strong>Voltage:</strong> Scalable 0-10 VDC</li>
