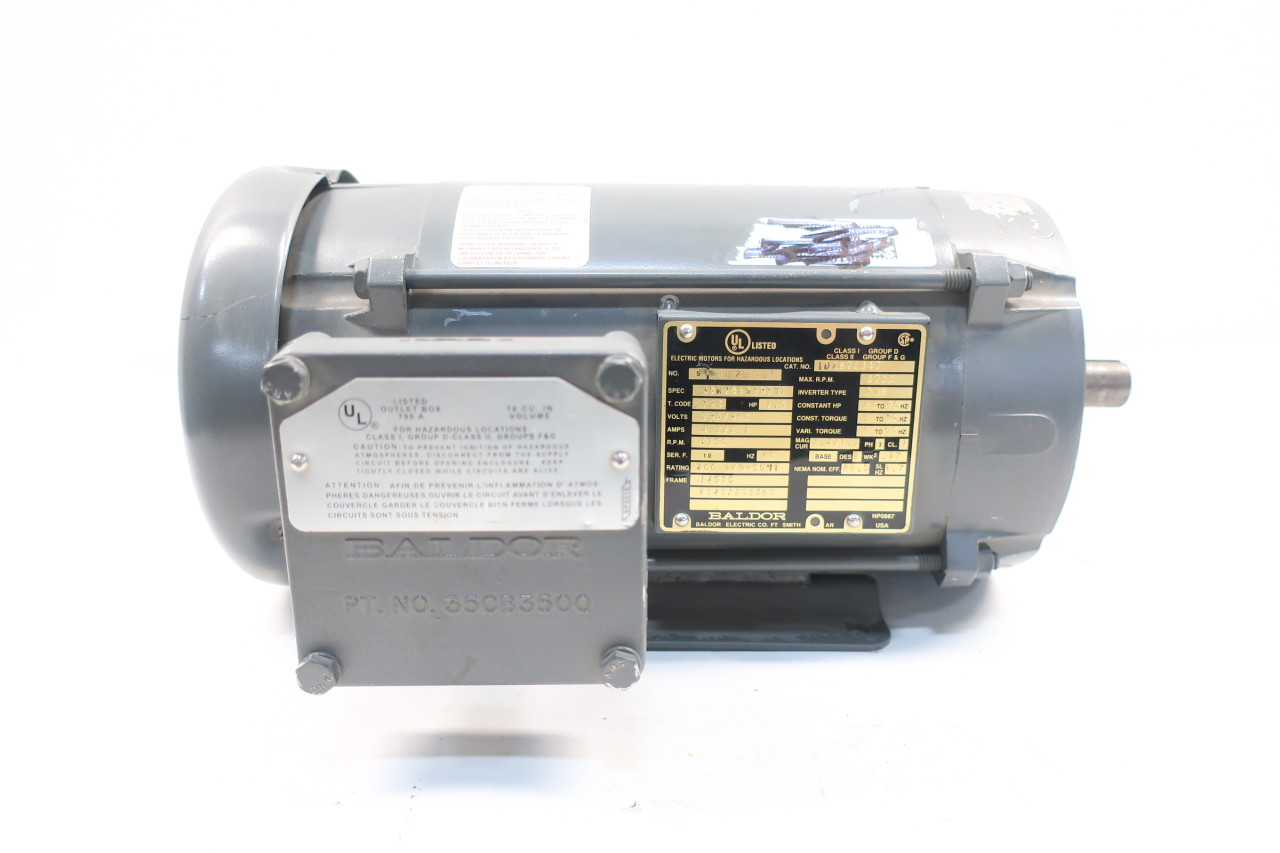

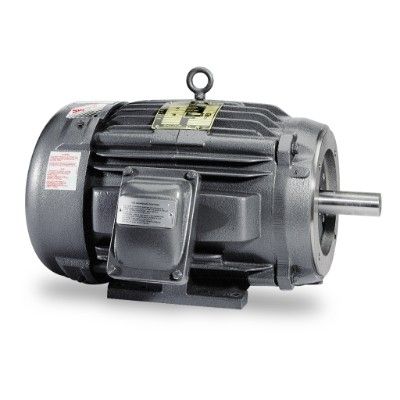

IDXM7034T 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 3526M, XPFC

Baldor 1.5HP,1760RPM,3PH,60HZ,145TC,3526M,XPFC (IDXM7034T)

Baldor Electric, IDXM7034T, 1.5HP, 1760RPM, 3PH, 460V;230V, 145TC Frame, C-Face Flange, Foot Mount, TEFC, Explosion Proof Motor

Baldor IDXM7034T1.5HP 1750RPM 3PH 60HZ 145TC X3528MXPFC

<p><b>Specifications: </b><ul><li>Motor Category:-Inverter Duty Motor - Explosion Proof / Hazardous Location </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-1-1/2 hp, 1.50 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-230/460 V </li><li> Frame Size:-145TC </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed/C-Face Flange </li><li> Thermal Protection:-Thermostat </li><li> Full Load Current:-2.10 A </li><li> Full Load Efficiency:-86.50 % </li><li> Amps @ Voltage:-4.4 A @ 230 V; 2.2 A @ 460 V </li><li> Volts @ Frequency:-230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-0.88 in </li><li> Overall Length (C-Dimension):-15.21 in </li><li> Warranty:-2 Year Warranty </li><li> Bearing Type:-Ball </li><li> NEMA Design Class:-B </li><li> Service Factor:-1.00 </li><li> Frame Material:-Steel </li><li> Insulation Class:-F </li><li> IP Rating:-44 </li><li> Standards Met:-UR, CSA </li><li> Harmonization Code:-8501.52.4000 </li><li> Weight:-53.00 lbs </li><li> Applications:-Designed for Variable Speed, Foot or Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures. </li><li> Additional Details:-UL and CSA approved for hazardous locations. Division 1, Class I, Group D, Class II, Groups F &a; G, Temperature Code T3C (160°C) 10:1 CT, 10:1 VT. Heavy gauge steel frame and cast conduit box construction. Class F insulation, 1.0 service factor, normally closed thermostats. All ratings constant horsepower 60 to 90 Hz. Not encoder adaptable. Meets NEMA MG 1, Part 31. </li></ul></p>
