Service Caster

Service Caster . SCC-TS20S314-SPUS-PLB-34212-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute00, Attribute11Threaded Stem
Attribute011-1/4"
Attribute024-1/8"
Attribute03Solid Polyurethane
Attribute04, Attribute152-1/2"
Attribute053/4"-10 x 2-1/2" Threaded Stem
Attribute06Posi Lock Brake
Attribute07Plain Bore
Attribute08Bright Zinc Plated Finish
Attribute093"
Attribute1010
Attribute12, Model, ModelNumber, Model_numberSeries #20
Attribute1360-65D
Attribute14-45 degrees F to 550 degrees F
Attribute163/4"
Attribute17Blue
Attribute181200
Attribute194 Swivel
Attribute20, countryOfOriginUnited States
AttributeKey00Caster Stem Type
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03Wheel/Tread Material
AttributeKey04, length_AttribStem Length
AttributeKey05Thread Size
AttributeKey06Caster Brake Type
AttributeKey07Wheel Bearing Type
AttributeKey08Finish
AttributeKey09Wheel Dia.
AttributeKey10Thread Pitch
AttributeKey11Mounting Type
AttributeKey12Model
AttributeKey13Durometer
AttributeKey14Caster Temp. Range
AttributeKey15Thread Length
AttributeKey16Stem Dia.
AttributeKey17Wheel Color
AttributeKey18Load Capacity
AttributeKey19Caster Sub-Type
AttributeKey20Country of Origin (subject to change)
DimensionUnitinch
UPC734005110708
WeightUnitlbs
atoms3
extendedLead26
extendedQty-2
height4.125
jsonUrlData924526ffbdad25e5923b
length2.5
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-TS20S314-SPUS-PLB-34212-4
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG207384795
tierPrice1155.05
urlhttps://www.zoro.com/service-caster-3-inch-solid-polyurethane-wheel-swivel-34-inch-threaded-stem-caster-set-with-brake-scc-scc-ts20s314-spus-plb-34212-4/i/G207384795/
width1.25
ASINB0BQCL83B3 B0BQRXKGQT
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB0BQCL83B3
Bullet_pointAll casters feature a 3/4" diameter (10 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
ClassificationId383662011 511228
Color4 Swivel - Posi Lock Brakes - Blue
Currency, CurrencyCodeUSD
Decimal_value3.0
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0734005110708 734005110708
FetchTime1682531818 1704837035
Height, Width1000 500 75
IdentifierTypeEAN UPC
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_nameSolid Polyurethane Swivel Threaded Stem Caster Set of 4 w/3" x 1.25" Blue Wheels and 3/4" Stems - Includes 4 with Posi Lock Brakes - 1200 lbs Total Capacity - Service Caster Brand
Item_type_keywordstem-casters
Linkhttps://m.media-amazon.com/images/I/41C5mpfi3HL._SL75_.jpg https://m.media-amazon.com/images/I/41C5mpfi3HL.jpg https://m.media-amazon.com/images/I/41eDj3RvX5L._SL75_.jpg https://m.media-amazon.com/images/I/41eDj3RvX5L.jpg https://m.media-amazon.com/images/I/51JvS2+qmbL.jpg https://m.media-amazon.com/images/I/51UDhURXXjL._SL75_.jpg https://m.media-amazon.com/images/I/51UDhURXXjL.jpg https://m.media-amazon.com/images/I/51t-HT6MfuL._SL75_.jpg https://m.media-amazon.com/images/I/51t-HT6MfuL.jpg https://m.media-amazon.com/images/I/51tIdGhA20L.jpg https://m.media-amazon.com/images/I/61SJOnarbeL.jpg https://m.media-amazon.com/images/I/71CULEFi8yL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383662011
List_price0.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypePolyurethane
Name, ThemeCOLOR_NAME/SIZE_NAME
NumberOfItems, Number_of_items4
ParentAsinsB0BQRXKGQT
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel 3/4" threaded stem casters with posi lock brakes, 3” diameter by 1-1/4” wide solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2022-12-16T15:21:33.485Z
Rank1148443 2301 479319
Size3" Wheel 3.0
SkuSERVICE CASTER SCC-TS20S314-SPUS-PLB-34212-4
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Industrial & Scientific Solid Polyurethane Swivel Threaded Stem Caster Set of 4 w/3" x 1.25" Blue Wheels and 3/4" Stems - Includes 4 with Posi Lock Brakes - 1200 lbs Total Capacity - Service Caster Brand Stem Casters
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41C5mpfi3HL._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight5.8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG207384795111 @ $155.05

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

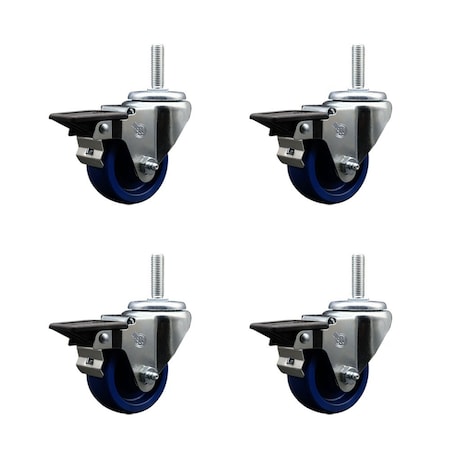

Solid Polyurethane Swivel Threaded Stem Caster Set of 4 w/3" x 1.25" Blue Wheels and 3/4" Stems - Includes 4 with Posi Lock Brakes - 1200 lbs Total Capacity - Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel 3/4" threaded stem casters with posi lock brakes, 3” diameter by 1-1/4” wide solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
  • All casters feature a 3/4" diameter (10 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries #20
Part numberSCC-TS20S314-SPUS-PLB-34212-4
Items per pack4
LabelService Caster
ManufacturerService Caster
