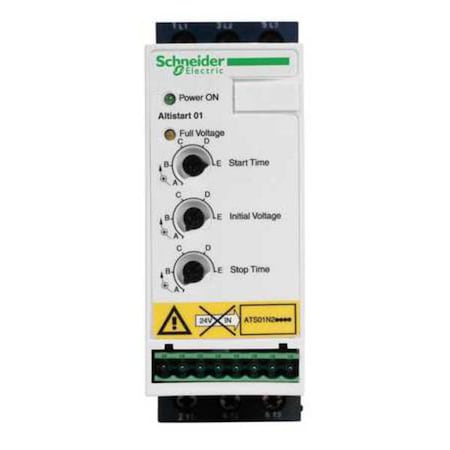

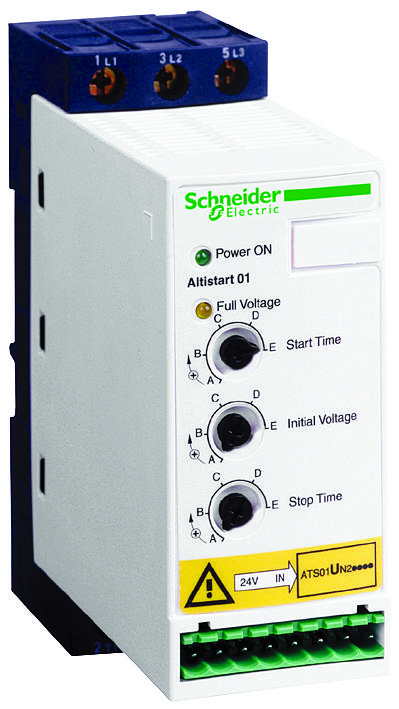

Schneider Electric Motor Starter, 3-Phase, 240Vac, 12A - ATS01N212LU

The Schneider Electric soft start helps adjust current inrush to protect motors from mechanical shock and stress during motor start-ups and helps reduce utility costs. The Altistart soft starter sets both initial voltage and ramp-up timing. For use with TeSys U-line (no separate control voltage required), GV2, GV3, or other motor starters.<br /><br /> Item: Soft Start<br /> Input Voltage: 208 to 240VAC<br /> Output Current: 12A<br /> With Bypass / No Bypass: With Bypass<br /> HP @ 3 Phase - 240V: 3<br /> Inputs/Outputs: 2 or 3 Wire Control, Fault Relay (Also for Isolation Contactor Control), "up to speed" Logic Output<br /> Phase: 3<br /> Enclosure Rating: NEMA 1<br /> HP @ 3 Phase - 208V: 3<br /> Output Voltage: 208 to 240VAC<br /> Control Voltage: 110 to 240VAC<br /> IP Rating: 00<br /> Ramp Time: 1 to 10 sec.<br /> Start Type: Integrated Boost/Kickstart<br /> Stop Time: 5 sec. or 10 sec.<br /> Application: Constant and Variable Torque<br /> Protects: 3 Phase Motors Rated for 6 to 32A at 230,400 & 460 Volts<br /> Includes: LED display two:Power ON" and "Full Voltage" (up to speed)"<br /> Height: 4.88"<br /> Width: 1.77"<br /> Depth: 4.45"<br /> Starting Torque: 30% to 80% of Starting Torque Equal to Line Supply Voltage<br /> Display: No<br /> Standards: IEC 60947-4-2, UL, CSA, CCC, C-TICK AND CE
