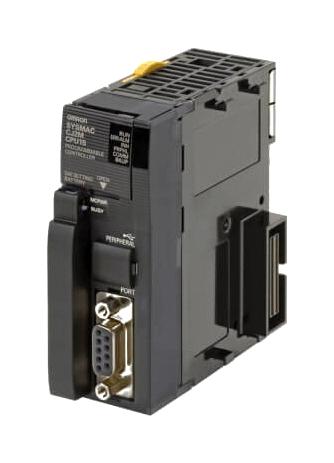

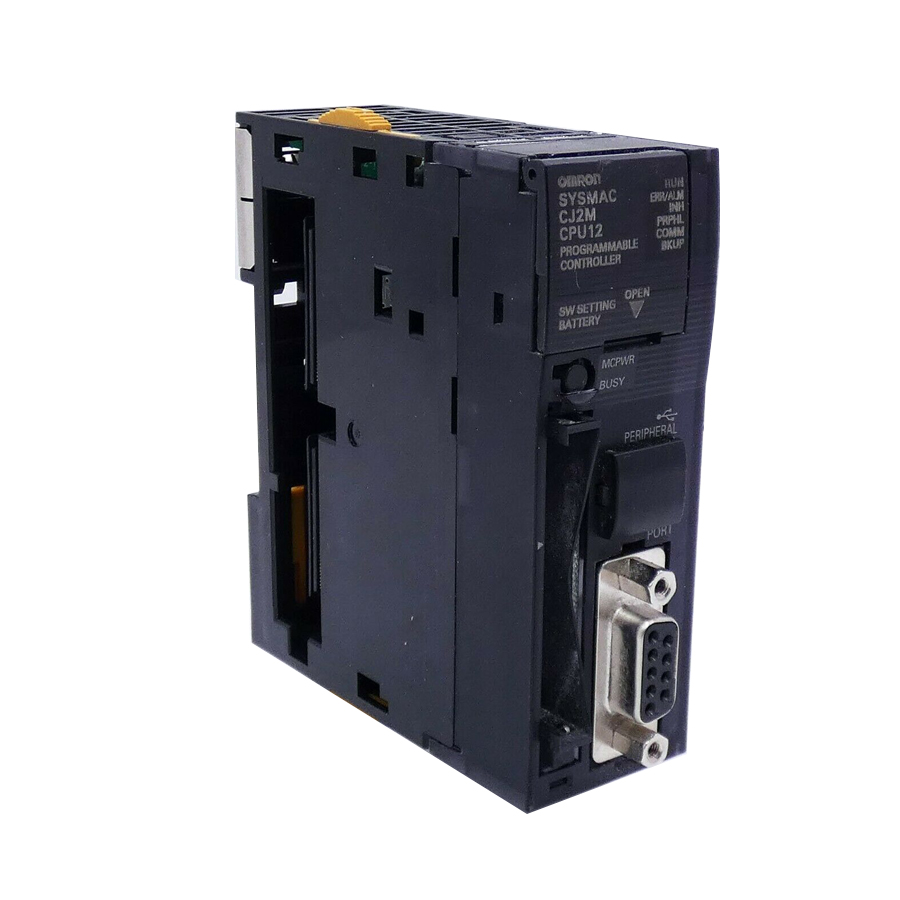

Omron Automation . CJ2MCPU12

Programmable Logic Controller With A Proven Record Great For Basic Machine Automation

[Enclosure] Mounted in a panel <br />[Grounding] Less than 100 Ohm <br />[Weight] 130g or less <br />[Current Consumption] 5 VDC, 0.5 A <br />[Operation Environment] <br />Ambient Operating Temperature: 0 to 55CEL <br />Ambient Operating Humidity: 10% to 90% (with no condensation) <br />Atmosphere: Must be free from corrosive gases. <br />Ambient Storage Temperature: - 20 to 70 CEL(excluding battery) <br />Altitude: 2,000 m or less <br />Pollution Degree: 2 or less: Conforms to JIS B3502 and IEC 61131-2. <br />Noise Immunity: 2 kV on power supply line (Conforms to IEC 61000-4-4.) <br />Overvoltage Category: Category II: Conforms to JIS B3502 and IEC 61131-2. <br />EMC Immunity Level: Zone B <br />Vibration Resistance: Conforms to IEC60068-2-6. <br />5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz <br />Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) <br />Shock Resistance: Conforms to IEC60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units) <br />[Applicable Standards] Conforms to cULus, NK, LR and EC Directives. <br />[I/O capacity/Mountable Units(Expansion Racks)] 2,560 points/ 40 Units(3 Expansion Racks max.) <br />[Program capacity] 10K steps <br />[Data memory capacity] 64K words <br />DM: 32K words <br />EM: 32K words x 1 banks <br />[LD instruction execution time] 0.04 microsecond <br />[Current consumption (A)] 5V: 0.5 <br />[Standards] UC1, N, L, CE<br><br><br>(1)
